ADC TrueNet Rack Mount Fiber Enclosures RMG Series Specification Sheet

TrueNet
®

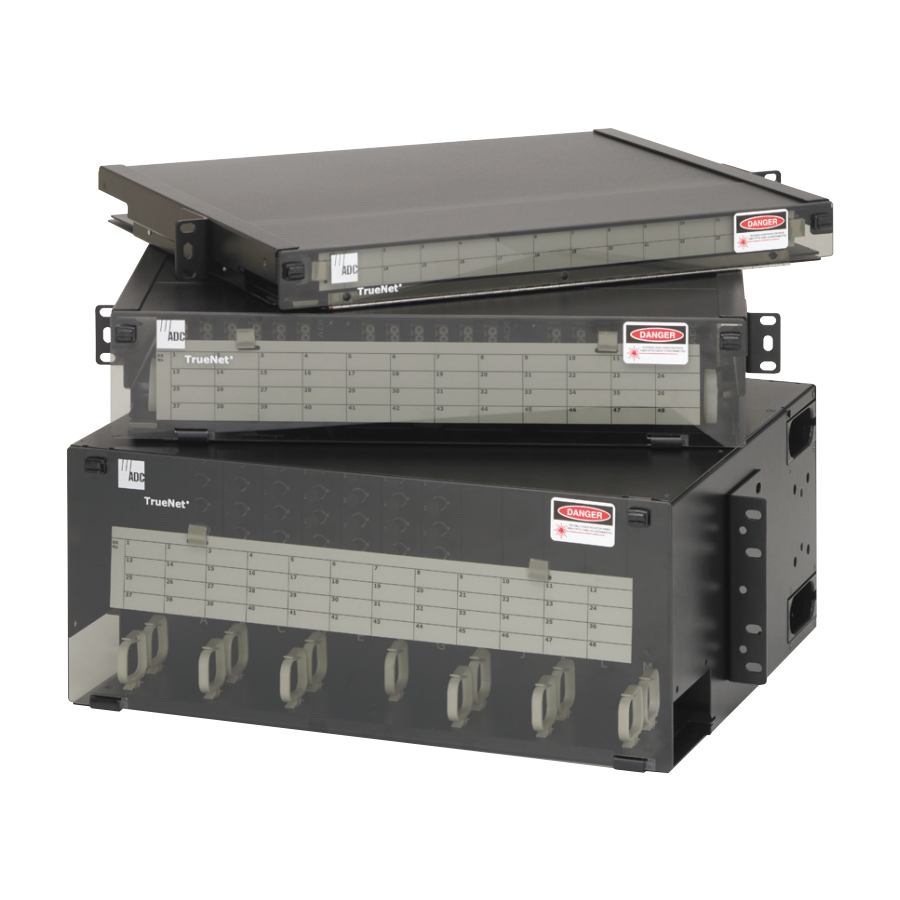

RMG Series Rack Mount Fiber Enclosures
ADC introduces the RMG Series rack mount fiber enclosures as an integral part of the TrueNet
product portfolio. ADC's RMG Series fiber enclosure provides rugged and durable protection for
patching or splicing of fiber cables. Especially designed to be user friendly, the slide-out design
and removable front and rear panels provide convenient access points.
ADC's RMG Series offers a cost effective and high-density rack mount fiber enclosure in one, two
and four rack unit sizes. Its modular design and flexible configurations make it very user friendly
and easy to install.
Features:
• 1 RU and 2 RU units contain sliding and removable front and rear access panels, providing
convenient access points
• Designed for 48.26 cm (19-inch) EIA rack or cabinet environment; optional brackets to
accommodate 58.42 cm (23-inch) rack or cabinet mounting
• Density: up to 72 terminations in 1 RU
• Low profile design with higher density for space limited applications
• User friendly design utilizing industry standard LSX/LGX modular adapter packs
• Side and rear cable entry points on back of panel supports a wide range of
deployment applications
Applications and Benefits:
• High-density makes suitable for telecommunications and equipment rooms
• Can be cabinet mounted for data center applications
