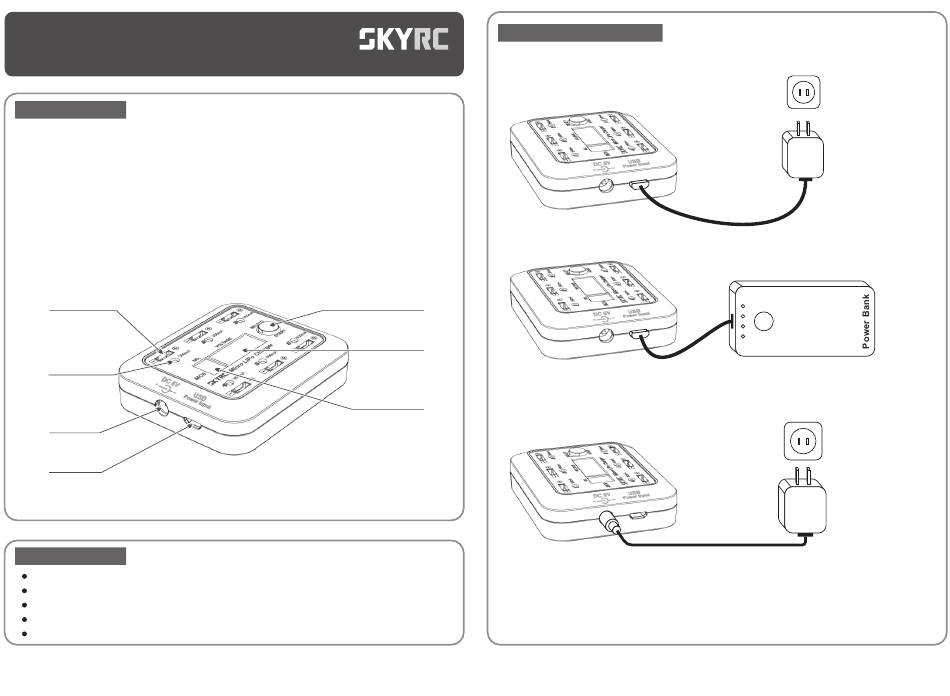

INSTRUCTIONMANUAL
MICROLIPO CHARGER
INTRODUCTION
Thank you for your choice of the Micro LiPo Charger. This unit is simple to use but its
operation does require some knowledge on the part of the user. Please read this entire
operating manual completely before using this product, as it covers a wide range of
information on operating and safety.
Micro LiPo Charger employs the circuit that features six totally independent outputs
(350mA X 4 and 500mA X 2). It is designed for charging single cell LiPo. Insert the
battery lead to the connector in each slot, the charger will charge 6 batteries at the same
time. The cell voltage can be displayed in 3-digital LED indicator respectively.
Micro Battery
Connector Slot
Charging Status
LED Indicator
DC Input
Power Jack
6V
Micro USB Input
.
5V
/
2
1A
FEATURES
Six independent slots can be used at the same time for battery charging
Each slot can be used as a battery voltage checker
3-digital LED displays battery voltage
LED indicates charging status(Red: Charging Green: Full)
Charging current 350mA X 4 & 500mA X 2
MC6
SK-100102
Start/Stop Button
Battery Slot No. Select
Battery Voltage
Display
Battery Slot No.
Display
-1-
CHARGE PROCEDURES
Connecting Power Source
1. While using USB power adaptor
Insert the AC power adaptor into a wall socket.
Connect USB cable to the charger.
2. While using power bank
3. While using AC/DC switching power supply adaptor 6V/2A.
WARNING: Please make sure DC output voltage is 6V only, high voltage may damage this charger.
5V/2.1A
6V/2A
-2-
