Page 1: Table Of Contents
Block Diagram General Description Front Panel Rear Panel Internal Adjustments CP64S Connections ZR1 Remotes Recommended Calibration Procedure Example System: Restaurant Example System: Retail Store Sound Sound System Interconnection Limited Domestic Warranty Declaration of Conformity Schematics are downloadable at rane.com/cp64s.html 22281... -
Page 2: Important Safety Instructions
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by Rane Corporation could void the user's authority to operate the equipment. CAN ICES-3 (B)/NMB-3(B) - Page 3 • Consulter un revendeur ou un technicien radio / TV expérimenté. ATTENTION: Les changements ou modifications non expressément approuvés par Rane Corporation peuvent annuler l'autorité de l'utilisateur à manipuler cet équipement et rendre ainsi nulles toutes les conditions de garantie.
-
Page 4: Quick Start
VCA. When set to Pre-VCA, Zone Level, EQ and Limiter You may use one or two optional ZR1 Remotes (sold separately) with each CP64S. If you use the ZR1, wire it to the rear circuits act upon the Page. When summed Post-VCA, the Page is not influenced by Zone Level, EQ or Limiter circuits. -
Page 5: Block Diagram
CP64S COMMERCIAL PROCESSOR Block Diagram DEPTH -50dB -6dB LEFT PROGRAM ZONE 2 LINE 1 INPUT PAGE SELECTOR DUCKER ZONE 2 ZONE 6 dB Z2 LIMIT 0 dB 6 dB THRESHOLD EXPAND RIGHT PAGE +20dB -20dB ON/OFF Z2 PAGE ZONE 2... -
Page 6: General Description
Zones. The Priority detector features internal, adjustable • Priority Page Threshold and Release-Time controls. • Non-Priority Page The CP64S has two Zone outputs: Zone 1 is stereo: Zone 2 is • Priority Program mono. Each Zone features independent: • Non-Priority Program •... -

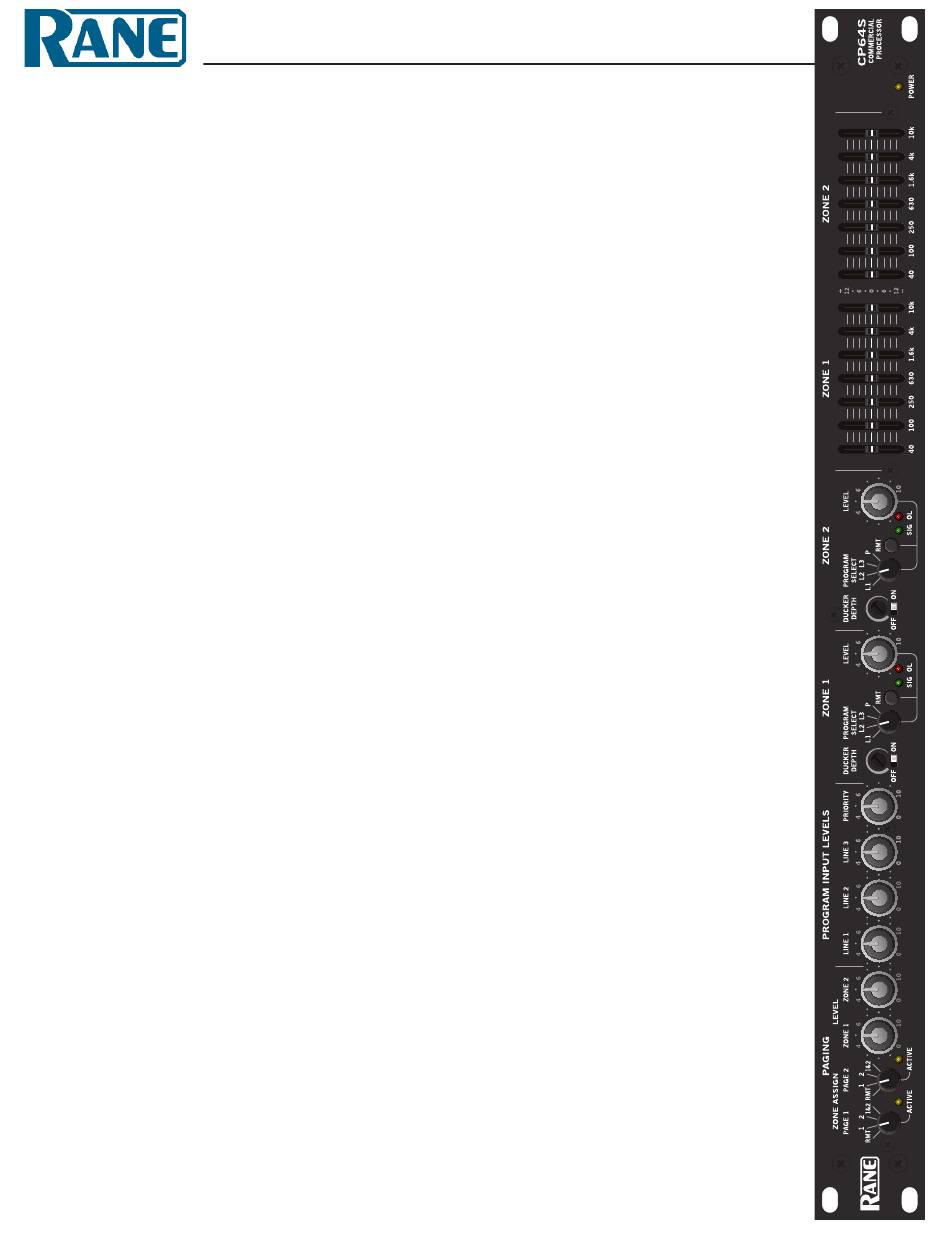

Page 7: Front Panel
Left and Right channels. These controls allow ±12 dB adjustment of seven ISO center frequencies on two octave centers. w POWER indicator lights when the CP64S is connected to its needed electrical power. See q on the rear panel. -
Page 8: Rear Panel
Z2 Z1 – 1 PAGING INPUT Euroblock connectors may be operated balanced or unbalanced. See "CP64S Connections" on page 10. If either page mic needs phantom power, see "Internal Adjustments" on page 9. 2 PAGE 1 and PAGE 2 INPUT MIC / LINE switches select 30 dB Input Pads when set to LINE. Phantom Power (if enabled) is disabled when LINE is selected. -
Page 9: Internal Adjustments
Do this before the set the appropriate switch to ON. If a Paging Input Mic / Line pad CP64S is installed in a rack or wired into a system. Make sure switch is set to LINE, Phantom Power is automatically defeated. -
Page 10: Cp64S Connections
For unbalanced operation, we recommend using two conduc- emergency paging. If “Pre” is selected, Paging signals sum with tor cable with shield. The cable is wired to the CP64S the same Program signals before the VCA. In this instance both Page as for balanced operation. -
Page 11: Zr1 Remotes
It is a to the CP64S. Connect each wire to the Euro connector by fully good idea to install the wiring, connect it to the remote assem- inserting it in the correct socket and tightening the screw. - Page 12 Euroblocks provide remote switching of Page Zone Assign for Rane Corporation does not provide or source cable. Please each of the Page 1 and Page 2 inputs. Two momentary (door- contact your local retail or wholesale outlet, not the factory. The bell) switches allow push-to-talk functionality.
-
Page 13: Recommended Calibration Procedure
Recommended Calibration Procedure The CP64S is a versatile instrument, allowing it to conform to lots of system applications. The result is complexity. For this reason, it is important be organized in system calibration. Once the internal switches are set and the system connected, take the time for proper calibration. - Page 14 Vr Vc Z2 Z1 …CP64S Calibration (continued) 1 Connect the power cord and verify the Power indicator lights. 2 Verify Zone Level controls are set to Maximum and that you have an active source for each of the Program Inputs you intend to use.
- Page 15 CP64S COMMERCIAL PROCESSOR Specifications Parameter Specification Limit Units Conditions/Comments MIC/LINE PAGING INPUTS Two mono All controls duplicated for both inputs ..Input Type Euroblock Balanced; Instrumentation amplifier ..RFI Filter ..Gain range +30 to +60 Continuously adjustable ..Frequency Response 30 Hz to 40 kHz...
- Page 16 CP64S COMMERCIAL PROCESSOR Parameter Specification Limit Units Conditions/Comments ..S/N re +4 dBu. BW: 20 Hz-20 kHz ..THD+N +4 dBu, 1 kHz, BW: 80 kHz ..Crosstalk 1 kHz, Rs: 25 Ω, ch/ch ..Output impedance Ω Each leg ..Maximum Output +24 dBu Ri: 2 kΩ...
-
Page 17: Example System: Restaurant
CP64S COMMERCIAL PROCESSOR Example System: Restaurant CP64S REMOTES OUTPUTS PROGRAM INPUTS Z2 PGM Z2 LEVEL Z2 EXPAND Z2 MONO REMOTE PAGE REMOTE 1 INPUT 1 PAGING INPUTS COMMERCIAL AUDIO ZONE ASSIGN WIRING PRIORITY WIRING LIMITER EQUIPMENT 24TJ 100-240 V ALL AUDIO AND... -
Page 18: Example System: Retail Store Sound
CP64S COMMERCIAL PROCESSOR Example System: Retail Store CP64S REMOTES OUTPUTS PROGRAM INPUTS Z2 PGM Z2 LEVEL Z2 EXPAND Z2 MONO REMOTE PAGE REMOTE 1 INPUT 1 PAGING INPUTS COMMERCIAL AUDIO ZONE ASSIGN WIRING PRIORITY WIRING LIMITER EQUIPMENT 24TJ 100-240 V... -
Page 19: Sound System Interconnection
Rane Technical Staff RaneNote 110 © 1985, 1995, 2006, 2007, 2011, 2015 Rane Corporation Interconnection-1... - Page 20 Ground Loops Almost all cases of noise can be traced directly to ground ible with unbalanced. The small physical nature and short loops, grounding or lack thereof. It is important to under- cable runs of completely unbalanced systems (home audio) stand the mechanism that causes grounding noise in order also contain these ground loop noise currents.
- Page 21 . He makes the simple point that it is absurd that Many manufacturers provide several tools for this task, you cannot go out and buy pro audio equipment from sever- including Rane. Consult your audio dealer to explore the al different manufacturers, buy standard off-the-shelf cable options available.
- Page 22 Make sure such units are solidly grounded by tying the chassis to an earth ground using a star washer for a reliable contact. (Rane always provides this chassis point as an external screw with a toothed washer.) Any device with a 3-prong AC plug, such as an...
- Page 23 Test & Measurement, Portland, OR, May 1992, pp. 82-92 (Audio Engineering Society, New York, 1992). 8. Macatee, RaneNote: “Grounding and Shielding Audio Devices,” Rane Corporation, 1994. 9. Philip Giddings, “Grounding and Shielding for Sound and Video,” S&VC, Sept. 20th, 1995.
- Page 24 To Input CABLE CONNECTORS MALE ¼" BALANCED ¼" OR 3.5mm UNBALANCED RCA BALANCED BALANCED XLR TRS (TIP-RING-SLEEVE) UNBALANCED EUROBLOCK TS (TIP-SLEEVE) FEMALE BALANCED XLR – – (NOT A TRANSFORMER, SHIELD NC NOR A CROSS-COUPLED OUTPUT STAGE) – – FEMALE BALANCED XLR (EITHER A TRANSFORMER SHIELD NC OR A CROSS-COUPLED...
- Page 25 MALE FEMALE 1=SHIELD 1=NC 2-CONDUCTOR SHIELDED CABLE 2=RED BLACK BLACK 2=RED 3=BLACK SHIELD 3=BLACK FEMALE T=RED 1=SHIELD 2=RED R=BLACK BLACK 2-CONDUCTOR SHIELDED CABLE BLACK S=NC 3=BLACK SHIELD FEMALE 1=SHIELD 1-CONDUCTOR SHIELDED CABLE T=RED 2=RED 3=NC SHIELD SHIELD S=SHIELD FEMALE 1=SHIELD 1-CONDUCTOR SHIELDED CABLE T=RED 2=RED...
- Page 26 S=BLACK SHIELD CROSS-COUPLED OUTPUT ONLY: CONNECT BLACK TO SHIELD AT THIS END AND SET GROUND LIFT SWITCH TO ‘GROUNDED’ (IF PRESENT). ©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5000 USA TEL 425-355-6000 FAX 425-347-7757 WEB rane.com Interconnection-8 DOC 102907...
- Page 27 This page intentionally left blank. Go ahead. Doodle.
-
Page 29: Limited Domestic Warranty
Rane agrees to supply all parts and labor to repair or replace defects covered by this limited warranty with parts or products of original or improved design, at its option in each respect, if the defective product is shipped prior to the end of the warranty period to any Rane authorized warranty repair facility in the U.S. - Page 30 New Product Registration. Fill out the warranty completely, being sure to include the model and serial number of the unit since this is how warranties are tracked. If your Rane product was purchased in the U.S.A., mail the completed card or register online with to Rane Corporation within 10 days from the date of purchase.
-
Page 31: Declaration Of Conformity
Manufacturer: Rane Corporation Address: 10802 47th Avenue West, Mukilteo WA 98275-5000 USA This declaration is issued under the sole responsibility of Rane Corporation. The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: 2014/35/EU... - Page 32 CP64S COMMERCIAL PROCESSOR...
