Eaton TSE80 Installation Manual

TSE80 - Colour Touchscreen
Installation guide
Planning the installation
TSE80 requires a minimum mounting depth of
22mm from the front wall surface plus room for
cable/s. Power is supplied by Power Over Ethernet
(PoE). PoE must meet the IEEE 802.3af standard.
TSE80 connects to the local network via a hard
wired Ethernet connection.

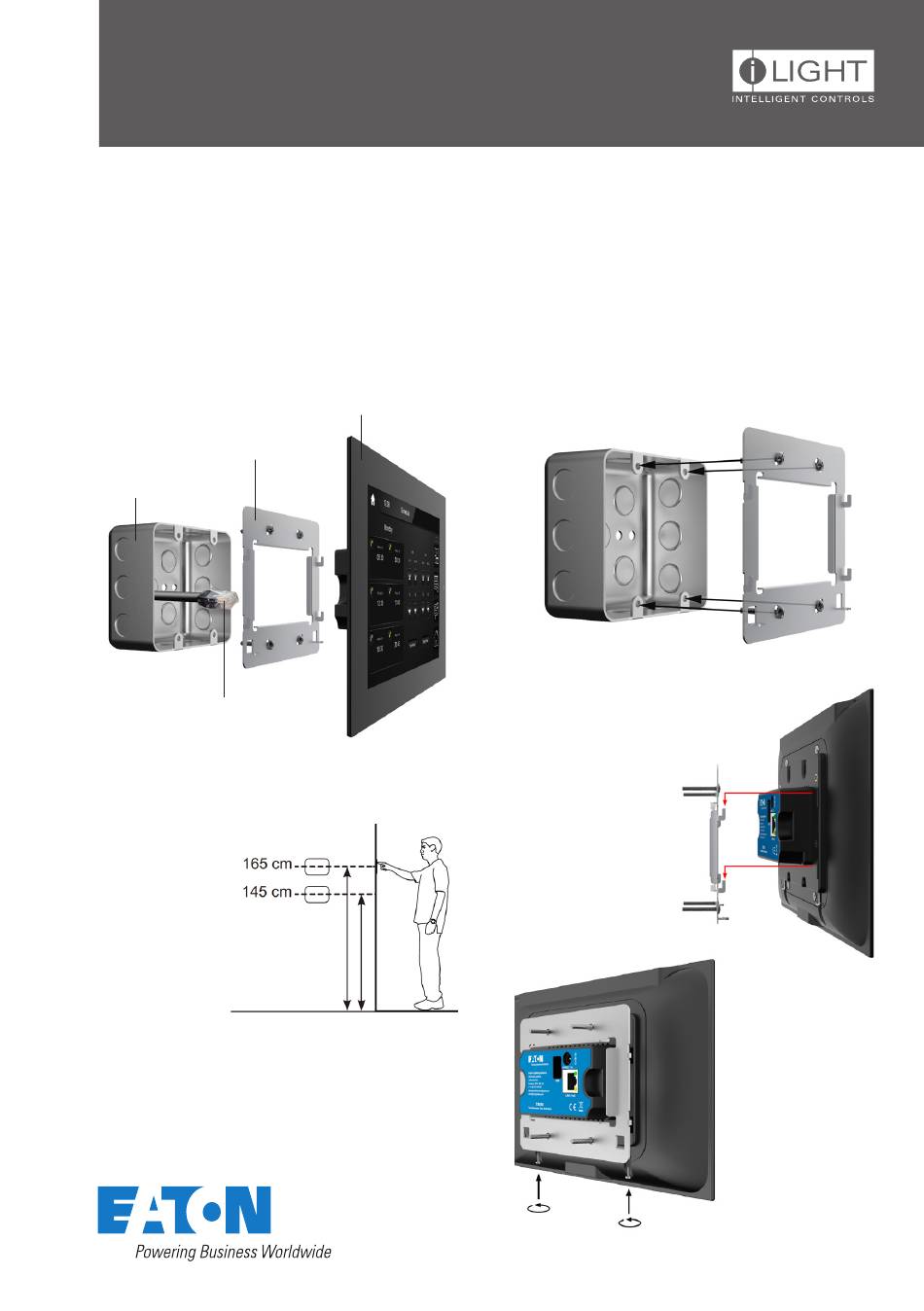

Overview
Mounting Bracket
Back Box
PoE and Data Connection (RJ45)
Mounting height
The recommend
mounting height
for the TSE80 is
145 cm -165 cm
above the finished
floor to the center
of the unit.
Installation
TSE80 has been designed to mount to a US NEMA
2 gang back box (Ref: Eaton TSE80 Back Box).
Installing the mounting frame
TSE80 includes a mounting frame that MUST be
used for this installation.
Using the included screws mount the mounting
bracket onto the back box and verify that the
components are level before tightening the captive
screws on the TSE80.
TSE80
Mounting the TSE80
Align the mounting
frame hooks with
the TSE80 mounting
slots and gently pull
the TSE80 unit down
the mounting bracket.
Make sure the mounting
hooks are properly
engaged.
Tighten the 2 captive screws
to secure the TSE80 to the
mounting bracket
