Installing Expansion Memory - 3Com CoreBuilder 9000 Installation Manual

4 16 MB E
XPANSION
Installing Expansion
Memory
M C I
EMORY ARD NSTALLATION
Follow these steps to remove the existing memory card from the
EME and to install the new 16 MB expansion memory card:
1 Locate the expansion memory card on the EME module printed
circuit board.
CAUTION: To avoid damage due to static discharge, handle the
EME module by the front panel or edges only.
2 Remove the 4 MB expansion memory card from the memory card
slot.
3 Insert the 16 MB expansion memory card into the expansion
memory card slot on the EME module. Press the memory card in
place so that it is firmly seated.
Figure 2 shows where to insert the expansion memory card in the
expansion memory card slot.
The memory card is keyed to ensure that you insert it correctly.

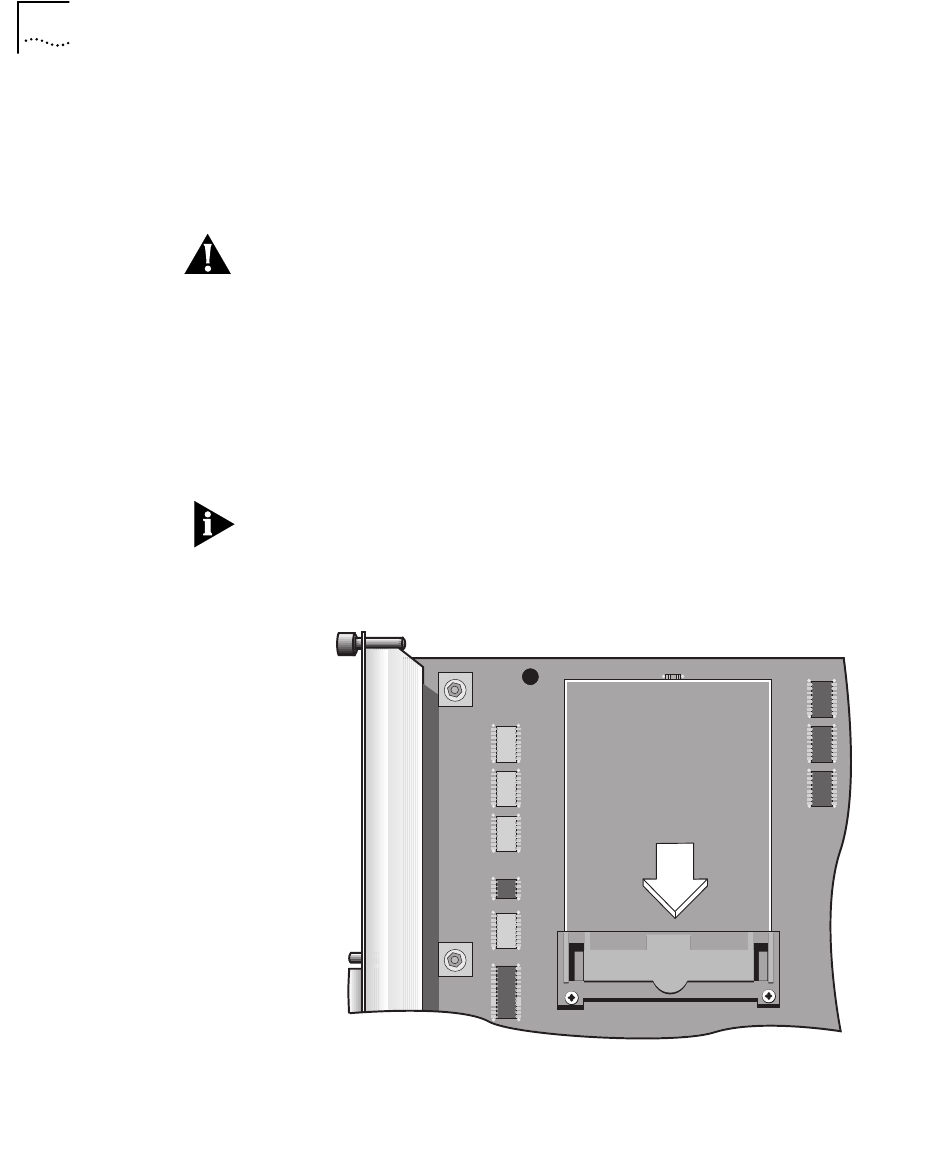

Figure 1 The Expansion Memory Card Slot
EME
Front Panel
G
UIDE
