6 16 MB E
XPANSION
M C I
EMORY ARD NSTALLATION

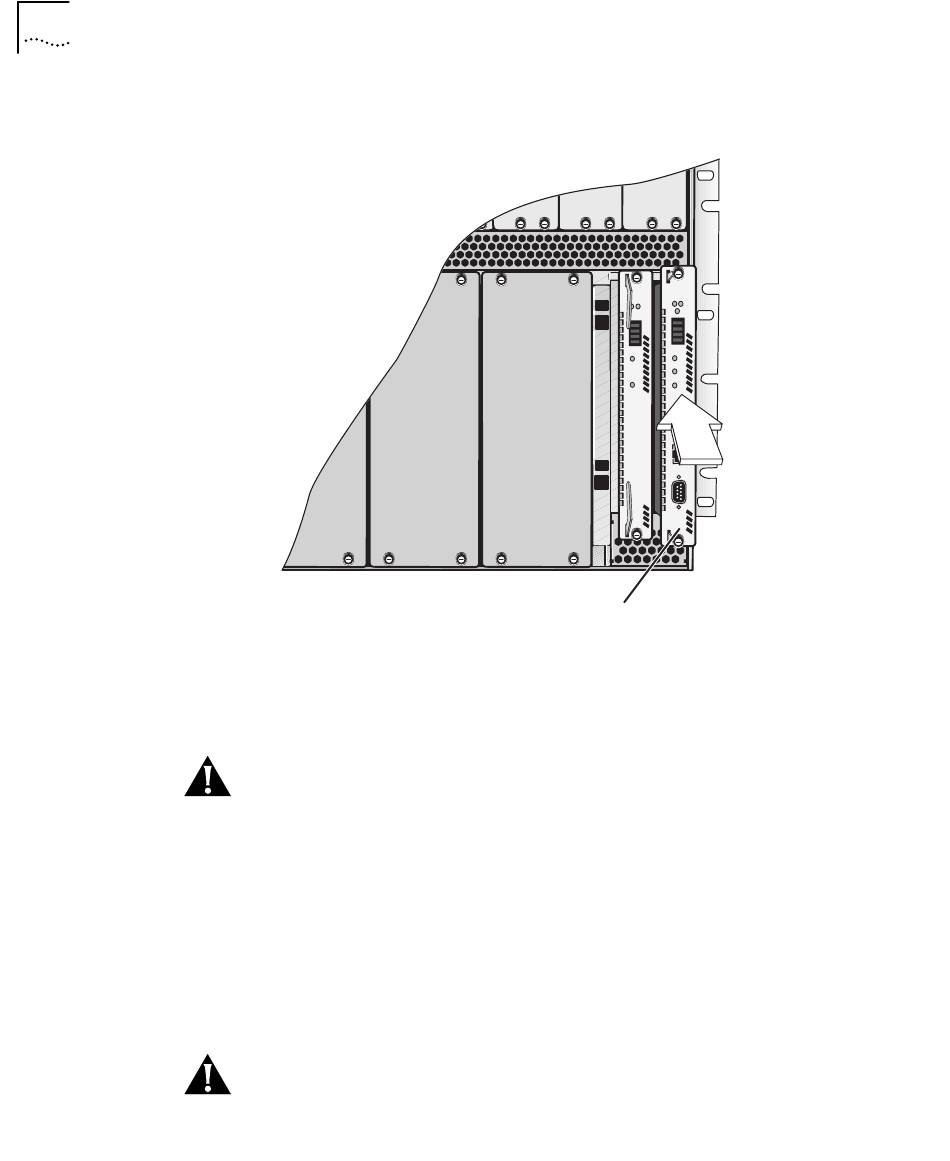

Figure 2 Installing the EME into a 16-slot CoreBuilder 9000 Chassis
5 To engage the EME connectors and backplane connectors, apply
pressure to the module front panel with one hand while you push
the ejector handles inward toward the front panel with your other
hand. You feel a slight resistance as the connectors engage.
CAUTION: If the resistance is too great, the EME connectors and
backplane connectors may not be aligned. Forcing the EME
inward can damage the module connectors or backplane
connectors. If necessary, remove and reinsert the EME, ensuring
that the connectors are properly aligned. Do not tighten the
spring-loaded screws to seat the module.
Ensure that the module remains fully seated in the backplane
connector while you close the ejector handles.
6 To secure the module to the chassis, use a flat-blade screwdriver
to tighten the spring-loaded screws to Torque Specification 3 to 5
inch-pounds.
CAUTION: To ensure adequate cooling airflow, install blank
faceplates over all empty slots.
G
UIDE
EME module
