Summary of Contents for INIM NRB100

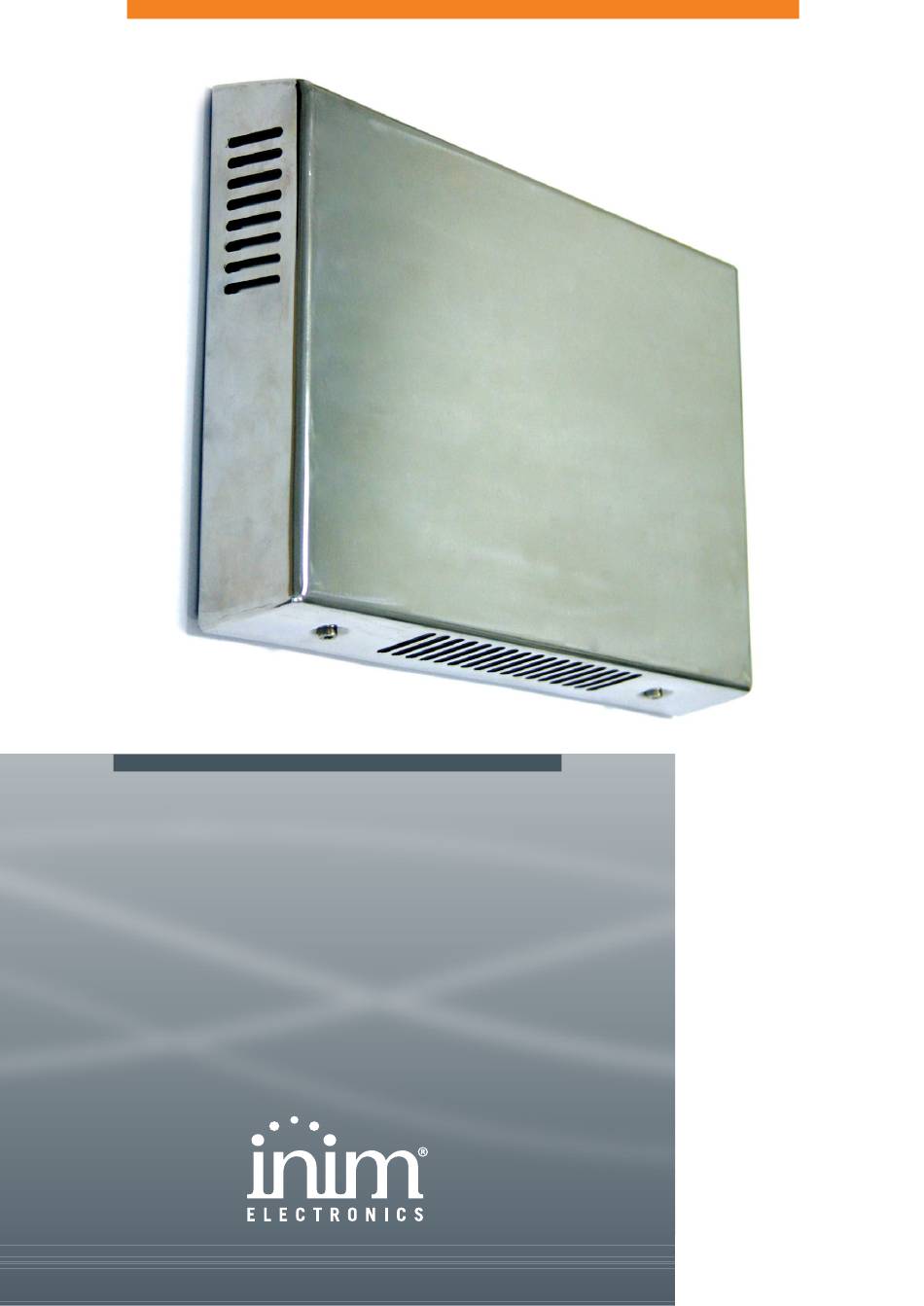

  • Page 1 NRB100 Installation and Programming Manual S E L F - P O W E R E D H O R N S T R O B E F O R O U T D O O R U S E...
  • Page 2: Table Of Contents

    NRB100 Installation and Programming Manual Table of contents Table of contents....... 2 Chapter 1 Overview .
  • Page 3: Chapter 1 Overview

    NRB100 Installation and Programming Manual Chapter 1 OVERVIEW The heavy duty NRB100 Hornstrobe unit is especially designed to allow maximum installation flexibility and durability. A microprocessor continuously monitors all the device parameters and assures high-reliability and first-rate performance. A tamper output with a configurable balance resistor permits full- integration with every type of system.
  • Page 4: Product Description And Models

    NRB100 Installation and Programming Manual Product description and models DESCRIPTION Self-powered outdoor hornstrobe FIRST YEAR OF 2010 PRODUCTION MAIN FEATURES • Power supply and alarm trigger input • Alarm trigger input (BELL) • Alarm trigger input (FLASH) • Trigger input for ancillary LED •...
  • Page 5: Chapter 2 General Description

    Installation and Programming Manual Chapter 2 GENERAL DESCRIPTION Box contents Inside the box you will find: • NRB100 Hornstrobe • 2 frontplate screws (4x22) • 3 wall plugs (screw 4x35) for mounting the backplate • 1 wall plug (screw 3.5x50) for tamper microswitch •...
  • Page 6 NRB100 Installation and Programming Manual Table 2: Description of parts Terminal board Programming button Battery wires Jumpers for tamper balance configuration STATUS LED - Red PRG LED - Green Red programming LEDs Strobe Open casing and Dislodgement tamper microswitch Frontplate...
  • Page 7 NRB100 Installation and Programming Manual WARNING! Do not touch the hornstrobe board while the Mains is connected. Electric shock risk! General description...
  • Page 8: Lights Signalling

    NRB100 Installation and Programming Manual Table 4: Tamper device Tamper screw Spacer Microswitch Screw location Microswitch-block location Rawplug Frontplate screw Frontplate screw location Lights signalling STROBE FLASHER The strobe (Table 2, H) will flash at 2 second intervals in the event of tamper (wire cutting) or when activated via the +-F terminal.
  • Page 9: Chapter 3 Installation

    NRB100 Installation and Programming Manual Chapter 3 INSTALLATION The Hornstrobe should be mounted high up on an even surface, in such way that it is out of reach but clearly on view and therefore may serve as a visible deterrent against break-in.
  • Page 10: Wire Connection

    NRB100 Installation and Programming Manual 2 wire connection This standard wiring method triggers the device using a "Positive Removed" signal. This wiring method needs to disable through programming the inputs +-B e +-F or to connect the terminals of these imputs with the + power terminal.
  • Page 11: Extra Connections

    NRB100 Installation and Programming Manual Extra connections The STATUS and PRG LEDs (Table 2, E and Table 2, F) can be activated by connecting the LED input to Negative (-). If you wish to forward tamper signals to the intrusion control panel, connect terminals 5 and 6 of the Hornstrobe terminal board directly to a terminal on the intrusion control panel.
  • Page 12: Chapter 4 Programming

    NRB100 Installation and Programming Manual Chapter 4 PROGRAMMING The Hornstrobe can be programmed only during the installation, therefore, it is necessary to ensure that: • the device is not powered; battery and mains must be disconnected • the tamper microswitch is open •...
  • Page 13 NRB100 Installation and Programming Manual Table 6: Programming phases Programming LEDs STATUS Phase Programming Exits programming without saving changes Input +-B deactivated Input +-B activated The Horn will activate if Negative is Removed Input +-B activated The Horn will activate if the Positive is...
  • Page 14: Notes

    NRB100 Installation and Programming Manual Notes: Programming...
  • Page 15: Warranty

    Seller's option, any product not meeting the specifications. In no event shall INIM Electronics s.r.l. be liable to the purchaser or any other person for any loss or damage whether direct ot indirect or...
  • Page 16 NRB100 Installation and Programming Manual ISO 9001: 2008 registered company...
