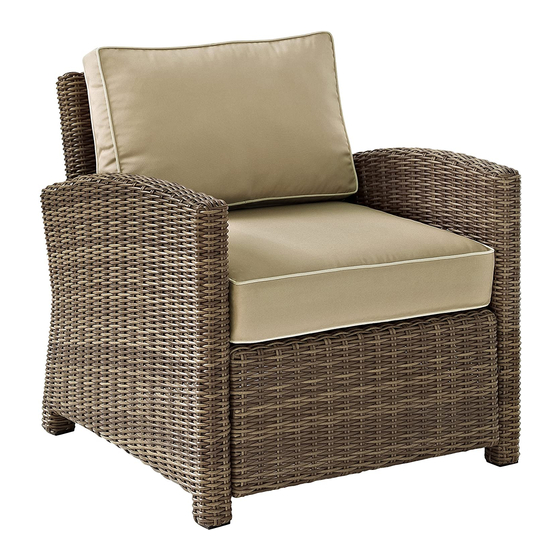

- Page 1 Biltmore Outdoor Wicker Arm Chair CO7116-WB 1 of 7...
-
Page 3: Part List
PART LIST Left Arm Panel Right Arm Panel Back Panel Seat Panel Cover Of Seat Cushion Inner Of Seat Cushion Cover Of Back Cushion Inner Of Back Cushion HARDWARE LIST Short Bolt(M6*40mm) Long Bolt(M6*65mm) Medium Bolt(M6*55mm) 2PCS 4PCS 6PCS Nut(M6mm) Washer(M6mm) Wrench(M6mm) 6PCS... - Page 5 Step 3. Attach Right Arm Panel(B) to assembled parts(A,C&D) using Short Bolts (I),Medium Bolts (J),Long Bolts ( K ),Washers (M ), Nuts ( L ),Wrench ( N ) and Allen Key (O) . X2PCS X2PCS X1PC X2PCS X7PCS 5 of 7...
- Page 6 Step 4. Insert Inner Of Seat Cushion (F) into Cover Of Seat Cushion (E). Insert Inner Of Back Cushion (H) into Cover Of Back Cushion (G). Step 5. Place Seat Cushion and Back Cushion on the chair. 6 of 7...
- Page 7 In accordance with the "Moss-Magnuson Warranty Act" of july 10, 1975, this is termed a "limited warranty" which in no way compromises Crosley Furniture's high standards of Quality and Workmanship. 7 of 7...
