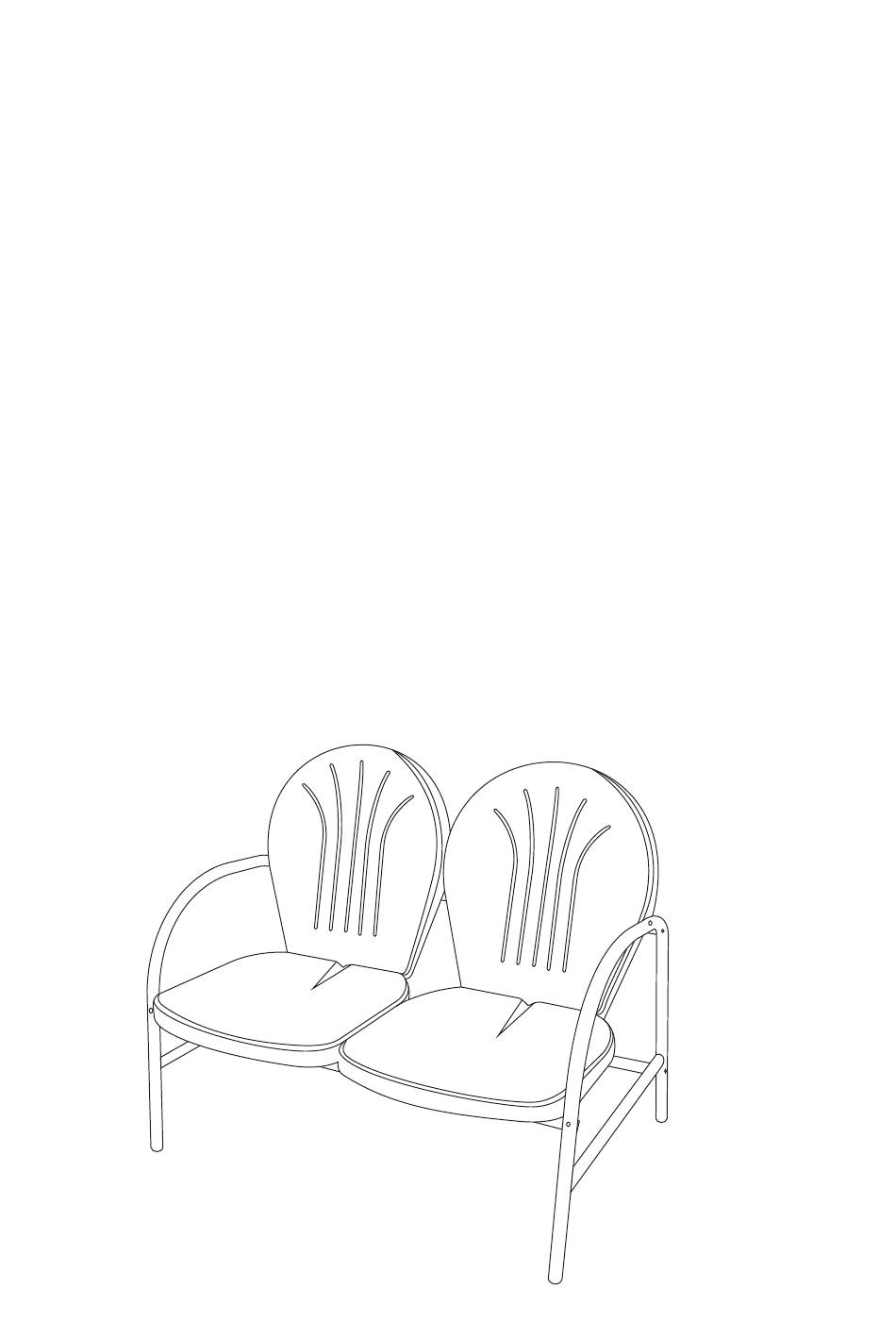

  • Page 1 C R O S L E Y F U R N I T U R E METAL STATIONARY LOVESEAT CO1002A...
  • Page 2 C R O S L E Y F U R N I T U R E Congratulations! You have purchased a stylish piece of Crosley Furniture. We strive to provide fine furniture products, built with quality materials. Please carefully follow the assembly instructions to ensure your furniture is assembled correctly to provide long lasting enjoyment.
  • Page 3 PART LIST Upper Back Crossbar Chair Back Chair Seat Lower Back Crossbar 2PCS 2PCS 2PCS Front Crossbar HARDWARE LIST 1/4" X 15 MM BOLT 1/4" X 25MM BOLT 1/4" X 32MM BOLT 1/4" X 40MM BOLT 1/4" X 42MM BOLT 8 PCS 1 PC 1 PC...
  • Page 4 Step 1: Place the chair seat (B) on a solid flat surface. Position the chair back (A) as shown in (Figure 1) so that the holes in the chair back align with the holes in the chair seat. Insert 1/4"x15mm bolts (1) through the holes of the chair back (A) and then through the holes in the chair seat.
  • Page 5 Step 4: Attach arm ( C) to seat (B) and back (A) using 1/4"x42mm bolts (5), two 6.5 x 1.0 washers (6), and 1/4" nuts (7) as shown in (Figure 4). Tighten with hex wrench (12) and Allen Key (13). Do not over tighten. Repeat for remaining Loveseat arm.
  • Page 6 In accordance with the "Moss-Magnuson Warranty Act" of July 10, 1975, this is termed a "limited warranty" which in no way compromises Crosley Furniture's high standards of Quality and Workmanship. 5 of 5...
