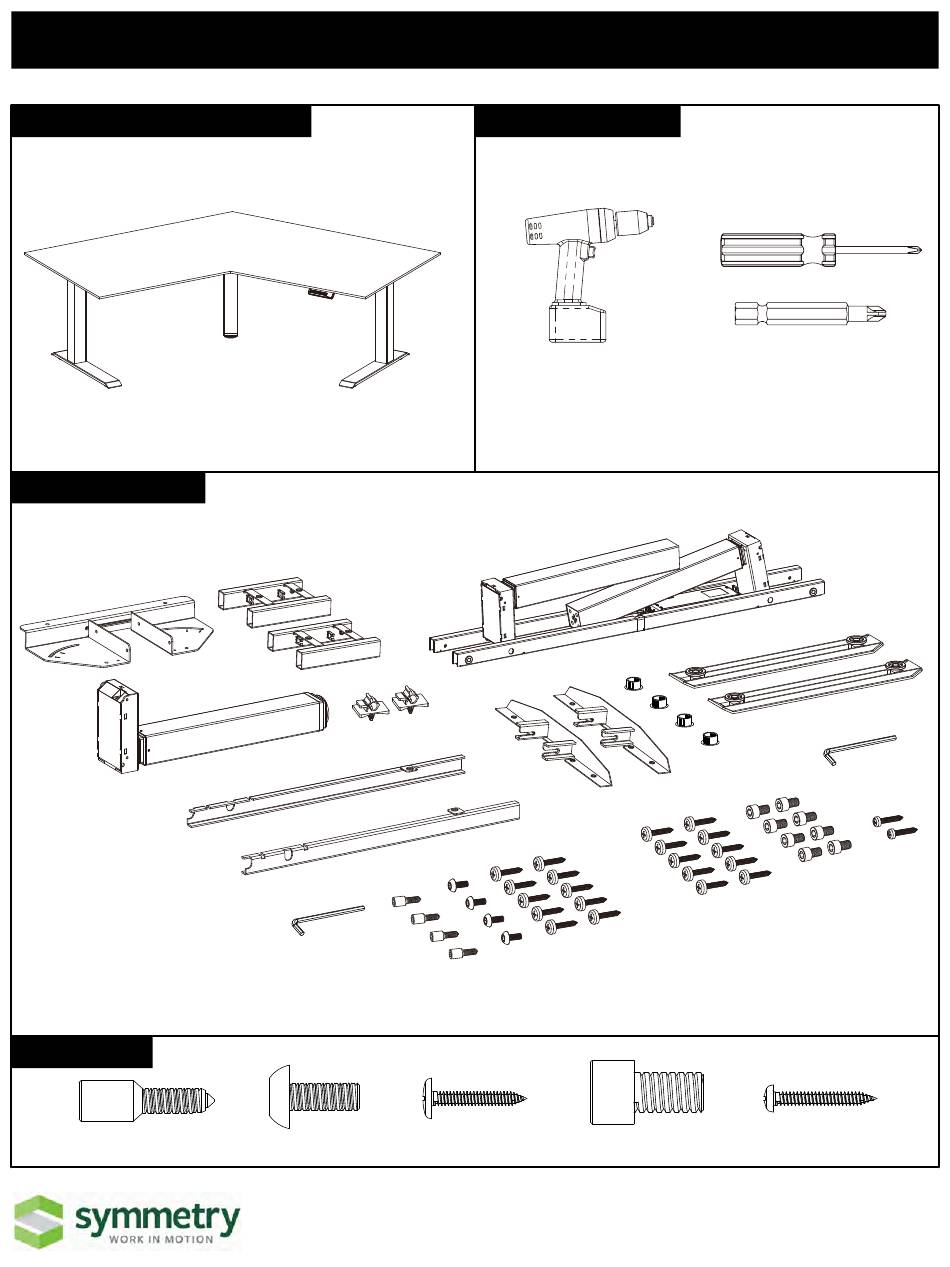

SWITCHBACK 3-LEG-C-STYLE ASSEMBLY INSTRUCTIONS
IMPORTANT: PLEASE READ ALL INSTRUCTIONS BEFORE STARTING ASSEMBLY.
EXAMPLE FINAL ASSEMBLY
COMPONENTS
CARTON 1
A(x1)
1:1 SCALE
M6x16mm Screw
S-A
To report any issues with this product, please contact our customer service department at (888) 552-5699
CARTON 2
B(x2)
D(x2)
C(x1)
E(x1)
F(x1)
K(x1)
5mm Allen Key
M6x16mm Screw
S-B
For more information, visit www.symmetryoffice.com
REQUIRED TOOLS
Cordless Drill/Driver
S-C
(x10)
S-B
S-A
(x4)
(x4)
M5x20mm Screw
M10x16mm Screw
S-C
#2 Phillips Screwdriver or Bit
G(x1)
I(x4)
H(x2)
S-C
(x10)
M4x22mm Screw
S-D
No. C6263 Rev. 01
Release Date: XX/XX/2019
J(x2)
K(x1)
5mm Allen Key
S-E
(x2)
S-D
(x8)
S-E
Advertisement
Table of Contents
Related Manuals for Symmetry SWITCHBACK 3-LEG-C-STYLE
Summary of Contents for Symmetry SWITCHBACK 3-LEG-C-STYLE
- Page 1 SWITCHBACK 3-LEG-C-STYLE ASSEMBLY INSTRUCTIONS IMPORTANT: PLEASE READ ALL INSTRUCTIONS BEFORE STARTING ASSEMBLY. EXAMPLE FINAL ASSEMBLY REQUIRED TOOLS Cordless Drill/Driver #2 Phillips Screwdriver or Bit COMPONENTS CARTON 1 CARTON 2 G(x1) A(x1) B(x2) J(x2) D(x2) I(x4) C(x1) K(x1) 5mm Allen Key...
- Page 2 SWITCHBACK 3-LEG-C-STYLE ASSEMBLY INSTRUCTIONS Carton 1 - 3rd Leg Kit 1. Install end pipe onto the column as shown in the illustration. 2. Install four socket screws M6x16mm with provided 5mm Allen Key. 3. Install outer pipes using four M6x16mm screws. Do not tighten more than half way.
- Page 3 SWITCHBACK, 3-LEG, C-STYLE ASSEMBLY INSTRUCTIONS SWITCHBACK 3-LEG-C-STYLE ASSEMBLY INSTRUCTIONS Carton 2 - Base Kit If U pipes do not separate Note: easily, loosen set screws. U Pipe Outer Pipe Note: If a table side is 72" long, discard the U pipes shipped with unit and replace with longer U pipes shipped separately.
- Page 4 SWITCHBACK 3-LEG-C-STYLE ASSEMBLY INSTRUCTIONS Note: Use longer U pipes for 72” surface. 1. Unfasten the set screws half way out for the U pipes to be installed into the columns using the 5mm Allen wrench provided. To report any issues with this product, please contact our customer service department at (888) 552-5699...
- Page 5 SWITCHBACK 3-LEG-C-STYLE ASSEMBLY INSTRUCTIONS 90° 120° Note: When combining two surfaces, place the tops in position and then place the entire base assembly in position on top of the face down tops. Locate and install each mending plate as shown using the 8 M5x19mm screws provided.
- Page 6 SWITCHBACK 3-LEG-C-STYLE ASSEMBLY INSTRUCTIONS 1. Install table feet using 4 screws per leg (M10x16mm) with provided Allen key. Note: When assembling C style legs, make sure the end brackets and feet are extended in the same direction as shown. To report any issues with this product, please contact our customer service department at (888) 552-5699...
- Page 7 SWITCHBACK 3-LEG-C-STYLE ASSEMBLY INSTRUCTIONS Note: For a unit with at least one 72" side, a 39" extension for connecting the units is provided separately. 1. Connect AC Power cord to control box. 2. Connect 18”(500mm) additional cord from the control box to the other column.
- Page 8 SWITCHBACK 3-LEG-C-STYLE ASSEMBLY INSTRUCTIONS 1. Install columns to table top using 14 M5x20mm screws. 2. Install handset to table top using 2 M4x22mm screws. 3. Place table in the upright position, be cautious to not damage handset. Note: Resetting the table: Press and hold the up & down buttons at the same time for 3 seconds.
