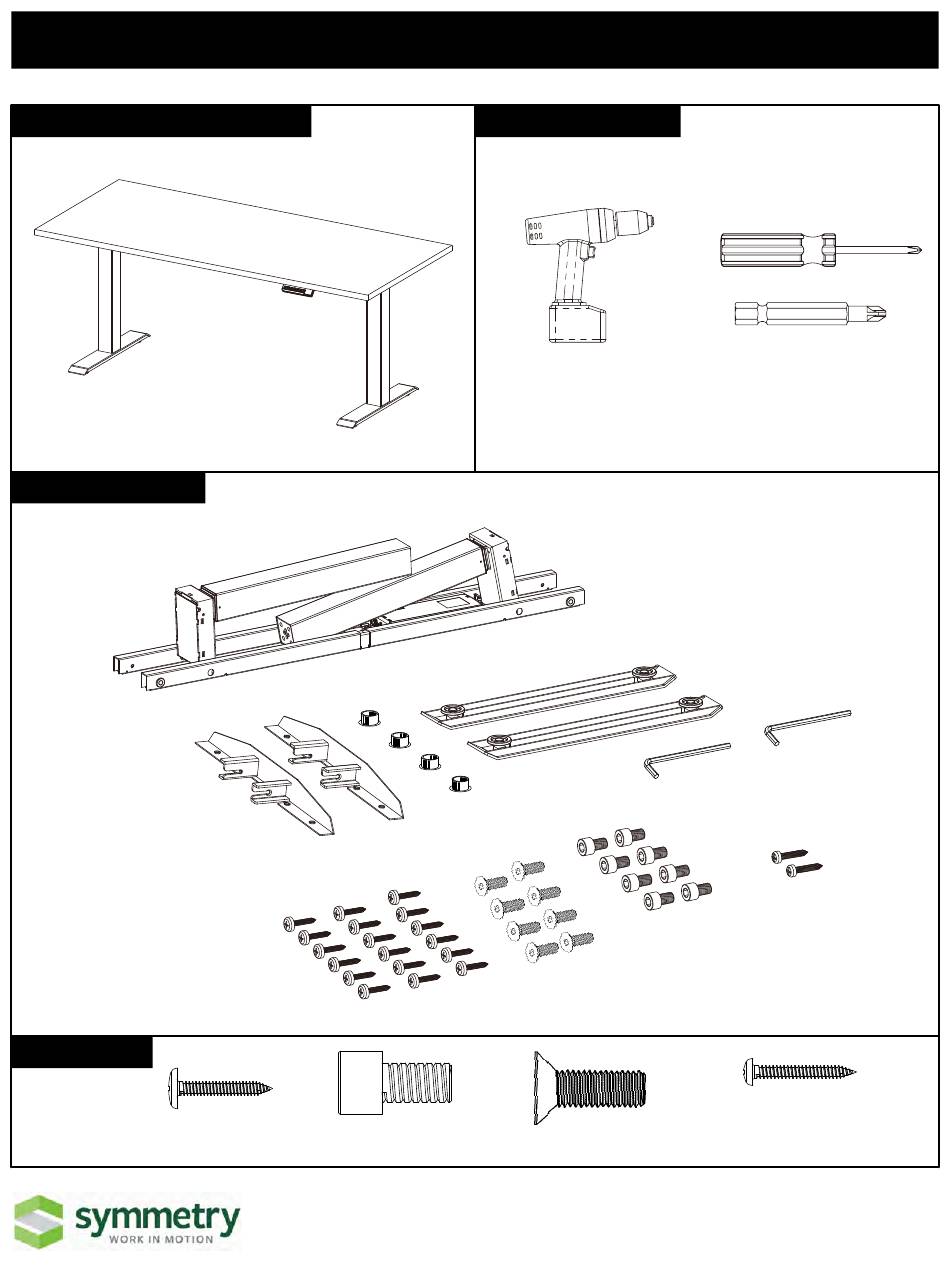

SWITCHBACK 2-LEG 3-STAGE ASSEMBLY INSTRUCTIONS
IMPORTANT: PLEASE READ ALL INSTRUCTIONS BEFORE STARTING ASSEMBLY.
FINAL ASSEMBLY EXAMPLE
REQUIRED TOOLS
Cordless Drill/Driver
#2 Phillips Screwdriver or Bit
COMPONENTS
A(x1)
E-A(x1)
D(x2)
6mm Allen Key
E(x1)
(Alt - only for specific models)
5mm Allen Key
C(x4)
B(x2)
S-C
(x2)
S-B
(x8)
S-B (Alternate)
(x8)
S-A
(x18)
1:1 SCALE
M4x22mm Screw
S-C
M5x20mm Screw
M10x16mm Screw
M10x30mm Screw
S-A
S-B
S-B (Alternate)
To report any issues with this product, please contact our customer service department at (888) 552-5699.
No. C6264 Rev. B
Date: 2/19/2020
For more information, visit www.symmetryoffice.com.
