SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS
IMPORTANT: PLEASE READ ALL INSTRUCTIONS BEFORE STARTING ASSEMBLY.
FINAL ASSEMBLY EXAMPLE

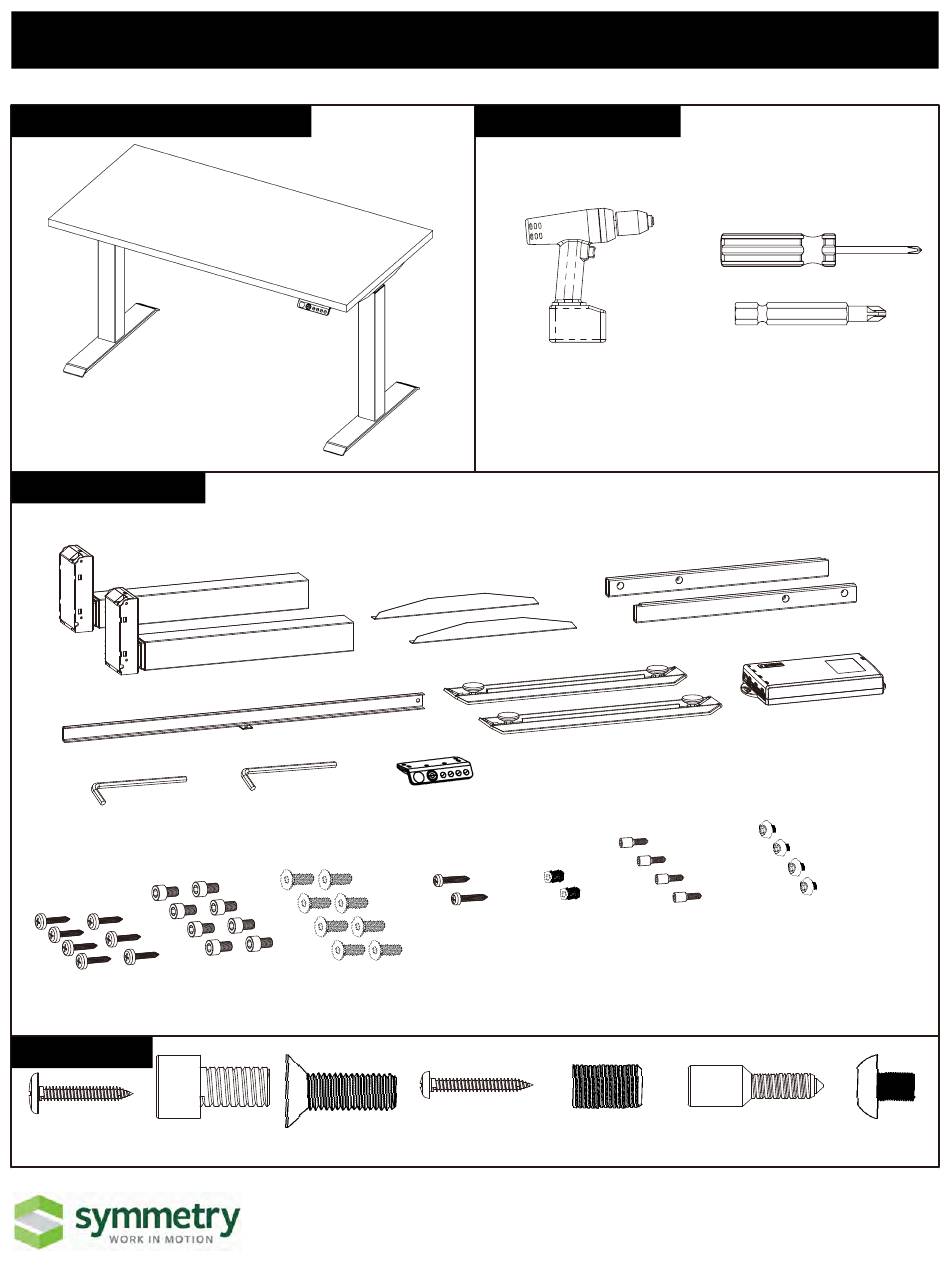

COMPONENTS
G(x1)
5mm Allen Key
S-A
(x7)
1:1 SCALE
M5x20mm Screw
M10x16mm Screw
S-A
To report any issues with this product, please contact our customer service department at (888) 552-5699.
A(x2)
D(x1)
G-A(x1)
6mm Allen Key
(Alt - only for specific models)
S-B
S-B (Alternate)
(x8)
(x8)
M10x30mm Screw
S-B
S-B (Alternate)
For more information, visit www.symmetryoffice.com.
REQUIRED TOOLS
Cordless Drill/Driver
B(x2)
E(x2)
H(x1)
S-D
S-C
(x2)
(x2)
M10x17mm Set Screw
M4x22mm Screw
S-C
#2 Phillips Screwdriver or Bit
C(x2)
S-E
(x4)
M6x16mm Screw
S-D
S-E
No. C6286 Rev. B
Date: 2/19/2020
F(x1)
S-F
(x4)
M6x8mm Screw
S-F

Advertisement

loading
Need help?

Need help?

Do you have a question about the SWITCHBACK and is the answer not in the manual?

Questions and answers

Summary of Contents for Symmetry SWITCHBACK

  • Page 1 SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS IMPORTANT: PLEASE READ ALL INSTRUCTIONS BEFORE STARTING ASSEMBLY. FINAL ASSEMBLY EXAMPLE REQUIRED TOOLS Cordless Drill/Driver #2 Phillips Screwdriver or Bit COMPONENTS C(x2) B(x2) A(x2) F(x1) E(x2) D(x1) G-A(x1) H(x1) G(x1) 6mm Allen Key 5mm Allen Key...
  • Page 2 SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS C-Leg T-Leg 1. For proper cable management, align the hand control and control box on provided hole patterns with control box three (3) ports facing the leg it is closest to. To report any issues with this product, please contact our customer service department at (888) 552-5699.
  • Page 3 SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS Cutaway Portion Note: Be sure to place the cross-brace such that the cutaway portions are in contact with the table surface and facing each other. 1. Place the columns into an upright position. 2. Fasten the two (2) M6 x 16mm screws on each leg that secure the motor housing to the cross-brace using the Allen wrench provided.
  • Page 4 SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS T-Leg C-Leg 1. Install end pipes into columns with two (2) M6 x 8mm screws per side using the provided Allen wrench. To report any issues with this product, please contact our customer service department at (888) 552-5699.
  • Page 5 SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS (Alternate) 30", C-Leg Alternate Design C-Leg T-Leg 1. Install table feet using four (4) M10 x 16mm screws per leg using provided Allen wrench. Note: For C-leg models, make sure the end pipes and feet are extended in the same direction.
  • Page 6 SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS T-Leg Shown 1. Place the frame assembly onto the underside of the tabletop. Extend the frame to the desired length. Once the legs are located, center the u-pipe and fasten the two (2) M10 x 17mm set screws as shown.
  • Page 7 SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS T-Leg C-Leg . Place the control box and hand control in position as shown. Note: For T-leg models, control box should be placed on side closest to user. Note: For C-leg models, control box should be placed on side farthest from user.
  • Page 8 SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS T-Leg Shown Hardware Requirements Table Depth C-Leg T-Leg 24” 30” 1. Attach the frame assembly onto the underside of the tabletop using M5 x 20mm screws provided. (See hardware requirements table) 2. Attach all cables to control box before connecting power cord.
  • Page 9 SWITCHBACK 2-LEG 2-STAGE ASSEMBLY INSTRUCTIONS 1. Flip the table to the upright position and reset it before the first use. Resetting the table: Press and hold the up and down buttons at the same time for three (3) seconds. Continue pressing until the columns are in the lowest position.
