VOYAGER
ASSEMBLY INSTRUCTIONS
Reach new heights with the Voyager 2-leg sit/stand table. Designed and built to be
configurable for spaces of any shape and size, get the do-it-all desk that works with a
multitude of convenient workspace options.

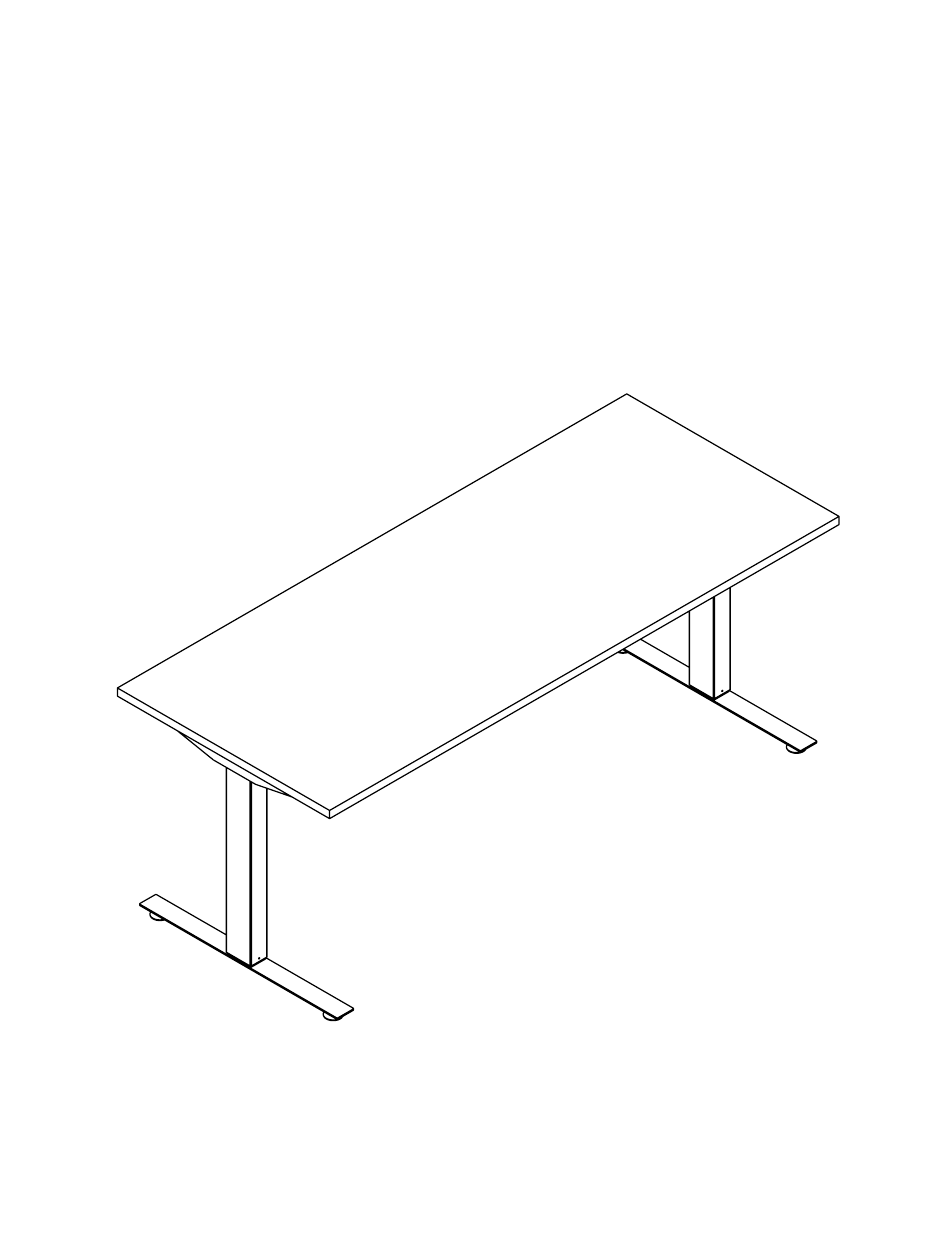

2-LEG VOYAGER
WITH OR WITHOUT HAT CHANNEL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VOYAGER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Symmetry VOYAGER

Summary of Contents for Symmetry VOYAGER

  • Page 1 VOYAGER ASSEMBLY INSTRUCTIONS Reach new heights with the Voyager 2-leg sit/stand table. Designed and built to be configurable for spaces of any shape and size, get the do-it-all desk that works with a multitude of convenient workspace options. 2-LEG VOYAGER...
  • Page 2 • Power Cord (1) Cordless Drill / Driver (Do not over-tighten screws) • Top Support (2) COMPONENTS 2-LEG VOYAGER WITHOUT HAT CHANNEL Motor Housing FOR TABLE TOPS UNDER 72" M8 × 1.25 12 mm Screw Foam* #10 × ¾" Screws...
  • Page 3 • Motor Housing (2) Cordless Drill / Driver • Power Cord (1) (Do not over-tighten screws) • Top Support (2) COMPONENTS 2-LEG VOYAGER WITH HAT CHANNEL Motor Housing FOR 72" TABLE TOPS HAT Channel M8 × 1.25 12 mm Screws Foam* #10 ×...
  • Page 4 VOYAGER 2-LEG ASSEMBLY INSTRUCTIONS STEPS 1. Check to make sure the top supports are 1 " from the edge of the table top and align the support with the pilot holes. 2. Attach both top supports to the underside of the table top using a #2 Phillips-head screwdriver or bit and the #10 ×...
  • Page 5 VOYAGER 2-LEG ASSEMBLY INSTRUCTIONS STEPS For each top support: 1. Feed the motor cables through the motor housing. 2. Center the motor housing in the top support, ensuring that the mounting holes in the motor housing and the column remain aligned.
  • Page 6 VOYAGER 2-LEG ASSEMBLY INSTRUCTIONS STEPS 1. Attach the feet to the columns using the 6 mm hex L-key and the M10 × 1.5 30 mm screws (2 per column). To report any issues with this product, please contact our customer service department at (888) 552-5699.
  • Page 7 VOYAGER 2-LEG ASSEMBLY INSTRUCTIONS Screws belong inside the motor housing. STEPS 1. Attach the motor housing to the underside of the table top using a #2 Phillips-head screwdriver or bit and #10 × ¾" screws (2 per motor housing). To report any issues with this product, please contact our customer service department at (888) 552-5699.
  • Page 8 VOYAGER 2-LEG ASSEMBLY INSTRUCTIONS STEPS Complete this step only if using a HAT channel. HAT channels are required for tables with a length of 72" or greater. If no HAT channel is being used, proceed to step 6. 1. Feed the motor cables through the HAT channel before attaching the HAT channel to the table top.
  • Page 9 VOYAGER 2-LEG ASSEMBLY INSTRUCTIONS STEPS Making sure that the control box and controller are fastened in a location where all the cables will connect without tension: 1. Fasten the control box to the underside of the table top using a #2 Phillips-head screwdriver or bit and #10 ×...
  • Page 10 VOYAGER 2-LEG ASSEMBLY INSTRUCTIONS STEPS 1. Connect the motor cables (M1–M2) to the control box. The motor cable plug connection should click into place. 2. Connect the controller (HS) cable to the control box. 3. Connect the supplied power cord (AC) to the control box.
  • Page 11 To reduce the risk of death, serious injury, or property damage: Read and follow the safety information and the provided instructions when assembling this product. Do not change or replace components and accessories provided by Symmetry Office. KEEP AWAY FROM CHILDREN This table system is not designed for use in homes or other areas accessible by small children.

  • Page 12: Grounding Instructions

    VOYAGER 2-LEG SAFETY INFORMATION DANGER DO NOT OVERLOAD TABLE To prevent the table from tipping or collapsing, make sure the table frame is not overloaded by the weight of the table top and objects on table. • Evenly distribute load; excess loads near the edges can reduce stability and lead to tip-over.

  • Page 13: Initialization / Reset

    VOYAGER OPERATION INFORMATION INITIALIZATION / RESET The desk must be initialized/reset after any of the following: • After assembly • After disconnection from the power supply • After any impact on the table top To initialize or reset: 1. Move the table to the lowest position by pressing the button on the controller until the columns reach the lowest position.

  • Page 14: Programmable Controller

    VOYAGER OPERATION INFORMATION PROGRAMMABLE CONTROLLER The optional programmable controller is equipped with a display that shows the current table height in centimeters or inches. The controller also will display an error code if an error is detected by the control box.

  • Page 15: Other Concerns

    4. Plug the controller into the control box and ensure the cabling is secure. 5. Follow the initialization instructions on page 12. If problems persist: Call Symmetry Office before you leave the job site for diagnostic help: 888-552-5699. OTHER CONCERNS SYMPTOM...

  • Page 16: Understanding Error Codes

    VOYAGER TROUBLESHOOTING UNDERSTANDING ERROR CODES CODE SOURCE SOLUTION The control box monitors the duty cycle Wait until the “H0T” display goes out - the table is working properly (time-controlled) and its maximum again temperature. A value has been exceeded. M1 – Internal fault Unplug and contact customer service.

  • Page 17: Technical Data

    VOYAGER TECHNICAL DATA GENERAL CONTROL BOX Power supply 120 VAC ± 10% / 60 Hz Standby power consumption, primary <0.3 W Operating temperature 0–35º C Protection class IP 20 Maximum power output 216VA / 24V 2-LEG FRAME WITH CONTROL BOX Maximum lift capacity 200 lb (�...
