Zida V630E User Manual

Quality, performance mainboards
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

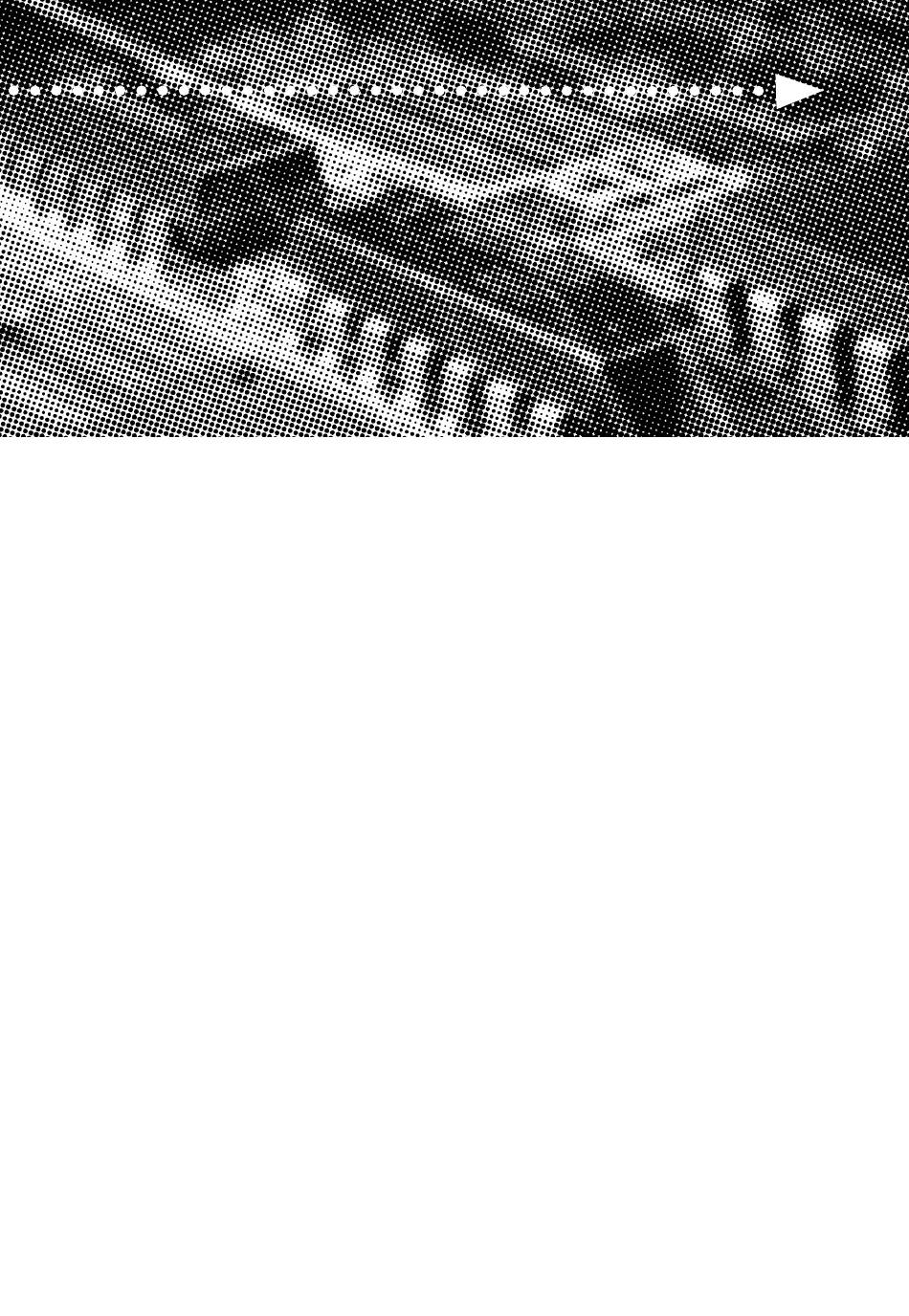

U
SER'S
More compatible, more functional and more competitive.
MANUAL
Excellent quality and faster response.
Supporting Socket 370 Processors, UDMA33/66, PC100/133 SDRAM
Quality, Performance Mainboards

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V630E and is the answer not in the manual?

Questions and answers

Related Manuals for Zida V630E

Summary of Contents for Zida V630E

  • Page 1 SER’S More compatible, more functional and more competitive. MANUAL Excellent quality and faster response. Supporting Socket 370 Processors, UDMA33/66, PC100/133 SDRAM Quality, Performance Mainboards...
  • Page 2 No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of MANUFACTURER.

  • Page 3: Table Of Contents

    Contents Table Of Contents Overview ........5 Fast Start Installation .

  • Page 5: Overview

    Overview Thank You for purchasing our High Performance Mainboard. Our advanced technology mainboard is designed for processing speeds of 1000MHz or above and is upgradeabled for future processors. The Mainboard Utilizes SIS 630E and ITE8705 chipset provide an Integrated Bus Mastering IDE controller with two high performance IDE interfaces for up to four UDMA IDE devices (hard drives, or CD-ROM's).

  • Page 6: Fast Start Installation

    Fast Start Installation This section will aid you in quickly setting up the Mainboard. Be sure to take caution to avoid personal injury or damage to wiring due to sharp pins on connectors, printed circuit assemblies, rough edges and corners and hot components. Your Location Requirements Are: •...

  • Page 7: Checking The Package Contents

    Checking The Package Contents Remove the items from the box and make sure you have the following items before beginning. If any of the items below are missing, please contact the representative for part replacement. Baby ATX Box Standard Package 1) Mainboard 2) Driver CD with Norton AntiVirus 2001 OEM Version 3) User Guide...
  • Page 8 Before we begin installing your series Mainboard, we have provided you with a diagram of the Mainboard to help you locate the appropriate “connectors”. The letters below describe the key Mainboard components. Page number in the right hand column will direct you to detailed description of the component. V630E Option : AC97 2.1 Compliant 3D Audio Onboard...

  • Page 9: Mainboard Diagram

    Mainboard Diagram Mainboard User's Manual Page 9...

  • Page 10: Clear Cmos

    Clear CMOS Set the Jumper JP4 to [1-2] to clear CMOS Remember: Please set it back to normal [2-3] after clear CMOS Page 10 Mainboard User's Manual...

  • Page 11: Quick Steps

    7 Quick Steps Please follow these steps in order to assure that your series of Mainboard installation is successful. Please refer to the back chapters for further information regarding boot-up and configurations. An anti-static wrist band is recommended when handling electronic components, be sure your work area is static free before you begin this section.
  • Page 12 Set the suitable Jumper Settings according to the Jumper settings Table. CAUTION! Be sure that sufficient air circulation must be available across the processor’s heatsink. Without sufficient circulation, the processor could overheat and damage both the processor and the mainboard. You may install an auxiliary fan if necessary.

  • Page 13: Installing The Memory

    Installing the Memory Memory is installed in DIMM Sockets 1-2 (F in diagram) as follows : After you have set the DIMM firmly into its socket, snap the white chip holders up to lock in the DIMM. Mainboard User's Manual Page 13...

  • Page 14: Attaching Atx Power Connector

    Attaching ATX Power Connector. ATX Power Supply Connector (20-pin ATXPWR) The single 20-pin connector (B in diagram) incorporates standard +/-5V and +/-12V, with a standby 5V. With a power supply that supports remote power on/off, the mainboard can turn off the system power through the software control, such as the shutdown in Windows 95 Start Menu.

  • Page 15: Floppy Disk Drive Connector

    Floppy Disk Drive Connector (34-pin FLOPPY). This is a 34-pin connector that supports the provided floppy drive ribbon cable. After connecting the single end to the on-board “FLOPPY” connector, (O in diagram) connect the remaining plugs on the other end to the corresponding floppy drives.

  • Page 16: Ide Device Connector

    IDE Device Connector The on-board IDE connectors (P in diagram) support the provided 40/80-pin IDE hard disk ribbon cable. After connecting the single end to the mainboard, connect the remaining plugs at the other end of your hard disk(s). If you install hard disks, you must configure the drives by setting its jumpers according to the documentation of your hard disk.

  • Page 17: Mounting Mainboard To Chassis

    Installing the mainboard into your computer chassis Snap black mounting pins onto the mainboard as shown. Carefully install the mainboard into the computer chassis and align the corresponding mounting holes on the mainboard with the holes on your chassis. While chassis design varies you may need to refer to the chassis manual for the mainboard Insert white pins through the chassis and...

  • Page 18: Installing Pci Add-On Boards

    Installing PCI Add-on Boards First read your expansion card documentation for hardware and software settings that may be required to set up your specific card. Set any necessary jumpers on your expansion card and remove the cover plate on your computer case at the slot you intend to use.

  • Page 19: Bios Setup

    BIOS Setup...
  • Page 20 Award BIOS Setup Standard CMOS Features Sets time, date, hard disk type, types of floppy drive, Monitor type, and if keyboard is installed. Advanced BIOS Features Sets Typematic Rate and Delay, Above 1 MB Memory Test, Memory Test Tick Sound, Hit <Del> Message Display, System Boot Up Sequence, and many others.
  • Page 21 Standard CMOS Features Select the BIOS Setup options by choosing Standard CMOS Features from the BIOS. Standard Setup options are described below. Date (mm:dd:yy) - Setting for the system Date Time (hh:mm:ss) - Setting for the system Time. IDE Primary Master IDE Primary Slave IDE Secondary Master IDE Secondary Slave...
  • Page 22 Video The category selects the type of video adapter used for the primary system monitor. EGA/VGA Enhanced Graphics Adapter; Video Graphics Adapter. For EGA, VGA, SEGA, SVGA or PGA Monitor Adapters. CGA 40 Color Graphics Adapter, power up in 40 column mode. CGA 80 Color Graphics Adapter, power up in 80 column mode MONO...
  • Page 23 Advanced BIOS Features Virus Warning You can enable or disable this feature. When enabled, BIOS will activate automatically if anything attempt to access the boot sector or hard disk partition table during system boot-up. The default value is “Disabled”. CPU Internal Cache This category enables or disables the CPU internal cache to speed up memory access.
  • Page 24 Quick Power On Self Test This category speeds up Power On Self Test (POST) after you power on the computer. If it is set to “Enabled”, BIOS will shorten or skip some check items during POST. The default value is “Disabled”. First / Second / Third Boot Device This feature allows you to select the system first boot device.
  • Page 25 Typematic Rate (Chars/Sec) Typematic rate sets the rate at which characters on the screen repeat when a key is pressed and held down. You can select 6-30 characters per second. The default setting is “6”. Typematic Delay (M sec) When holding down a key, the time between the first and second character display, this option specifies the numbers of times of character repeat on the screen.
  • Page 26 Advanced Chipset Features Advanced DRAM Control 1 / Control 2 These submenu allow you to modify the SDRAM cycle length, DRAM Drive Strength, DRAM Read/Write latency etc. If problem appears after changing these options, please power off the system, and clear the CMOS.
  • Page 27 Memory Hole at 15M-16M In order to improve performance, certain space in memory is reserved for ISA cards. This memory must be mapped into the memory space below 16MB. The Choice: Enabled, Disabled. AGP Aperture Size Select the size of Accelerated Graphics Port (AGP) aperture. The aperture is a portion of the PCI memory address range dedicated for graphics memory address space.
  • Page 28 Integrated Peripherals SIS 630 OnChip IDE Device This submenu allows you to modify the onboard IDE channel 0 & 1 functions. Internal PCI / IDE This option allows you enable/disable onboard IDE channels. IDE Primary/Secondary Master/Slave PIO The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports.
  • Page 29 IDE Primary/Secondary Master/Slave UDMA Ultra DMA/33/66 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If your hard drive and your system software both support Ultra DMA/33/66, select Auto to enable BIOS support.
  • Page 30 Onboard Serial Port 1/Port 2 This item allows you to determine access onboard serial port 1/port 2 controller with which I/O address. The choice: 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, Disabled, Auto. UART Mode Select Onboard Parallel Port Select a logical LPT port name and matching address for the physical parallel (printer) port.
  • Page 31 Power Management Setup ACPI function This item allows you to enable/disable the Advanced Configuration and Power Management (ACPI). The choice: Enabled, Disabled. ACPI Suspend Type This item allows you to choose the Advanced Power Management (ACPI) Suspend Type. The choice: S1(POS), S3(STR). Video OFF Option When enabled, this feature allows the VGA adapter to operate in a power saving mode.
  • Page 32 Video OFF Method This determines the manner in which the monitor is blanked. V/H SYNC+Blank This selection will cause the system to turn off the vertical and horizontal synchronization ports and write blanks to the video buffer. Blank Screen This option only writes blanks to the video buffer. DPMS Select this option if your monitor supports the Display Power Management Signaling (DPMS)
  • Page 33 LPT & COM When On of LPT & COM, any activity from one of the listed system peripheral devices or IRQs wakes up the system. HDD & FDD When On of HDD & FDD, any activity from one of the listed system peripheral devices wakes up the system.
  • Page 34 PnP/PCI Configurations Setup Reset Configuration Data Normally, you leave this field Disabled. If you have installed a new add-on card and the system reconfiguration has caused such a serious conflict that the operating system cannot boot. Select "Enabled" to reset Extended System Configuration Data (ESCD) when you exit Setup .
  • Page 35 Frequency/Voltage Control Auto Detect DIMM/PCI Clk Options : Enabled / Disabled Spread Spectrum Options : Enabled / Disabled CPU HOST / SDRAM / PCI Clock This option sets the frequencies of CPU, DIMM and PCI clocks. CPU Clock Ratio Jumpless This option sets the Clock Ratio between CPU Internal frequency and CPU External Frequency.
  • Page 36 Glossary...

  • Page 37: Glossary

    Glossary AT Keyboard Connector The Mainboard provides a on-board AT Keyboard Connector. PS/2 Header The Mainboard provides a on-board PS/2 Connector for the PS/2 mouse. ATX Power Supply Connector The Mainboard provides a single 20-pin ATX power supply connector, which incorporates standard +5V and +12V, 3.3V and soft-on/off signals.

  • Page 38: B- At Power Supply Connector

    About the Soft Touch Power Button In an ATX based system, the new soft touch power button replaces the main power switch that turns your system on and off. From an OFF state, you can switch the system ON by simply pressing the power button. From an ON state, the system can be turned OFF by pressing and holding the power button for four (4) seconds OR shut down instantly.

  • Page 39: D Serial (Com1 & 2) Headers

    Serial (COM1 & 2) Headers This mainboard provides two high-speed 16550 compatible UART serial ports. Infra-Red (IR) Connector The Mainboard provides a 5-pin header interface, IR for connection to a Hewlett Packard HSDSL-1000 compatible infrared (IrDA) transmitter/receiver. Connect IR to the front panel I/O IrDA connector provided with your system.

  • Page 40: G Parallel Port Connector

    Parallel Port Connector The Baby AT Mainboard provides a parallel port connector. The parallel port can be BIOS configured into standard (SPP) mode, Enhanced Parallel Port (EPP) mode, and a high speed Extended capabilities Port (ECP) mode. EPP Mode requires a driver provided by the peripheral manufacturer in order to operate properly.

  • Page 41: N Flash Bios

    Flash BIOS The Mainboard flash BIOS provides users with more flexibility in upgrading their mainboards. The flash BIOS can be easily reprogrammed via software. Floppy Drive Connector The Mainboard provides a 34-pin connector that supports the included floppy drive ribbon cable. After connecting the single end to the on-board “FLOPPY”...

  • Page 42: Qwakeup-Link Header

    WAKEUP-LINK Header The Mainboard provides two different WAKEUP-LINK headers (WOL & WOM) used to connect an add-in Network Interface Card and Modem Card which has Wakeup capability. LAN Connector The Mainboard provides a 15-pin LAN Connector for the Onboard 100Mbps PCI LAN. Audio Modem Riser (AMR) Connector The Mainboard provides a AMR Connector for the AMR cards.

  • Page 43: Tcpu System Fan Connector

    CPU System Fan Connector The recommended heatsinks for the processor are those with 12 Volt three-conductor fans that can be connected to the fan connector on the mainboard. It provides +12 Volts DC to the CPU cooling fan as follows: SIGNAL NAME (FAN speed detect) +12V...

  • Page 44: Vvga Connector

    VGA Connector The Mainboard provides a VGA Connector for the Integrated Graphics Controller. CD Audio Connector CD Audio input ( Right, Ground, Ground, Left ) Auxiliary Connector Auxiliary input ( Right, Ground, Ground, Left ) Video Connector Video input ( Left, Ground, Ground, Right ) Page 44 Mainboard User's Manual...

  • Page 45: Lan Installation Guide

    LAN Installation Guide When V630E is shipped to end-user, a default LAN MAC address has been saved in the BIOS. However, enduser must re-enter this address if the CMOS is occassionally lost. Please follow the following steps to restore the LAN MAC Address :- 1.

  • Page 46: Cd Driver & Software Installation Guide

    1. Boot up the Operating System ( Windows 95/98/NT/2000 ) 2. Put the CD Disc into the CD-ROM Drive and wait for Autorun 3. Select V630E and click your Operating System Type 4. Follow the instructions and install suitable drivers...

  • Page 47: Norton Antivirus Oem Version Setup Guide

    Norton Anti-Virus OEM Version Setup Guide Step 1 : Load the Driver CD in CDROM and find the "Norton AntiVirus 2001 Install" Option. Step 2 : When CD finishes loading, press " Install Norton AntiVirus" to install the software. Mainboard User's Manual Page 47...
  • Page 48 Step 3 : Follow the installation procedures on screen. Step 4 : Select "Yes" and press "Finish" button to reboot computer. Page 48 Mainboard User's Manual...
  • Page 49 Guide Introduce INSTANT ON function: INSTANT ON is a Windows 98 ACPI sleep mode function. When recovering from sleep mode, the system is able, in just a few seconds, to retrieve the last “state” of the system before it went to sleep and recover to that state. The “state” is stored in memory (RAM) before the system goes to sleep.
  • Page 50 2. Update from Windows98 (Advance Power Management) APM mode: If your Windows 98 system is in APM mode, please follow the steps to update your system to ACPI mode. A. When Windows 98 finishes loading, open the “Control Panel” in Windows 98 “My Computer”...
  • Page 51 D. Select the “Driver” item and “Update Driver” E. The “Update Device Driver Wizard” will appear. Press the “Next” button F. In the “Update Device Driver Wizard” window, select the “Display a list of all the drivers in a specific location, so you can select the driver you want.”...
  • Page 52 G. Select the “Show all hardware” item , then select the “Advance Configuration and Power Interface (ACPI) BIOS” and press the “Next” button. H. “Update Driver Warning” will show up and ask “Are you sure you want to use this driver?”...
  • Page 53 Power on the computer when memory counting starts, press <Del>. You will enter BIOS Setup. Select the item “POWER MANAGEMENT SETUP”, then select Enable in “Suspend to RAM” option. Remember to save the settings by pressing "ESC" and choose the “SAVE & EXIT SETUP”...
  • Page 54 How to put your system into Stand by mode ? There are two ways : 1. Choose the “Stand by” item in the “Shut Down Windows” area. A. Press the “Start” button and then select “Shut Down” B. Choose the “Stand by” item and Click “OK”...
  • Page 55 2. Set the system ”power on” button to initiate sleep mode: A. Double click “My Computer” and then “Control Panel” B. Double click the “ Power Management” item. Mainboard User's Manual Page 55...
  • Page 56 C. Select the “Advanced” tab and “Standby” mode in Power Buttons. Restart your computer to complete setup. Now when you want to enter sleep mode, just press the “Power on” button.. How to recover from the sleep mode? There are four ways to “wake up” the system: 1.
  • Page 57 Notice to INSTANT ON users : 1. ATX power supply requirement - comply with the ATX 2.01 - provide more than 720 mA 5V Stand-By current 2. SDRAM requirement - PC-100/133 compliant. Mainboard User's Manual Page 57...
