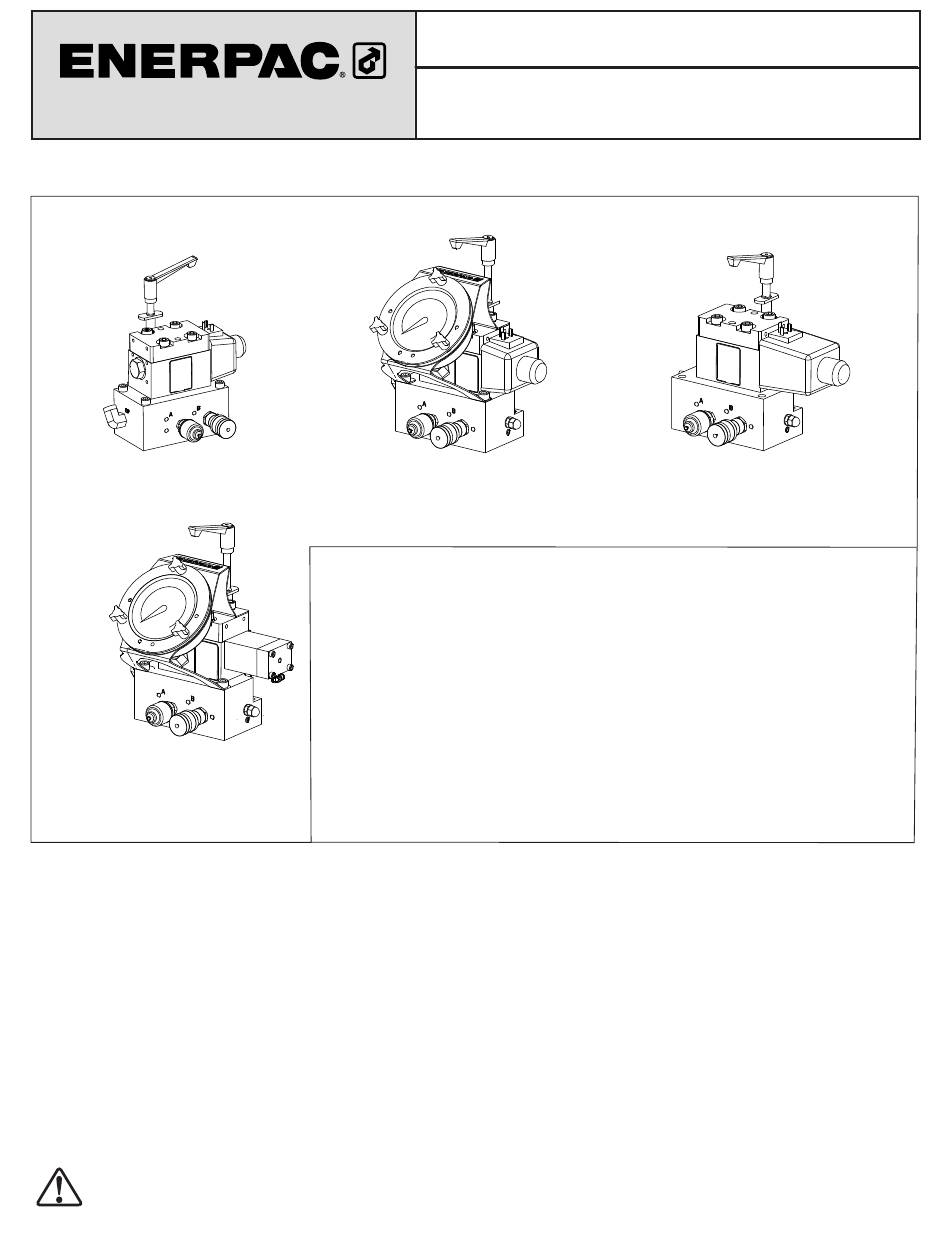

POWERFUL SOLUTIONS. GLOBAL FORCE.
L2908
Rev. F
VE42TQ, VE42TE Electric
115, 208 and 230 VAC Models
VA42Q, VA42E
Air Operated Models
Contents:
Figure 1 - Electric Valve Assemblies, Models VE42Q, VE42E (115, 208 and 230 VAC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Figure 2 - Electric Valve Assemblies, Models VE42TQ and VE42TE (115 VAC, 208 VAC, 230 VAC and 24 VDC) . . . . . . . . . . . . . . .3
Figure 3 - Air Valve Assemblies, Models VA42Q and VA42E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Figure 4 - Relief Valve, B-Port (Retract Circuit) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Figure 5 - Valve Mounting Components and Oil Return Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Figure 6 - Multiport Manifold Assemblies, Models ZTM-Q and ZTM-E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Figure 7 - Slider Valve Assembly, Electric Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Figure 8 - Slider Valve Assembly, Air Operated Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Figure 9 - Main Relief Valve Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 10 - Subassembly Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Note: For relief valve adjustment instructions, refer to the procedures located after Figure 10 .
WARNING: Disconnect electrical power or air supply (as applicable) before beginning any maintenance or repairs .
Standard safety procedures are to be followed during disassembly and reassembly to minimize any possibility of injury .
08/16
For valve date codes beginning with "B" (all other electric and air models.)
Relief Valve Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . English . . . . . . . . . . . . . . . . .Pages 11-13
Consignes de réglage du clapet de décharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Français . . . . . . . . . . . . . . . .Pages 14-16
Anleitung zur Einstellung des Druckbegrenzungsventils . . . . . . . . . . . . . . Deutsch . . . . . . . . . . . . . . . Seiten 17-20
Istruzioni di regolazione della valvola di scarico . . . . . . . . . . . . . . . . . . . . . . . . . . Italiano . . . . . . . . . . . . . . . . .Pagine 21-23
Instrucciones de ajuste de la válvula de alivio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Español . . . . . . . . . . . . .Páginas 24-26
Ontlastklep afstellingsinstructies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hollands . . . . . . . . . . .Pagina's 27-29
Instruções de Ajuste da Válvula de Alívio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Português . . . . . . . . . .Páginas 30-32
Varoventtiilin säätöohjeet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Suomalainen . . . . . . . . . .Sivut 33-35
Instruksjoner for justering av avlastningsventilen . . . . . . . . . . . . . . . . . . . . . . . . . Norsk . . . . . . . . . . . . . . . . . . . . . Sider 36-38
Justeringsinstruktioner för avlastningsventilen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Svensk . . . . . . . . . . . . . . Sidorna 39-41
溢流阀调节说明 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 中文 . . . . . . . . . . . . . . . . . . . . . . . . 页码 42-44
リリーフ弁の調整に関する説明 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 日本語 . . . . . . . . . . . . . . . . . .ページ 45-47
VE/VA Series Torque Wrench Valves
Single Solenoid Models
For valve date codes beginning with "A" (electric 24 VDC models only).
VE42Q, VE42E Electric
115, 208 and 230 VAC Models
ZTM-Q (Used on valve
models ending in QM)
Repair Parts List
VE42TQ, VE42TE Electric
24 VDC Models
ZTM-E (Used on valve
models ending in EM)
Page
