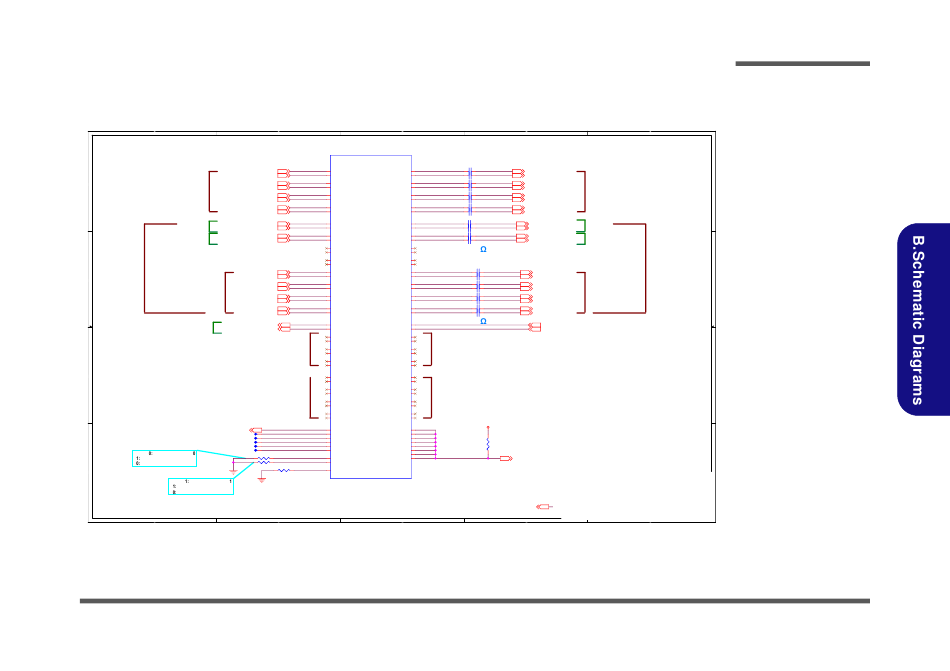

PCH 2/5

5
2 P_HUB_C_TXP0
2 P_HUB_C_TXN0
2 P_HUB_C_TXP1
D
2 P_HUB_C_TXN1
FROM CPU
2 P_HUB_C_TXP2
2 P_HUB_C_TXN2
2 P_HUB_C_TXP3
2 P_HUB_C_TXN3
GLAN
46 PCIE_RXP0_GLAN
46 PCIE_RXN0_GLAN
40 PCIE_RXP1_WLAN
WLAN
40 PCIE_RXN1_WLAN
PCIeG2GPP
GPP lane0~7
41 PCIE_RXP4_SSD
41 PCIE_RXN4_SSD
C
41 PCIE_RXP5_SSD
FORM M.2 Conn. 41 PCIE_RXN5_SSD
PCIE X4 SSD
41 PCIE_RXP6_SSD
41 PCIE_RXN6_SSD
41 PCIE_RXP7_SSD
41 PCIE_RXN7_SSD
47 SATA_RXP0_HDD
Main HDD
47 SATA_RXN0_HDD
B
SATA Express
47 DEVSLP0
T36
T32
T33
T34
T31
,)'(7 6$7$ ([SUHVV SRUW
3&,H PRGH R323
R315
6$7$ PRGH
A
,)'(7 6$7$ ([SUHVV SRUW
3&,H PRGH
6$7$ PRGH
5
4 3
U18A
PCIE/SATA/SATAE
G5 APU_RXP0 G1 APU_RXP0
APU_TXP0
APU_RXN0
G4 APU_RXN0 G2
APU_TXN0
<GROUP>
APU_RXP1
J5 APU_RXP1 J1
APU_TXP1
APU_RXN1
J4 APU_RXN1 J2
APU_TXN1
L5 APU_RXP2 L1 APU_RXP2
APU_TXP2
L4 APU_RXN2 L2 APU_RXN2
APU_TXN2
N5 APU_RXP3 N1 APU_RXP3
APU_TXP3
N4 APU_RXN3 N2 APU_RXN3
APU_TXN3
R23 GPP_RXP0 M25 PCIE0_TXP
GPP_TXP0
R24 GPP_RXN0 M26 PCIE0_TXN
GPP_TXN0
P23 GPP_RXP1 N24 PCIE1_TXP
GPP_TXP1
R22 GPP_RXN1 N25 PCIE1_TXN
GPP_TXN1
T21 GPP_RXP2 P25
GPP_TXP2
T22 GPP_RXN2 P26
GPP_TXN2
T23 GPP_RXP3 R26
GPP_TXP3
T24 GPP_RXN3 R25
GPP_TXN3
P_GPP_TXP4
K22 GPP_RXP4 H25
GPP_TXP4
P_GPP_TXN4
L22 GPP_RXN4 H26
GPP_TXN4
P_GPP_TXP5
L24 GPP_RXP5 H24
GPP_TXP5
L23 GPP_RXN5 J24 P_GPP_TXN5
GPP_TXN5
M23 GPP_RXP6 K25 P_GPP_TXP6
GPP_TXP6
M22 GPP_RXN6 K26 P_GPP_TXN6
GPP_TXN6
P22 GPP_RXP7 L26 P_GPP_TXP7
GPP_TXP7
N22 GPP_RXN7 L25 P_GPP_TXN7
GPP_TXN7
E15 SATA_RXP0 A15
SATA_TXP0
D15 SATA_RXN0 B15
SATA_TXN0
E16 SATA_RXP1 A16
SATA_TXP1
D16 SATA_RXN1 B16
SATA_TXN1
E17 SATA_RXP2 A17
SATA_TXP2
D17 SATA_RXN2 B17
SATA 3.0 SATA 3.0
SATA_TXN2
E18 SATA_RXP3 A18
SATA_TXP3
D18 SATA_RXN3 B18
SATA_TXN3
D11 SATAE_RXP0 B11
SATAE_TXP0
E11 SATAE_RXN0 A11
SATAE_TXN0
D12 SATAE_RXP1 B12
SATAE_TXP1
E12 SATAE_RXN1 A12
SATAE_TXN1
SATA Express
D13 SATAE_RXP2 B13
SATAE_TXP2
E13 SATAE_RXN2 A13
SATAE_TXN2
D14 SATAE_RXP3 B14
SATAE_TXP3
E14 SATAE_RXN3 A14
SATAE_TXN3
DEVSLP0 B22 DEVSLP0 E20
SATALED0
PM_SATAE_DEVSLP1 C23 DEVSLP1 E19
SATALED1
PM_SATAE_DEVSLP2 A22 DEVSLP2 A20
SATALED2
PM_SATAE_DEVSLP3 D21 DEVSLP3 B20
SATALED3
PM_DEVSLP4 C22 DEVSLP4 C20
SATALED4
PM_SATAE_DEVSLP5 C21 DEVSLP5 A19
SATALED5
B19
SATALED6
C8 IFDET0 C19
20K_04 IFDET0
SATALED7
20K_04 IFDET1 A7 IFDET1
R755 12.1K_1%_04 C9 PREXT
PROMONTORY REV LP
B450
4,5,6,8,10,11,28,32,34,35,37,38,40,41,46,47,48,49,50,51,52,53,56,64
4 3
2
C1061 0.22u_10V_X5R_04
P_HUB_RXP0 2
C1060 0.22u_10V_X5R_04
P_HUB_RXN0 2
C1059 0.22u_10V_X5R_04
P_HUB_RXP1 2
C1058 0.22u_10V_X5R_04
P_HUB_RXN1 2
FROM CPU
C1056 0.22u_10V_X5R_04
P_HUB_RXP2 2
C1057 0.22u_10V_X5R_04
P_HUB_RXN2 2
C1062 0.22u_10V_X5R_04
P_HUB_RXP3 2
C1063 0.22u_10V_X5R_04
P_HUB_RXN3 2
C1115 0.1u_10V_X7R_04
GLAN
PCIE_TXP0_GLAN 46
C1114 0.1u_10V_X7R_04
PCIE_TXN0_GLAN 46
C1104 0.1u_10V_X7R_04
WLAN
PCIE_TXP1_WLAN 40
C1105 0.1u_10V_X7R_04
PCIE_TXN1_WLAN 40
Zdiff=85 2.5" ~ 8 "
C1109 0.22u_10V_X5R_04
PCIE_TXP4_SSD 41
C1108 0.22u_10V_X5R_04
PCIE_TXN4_SSD 41
C1648 0.22u_10V_X5R_04
PCIE_TXP5_SSD 41
C1649 0.22u_10V_X5R_04
PCIE_TXN5_SSD 41
To M.2 Conn.
C1113 0.22u_10V_X5R_04
PCIE_TXP6_SSD 41
PCIE X4 SSD
C1112 0.22u_10V_X5R_04
PCIE_TXN6_SSD 41
C1107 0.22u_10V_X5R_04
PCIE_TXP7_SSD 41
C1106 0.22u_10V_X5R_04
PCIE_TXN7_SSD 41
Zdiff=85 7 "
SATA_TXP0_HDD 47
SATA_TXN0_HDD 47
3.3VS
R347
10K_04
SATA_LED# 48
Title Title Title
[36]07-01-2 PCH B/13 DMI/PCIE/USB2 [36]07-01-2 PCH B/13 DMI/PCIE/USB2 [36]07-01-2 PCH B/13 DMI/PCIE/USB2
Size Size Size Document Number Document Number Document Number
6-71-NH5A0-D02 6-71-NH5A0-D02 6-71-NH5A0-D02
Custom Custom Custom SCHEMATIC1 SCHEMATIC1 SCHEMATIC1
3.3VS
Date: Date: Date: Thursday, January 30, 2020 Thursday, January 30, 2020 Thursday, January 30, 2020
2
Schematic Diagrams
1
D
Sheet 36 of 73
PCIeG2GPP
GPP lane0~7 PCH 2/5
C
B
A
Rev Rev Rev
D02 D02 D02
Sheet Sheet Sheet 36 36 36 of of of 73 73 73
1
PCH 2/5 B - 37
