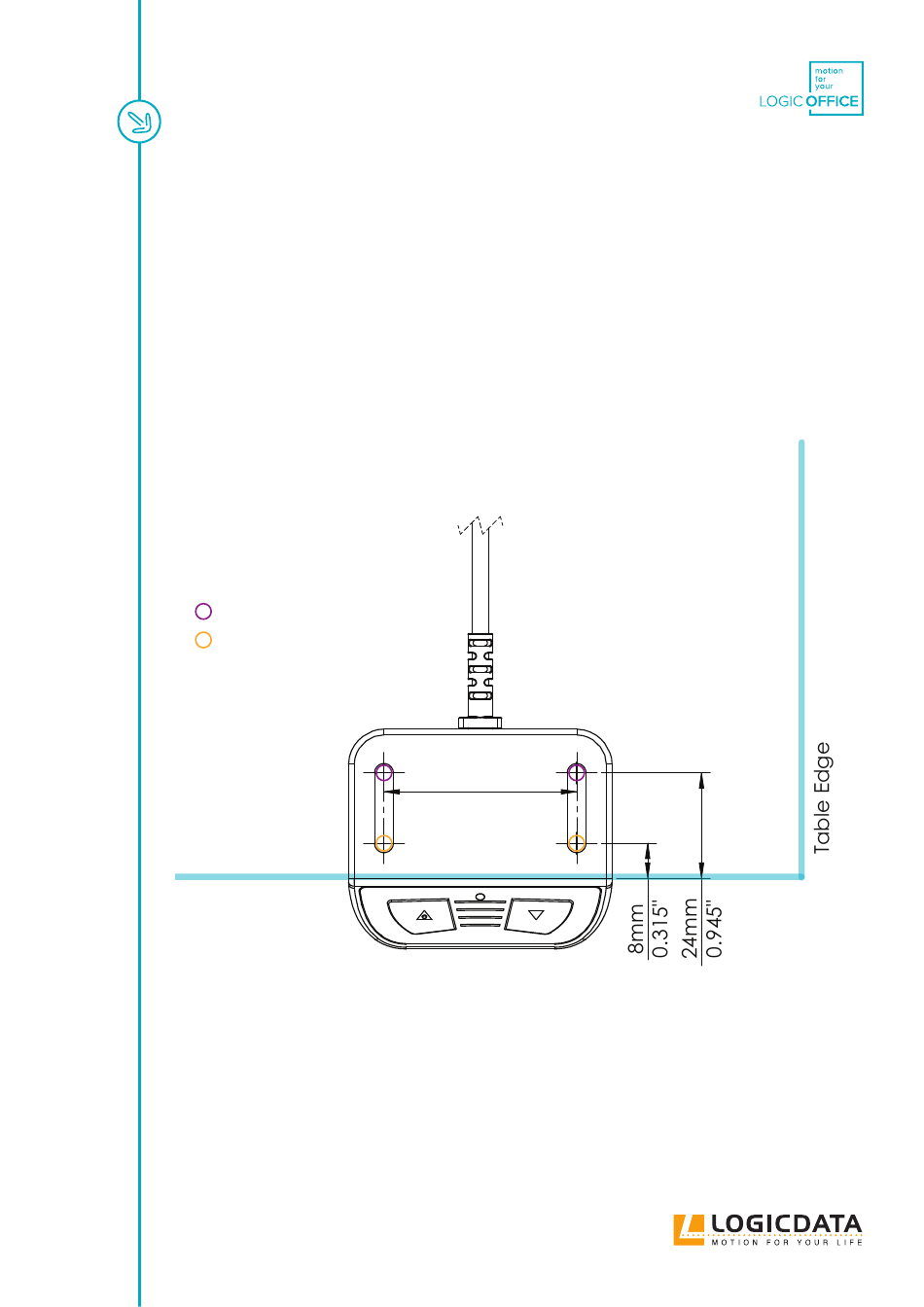

5.3 DRILLING TEMPLATE
There are two variants for mounting. In the Standard Position the drilled holes should be 8 mm from the
front edge of the Table Top and 43.8 mm apart.
Alternatively, the drilled holes can be set to the Transportation Postion, 24 mm from the front edge of the
Table Top and 43.8 mm apart. The Transportation Position allows the DMUI-HSM to be slid backwards un-
derneath the Table Top, so that the Handset does protrude from the front edge of the table when in transport.
The Side Edge of the DMUI-HSM does not have to be flush with the Table's Side Edge. Leave a minimum of
20 mm between the outer hole and the Side Edge to ensure the DMUI-HSM does not protrude from the side.
Transportation Position
Standard Position
Table Edge
DMUI-HSM - MANUAL // PAGE 11
43.8mm
1.724"
