4.8 EXPANSION MODULE (EM)
The EM control unit can be used for the electronic management of the PTO and for special applications (for example: waste collec-
tion); alternatively, the EM provides a CANopen interface with special access points for Bodybuilder, in accordance with standard
CiA 413 Truck Gateway.

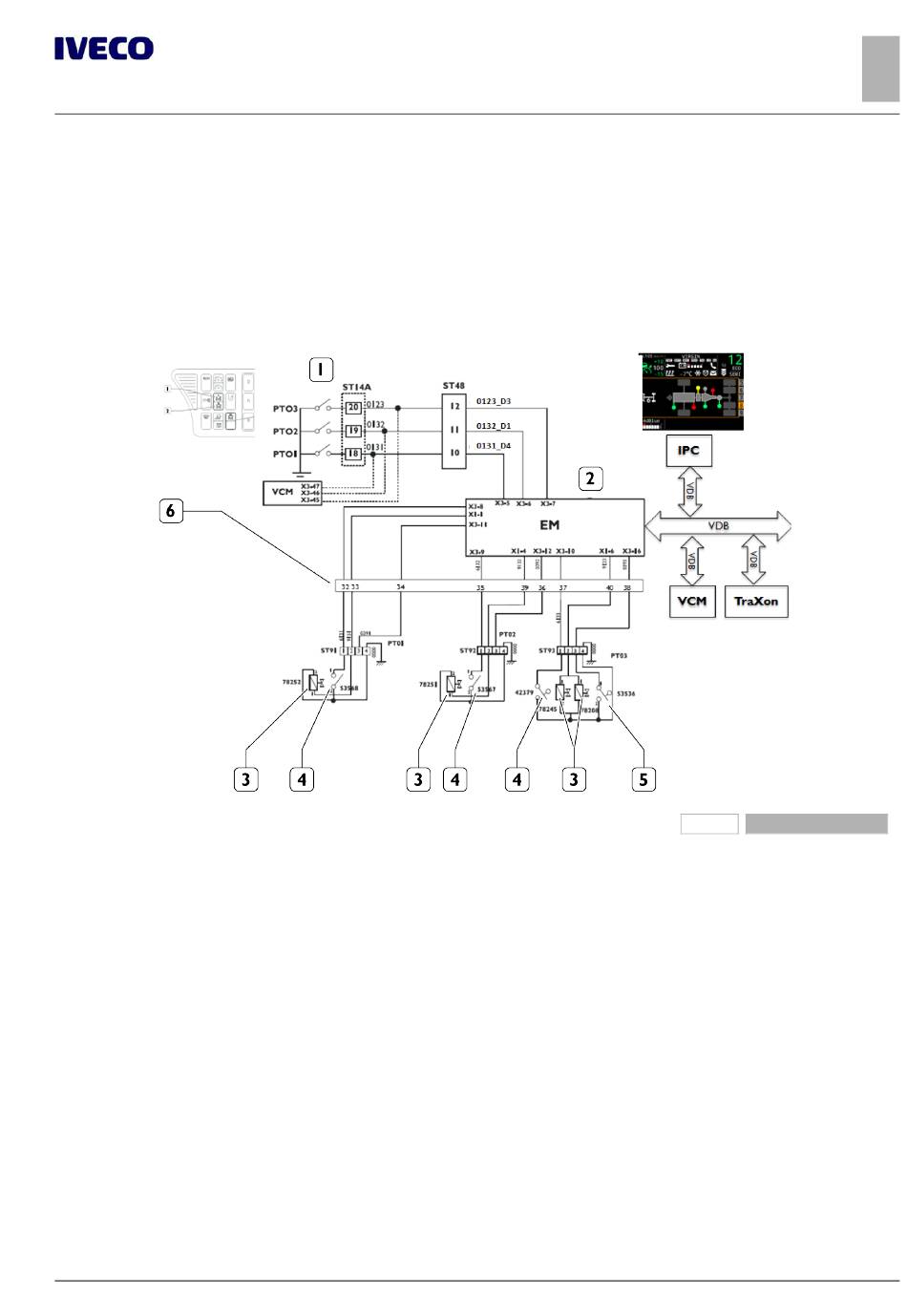

Figure 9 shows the wiring diagram, while Figure 10 shows the block diagram of the hardware structure.
1. PTO switches
2. EM control unit
3. PTO control solenoid valves
4. PTO return signal
– Printed 692.68.697 – 5 Ed. - Base 03/2019
NEW STRALIS MY2016 ‒ GUIDELINES FOR BODYBUILDERS
4.8 EXPANSION MODULE (EM)
5. PTO Pressure switch resp. Bodybuilder PTO3 engagement
consent
6. Bulkhead connector "B"
POWER TAKE-OFFS
Figure 9
248435
