67101384000 2013.00
With bath unit tap fittings
- Hot water connection for 1/2" tap fittings
- Cold water connection for 1/2" tap fittings
Net Weight
Water Content
Kg.
lt.
110
320
(1) - At overflow level
SCHEDA DI PREISTALLAZIONE

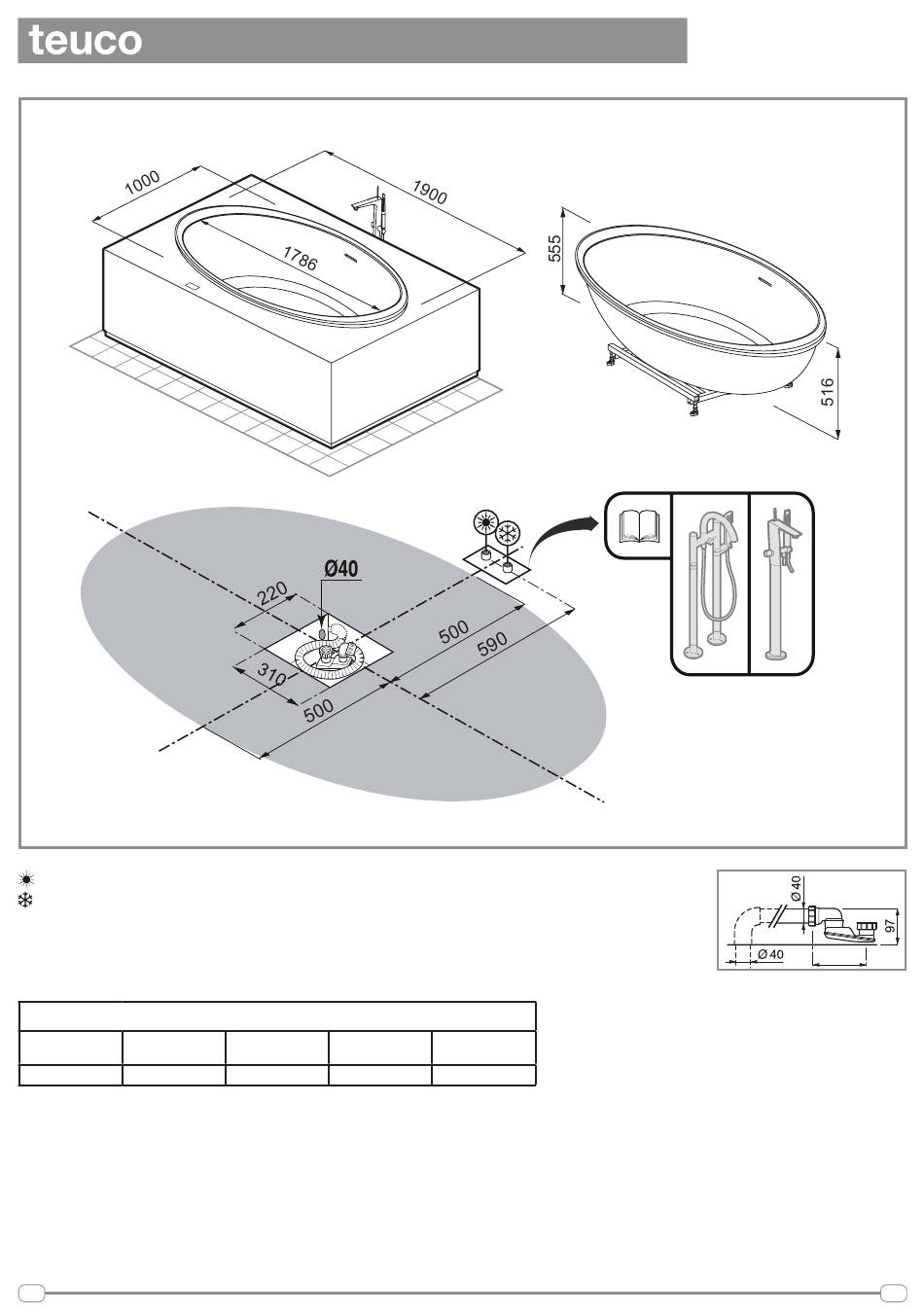

INSTALLATION OF THE BUILT-IN BATHTUB
Before building the perimetre walls, it is advisable to posi-
tion the bathtub and make the necessary connections.
The recess between the wall and the external edge of the
bathtub must be of a maximum of 1.5 cm.
Art. T12 - IBordi Built-In
(1)
Floor Load
Delivery Weight
Kg/m 2
Kg.
295
195
PRE-INSTALLATION CARD
Delivery Volume
m 3
1,5
Art. T12 - iBordi
Built-In
(1900 x 1000)
Measurements in mm.
Siphon
160
1/2
