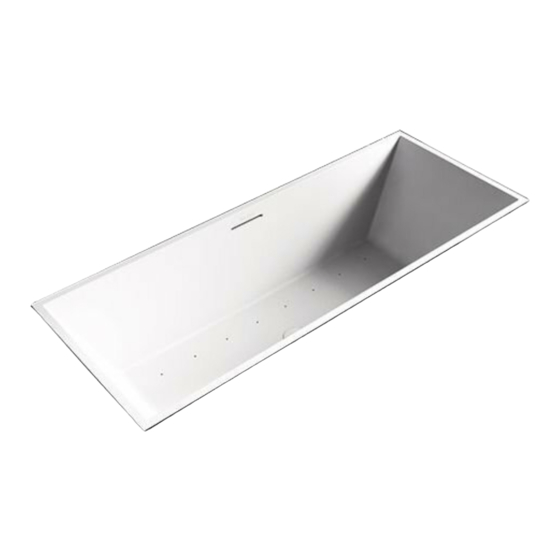

Teuco Hydroline T50 Pre-Installation Chart

67101076400 2015.02
Measurements in mm
- Connection of water mixed for ½" water sheet spout
- Electrical connection
N.B. Measurements must be taken once the floors and walls are finished. For the
correct operation of the product, we recommend installing it on surfaces where
floor level heating is not used.

BATHTUB INSTALLATION

It is advisable to position the bathtub, make the necessary connections and
check the water-tightness of the system before building the perimeter walls.
Before building the perimetre walls, it is advisable to position the bathtub and
make the necessary connections. It is mandatory to create a removable panel
on the side of the tank (l), as shown in the relevant picture, which allows both
system inspection and ventilation; the panel must be provided with openings,
of at least 0,05 sqm in total, to allow system ventilation. Build the perimeter
wall also on taps and control side and always provide an inspection panel (J)
to carry out system maintenance operations, as shown in the picture. When
making the panel, follow the dimensions indicated in the diagram. The panel must
be fastened securely in place (e.g. with screws) so that a tool must be used to
remove it, as provided for by current safety standards. Envisage a clearance of at
least 40 cm in front of the removable panels.
Net Weight Floor Load
kg kg/m 2
68 450

HYDRAULIC CHARACTERISTICS

Water capacity (1) Emptying time (2)
lt min.
310 9
(1) At overflow level - (2) Measurement taken at Teuco siphon outlet, with the bathtub filled up to overflow level.
1/2

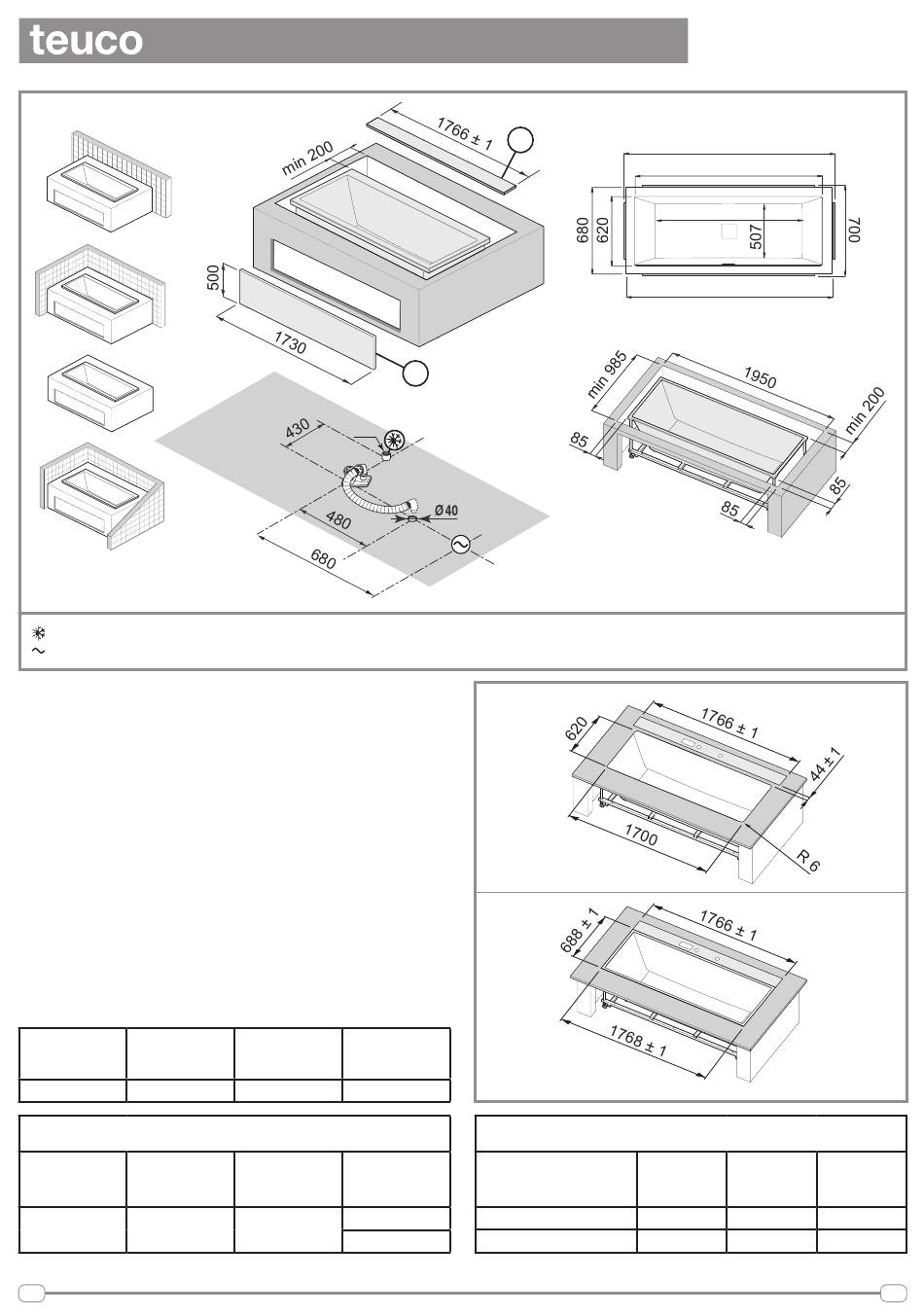

PRE-INSTALLATION CHART
I
1/2"
Delivery Weight Delivery dimensions
kg cm
101 191 x 82 x 83
Overflow water flow
rate
No. of Jets
l/min.
-
32
8
J
I, J - Inspection and ventilation panels

ELECTRICAL CHARACTERISTICS

K074 (optional)
MY / MY-F
Art. T50
Hydroline (h: mm 590)
1780
1700
1295
1760
Facing for sunken
installation
Facing for flush
installation
Power consumption
V Hz
220 - 240 50/60
220 - 240 50/60
W
15
1000
1
