Please complete these steps to use the RAD-Star as a media converter:
1. Connect BroadR-Reach Cable to RAD-Star: Attach the Mini50 connector on a
BroadR-Reach cable to the BR MSTR port if your ECU is configured as a slave device,
or BR SLAVE if it is configured as a master; Figure 16 shows an example of the former.
Note that some devices can operate as master or slave, so you can use either port. You
should hear a click when the plug snaps into place.

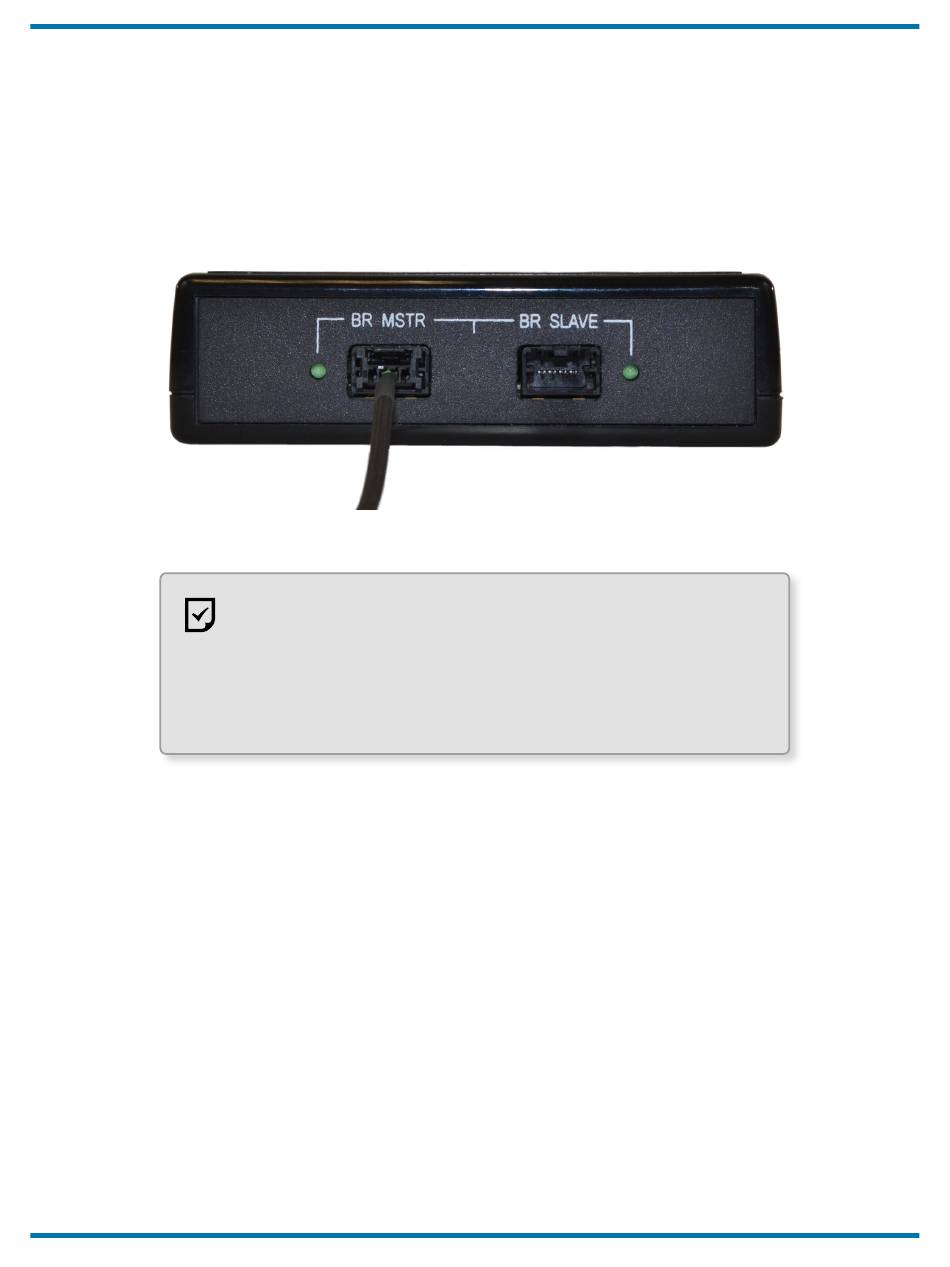

Figure 16: Connecting a BroadR-Reach Cable to the RAD-Star BR MSTR Port.
Star doesn't work, you'll know you chose incorrectly; the hardware
will not be damaged, and you can simply swap to the other port. If
you change which BroadR-Reach port you use, remember to also
change the Ethernet port you connect to as well.
2. Connect BroadR-Reach Cable to ECU: Attach the other end of the BroadR-Reach
cable to the ECU.
3. Connect Ethernet Cable to RAD-Star: If you used the BR MSTR port in Step 1,
connect one end of a standard Ethernet cable to the RAD-Star's MASTER conventional
Ethernet port. If you used the BR SLAVE port in Step 1, instead connect it to the RAD-
Star's SLAVE Ethernet port. Figure 17 shows the MASTER port being used.
