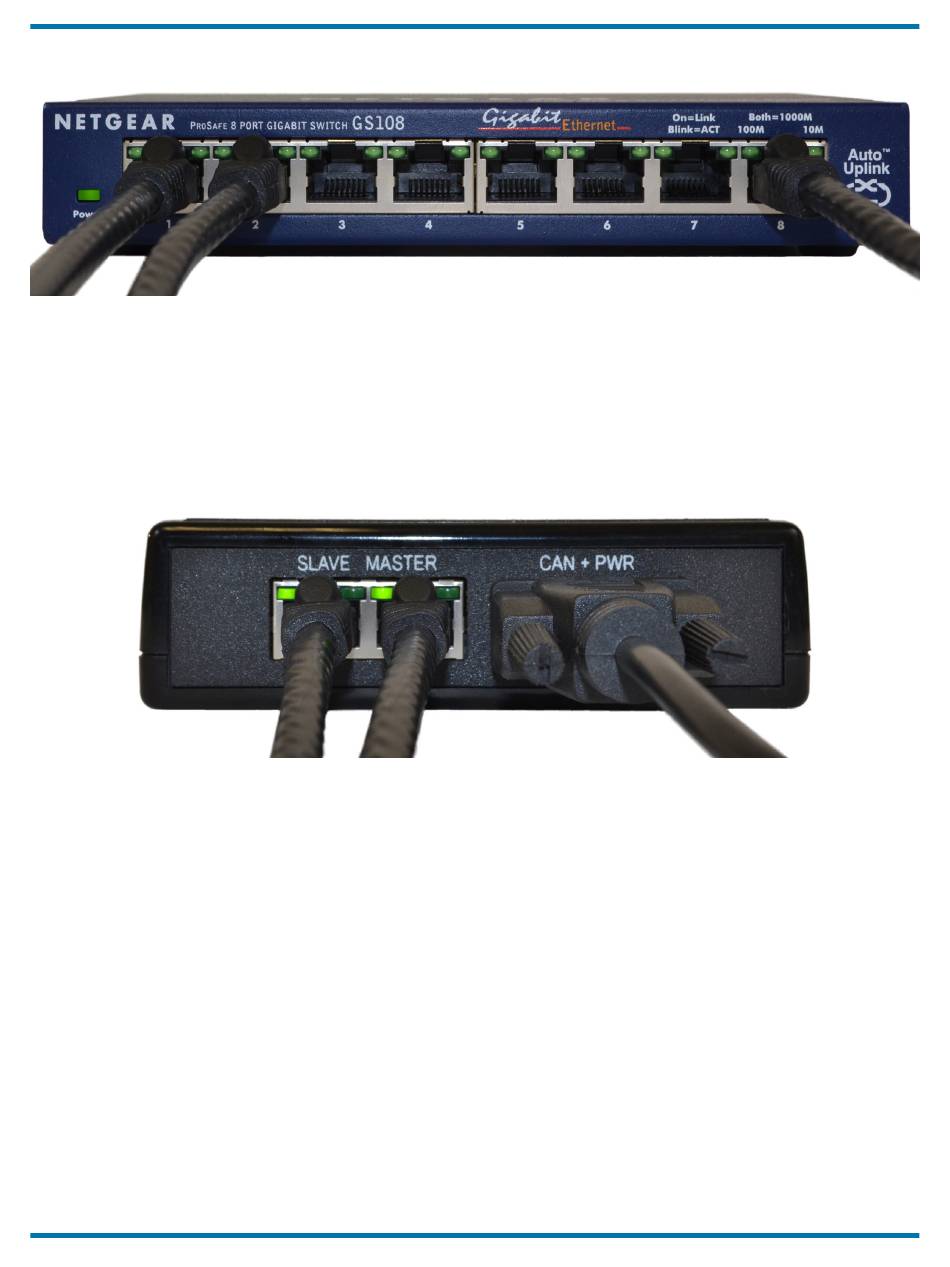

Figure 12: Connecting Ethernet Cables to the Ethernet Switch.
6. Connect Power Supply to RAD-Star: Attach the cable coming from your DC power
supply to the RAD-Star as shown in Figure 13. Assuming that the power supply is
turned on, you should see the link LEDs light up for the RAD-Star's two Ethernet
connections.
Figure 13: Connecting Power Cable to the RAD-Star.
Your RAD-Star is now ready to be used as an active tap; Figure 14 shows a complete sample
configuration. If you experience any issues setting up the hardware, please refer to the
enclosed troubleshooting and support information.
