Intrepid Control Systems RAD-Star User Manual page 13

Switch
or ECU
ECU

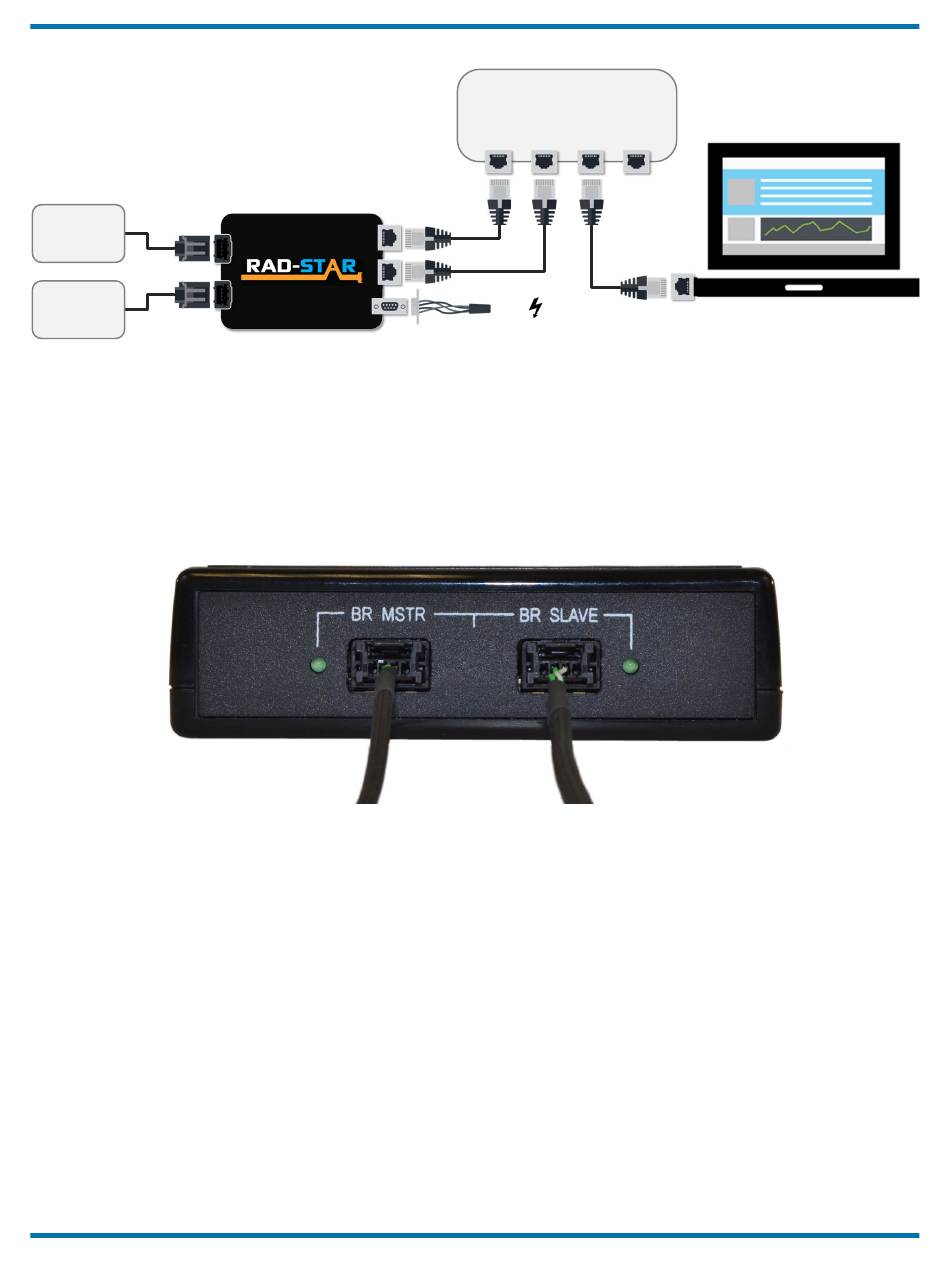

Figure 8: RAD-Star Active Tap Hookup Diagram.
Please follow these steps to complete the necessary connections:
1. Connect BroadR-Reach Cables to RAD-Star: Attach the Mini50 connectors on each
of the two BroadR-Reach cables to the BR MSTR and BR SLAVE jacks on the RAD-
Star (Figure 9). You should hear an audible click as each plug is seated.
Figure 9: Connecting BroadR-Reach Cables to the RAD-Star.
2. Connect BroadR-Reach Cables to ECU/Switch Ports: If you are testing a link
between an ECU and switch, attach the other ends of the BroadR-Reach cables to the
ECU and switch ports of that link. If testing a link between two ECUs, attach the cables
to those ECUs.
When connecting your Automotive Ethernet devices, attach the ECU or switch port configured
internally as a master to the BR SLAVE port of the RAD-Star, and the device configured as
slave to the BR MSTR port. Note that some AE devices can operate as master or slave and
can thus be connected to either port.
Version 1.2 - June 1, 2016
RAD-Star User's Guide
Ethernet
Switch
12V
10 © 2015-2016 Intrepid Control Systems, Inc.
