Summary of Contents for Uniden DSC Series

  • Page 2: Maritime Radio Services Operation

    Maritime Radio Services Operation This transmitter will operate on channels/frequencies that have restricted use in the United States. The channel assignments include frequencies assigned for exclusive use of the U.S. Coast Guard, use in Canada, and use in international waters. Operation in these frequencies without proper authorization is strictly forbid- den.

  • Page 3: Controls And Indicators

    Controls and Indicators Controls L/M CHANNEL Selectors - These controls are used to select the desired communication channel. LED Display - Indicators for Channel Number, 16, INT, 1W and TX. SQUELCH - Controls the background noise when a signal is not received.

  • Page 4: Rear Panel Connectors

    Indicators 16 - Indicates that Channel 16 is selected. INT - Indicates International Channel Mode. LO - Indicates transmitted output is 1 Watt. TX (Transmit) - Indicates PTT switch is pressed. LED Numerical Channel Display - Indicates Channel Number in use.

  • Page 5: Table Of Contents

    Controls and Indicators ....Front Cover Foldout Introduction ......... . . 2 Features .

  • Page 6: Introduction

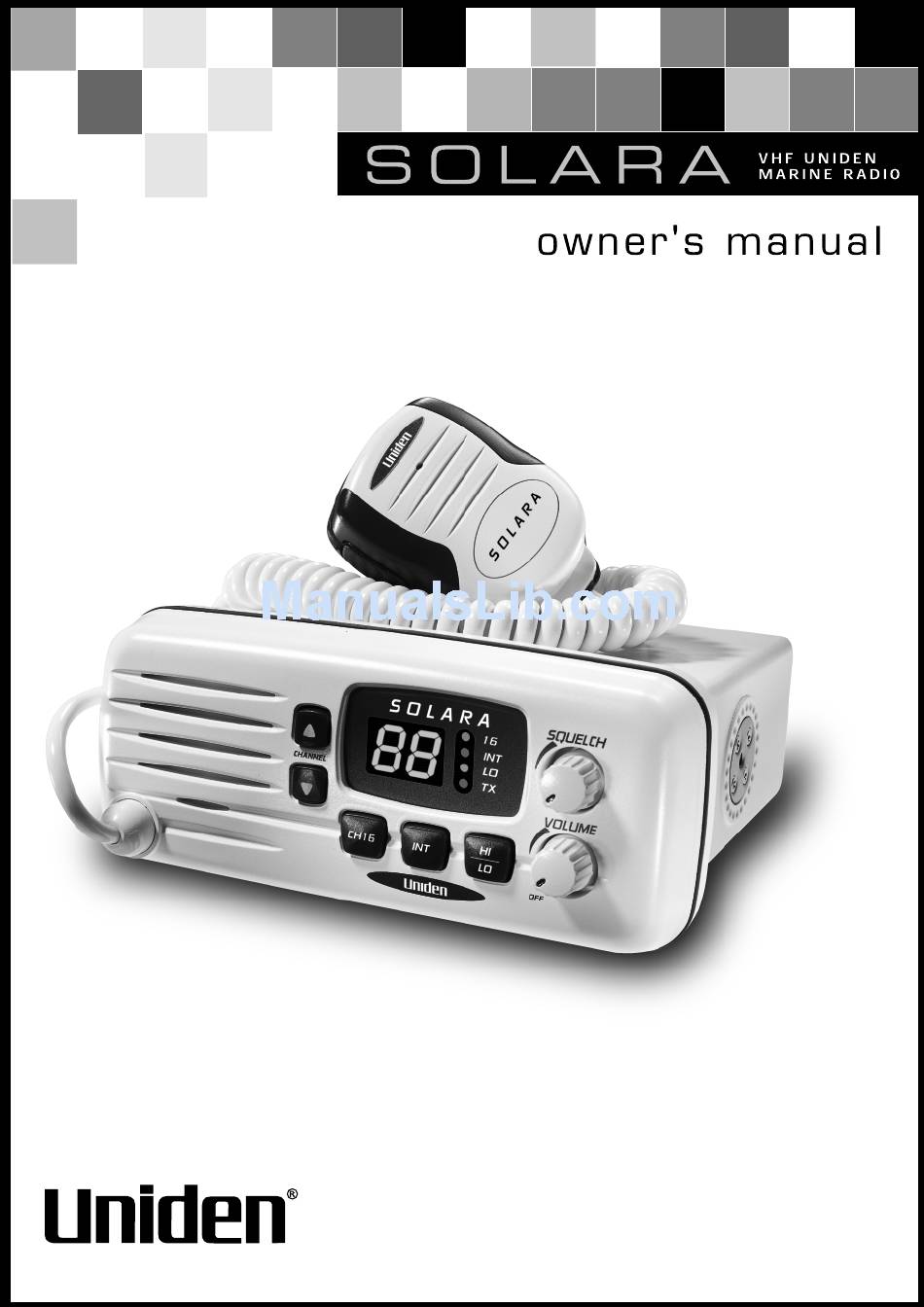

    The Uniden SOLARA VHF marine radio transceiver is designed to provide you with years of trouble-free service. It’s rugged components and materials are easily capable of withstanding the harsh marine environment. The transceiver has a splashproof housing to protect the electronics, and the unit may be mounted in several convenient locations on-board your vessel using the universal mounting bracket.

  • Page 7: Included With Your Solara

    Included with your SOLARA ’ Microphone Hanger SOLARA Owner s Manual and Screws Other Printed Material Mounting Bracket 3.5mm Mini Plug and Knobs and Spare Fuse...

  • Page 8: Installation

    Antenna Considerations Many different antennas are available for your radio. We recommend that you consult with your Uniden dealer in determining a suitable antenna for your vessel and range requirements. In general when choosing or installing your antenna, consider these guidelines: •...

  • Page 9: Engine Noise Suppression

    If the noise continues, it may be necessary to install a noise suppression kit. Contact your Uniden dealer for more information. Installing the SOLARA After choosing a location, position the radio (with the bracket, microphone, power cord, antenna cable, and external speaker lead, if installed) to make sure it fits.
  • Page 10 Connect the black wire of the power cord to the negative (–) battery terminal or to a ground source in your vessel’s fuse box. Install the radio in the mounting bracket and connect the antenna cable and accessories to their appropriate jacks and connectors.

  • Page 11: Operation

    Setting the Squelch To turn the unit ON, rotate VOLUME clockwise. Adjust volume to a comfortable level. Note: You must select a channel which is not in use before setting the SQUELCH control on your radio. Think of the Squelch control as a gate. If you turn SQUELCH fully clockwise it raises the “Squelch Gate”...

  • Page 12: Selecting A Channel

    To set the “Squelch Gate” to the desired level, turn SQUELCH counterclockwise until you hear noise. Then turn SQUELCH back clockwise just until the noise stops. Now only strong signals get through. Selecting a Channel When you turn on your SOLARA, it is automatically on Channel 16.

  • Page 13: Instant Channel 16 Communications

    Instant Channel 16 Communications You can access Channel 16 instantly while tuned to another channel using the CH16 button. For example, suppose you are on Channel 63. Press CH16. Press CH16 again, to return to the previous channel. Note: Each time CH16 is pressed a short tone sounds. USA/INT Channels The SOLARA can transmit and receive both USA and International frequencies.

  • Page 14: Transmitting

    Transmitting The SOLARA transmits on 54 marine frequencies and receives 80 different marine frequencies. Certain channels — the weather channels, channel 70 of both the USA and International frequencies, and channel 15, 81 and 83 of the USA frequencies — are receive only. Your radio will not transmit on these channels.

  • Page 15: Transmitter Time-Out

    If necessary, you can override the LO power output setting during an emergency situation. Warning: This is an emergency procedure and should be used accordingly. Press the PTT button on your microphone. Press and hold HI/LO. Releasing the HI/LO returns to LO output. Transmitting with the SOLARA Press the PTT button, to activate the transmitter.

  • Page 16: Troubleshooting

    If the SOLARA does not perform to your expectations, try the suggestions listed below. If you cannot get satisfactory results, call the Uniden Customer Service Center at (800) 586-0409, 8:00 a.m. to 5:00 p.m., Central Standard Time, Monday through Friday.

  • Page 17: Care And Maintenance

    Since you are responsible for the continued FCC technical compliance of your radio, we recommend that you arrange for periodic performance checks with your Uniden Marine Dealer. These replacement parts are available for your SOLARA by contacting your Uniden dealer or Uniden America Corporation. ’ Owner s Manual...

  • Page 18: Service

    Service Should you find it desirable or necessary to service your SOLARA, we suggest you contact the Uniden dealer where your purchase was made. Your dealer will be able to assist you with complete service information. If you require service that is within the terms of your warranty you should present a copy of your receipt to your dealer to authenticate your claim.

  • Page 19: Specifications

    General Channels Controls Status Indicators Channel Display Channel Selector Buttons Connectors Size Weight Supply Voltage Antenna Impedance Microphone Speaker Operating Temperature Range Shock and Vibration FCC Approvals Transmitter Power Output Power Requirement Modulation Signal-to-Noise Audio Distortion Spurious Suppression Output Power Stabilization Frequency Range Frequency Stability: Receiver...

  • Page 20: Year Limited Warranty

    WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”) ELEMENTS OF WARRANTY: Uniden warrants, for three years, to the original retail owner, this Uniden Product to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below. WARRANTY DURATION: This warranty to the original user shall terminate and be of no further effect 36 months after the date of original retail sale.
  • Page 21 VHF FM Marine radiophone Channels and Functions (International Channels) CHANNEL FREQUENCY (MHz) DESIGN TRANSMIT – 163.275 – 162.550 – 162.400 – 162.475 – 162.425 – 162.450 – 162.500 – 162.525 – 161.650 – 161.775 156.050 160.650 156.100 160.700 156.150 160.750 156.200 160.800 156.250...
  • Page 22 VHF FM Marine radiophone Channels and Functions (USA Channels) CHANNEL FREQUENCY (MHz) DESIGN TRANSMIT RECEIVE – 163.275 – 162.550 – 162.400 – 162.475 – 162.425 – 162.450 – 162.500 – 162.525 – 161.650 – 161.775 156.050 156.050 156.100 156.100 156.150 156.150 156.200 156.200...
  • Page 23 Thank you for purchasing a Uniden Marine Radio. © 2001 Uniden America Corporation, Fort Worth TX All rights reserved. Printed in the Philippines UTZZ01880ZA...
