t Operating Instructions
Welder
151/2
Art.-Nr.: 15.440.56
I.-Nr.: 01018
CEN
Rot: 0%C; 100%M; 100Y; 0%K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CEN 151/2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EINHELL CEN 151/2

Summary of Contents for EINHELL CEN 151/2

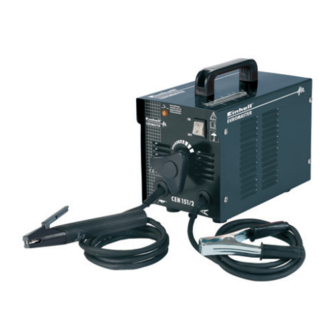

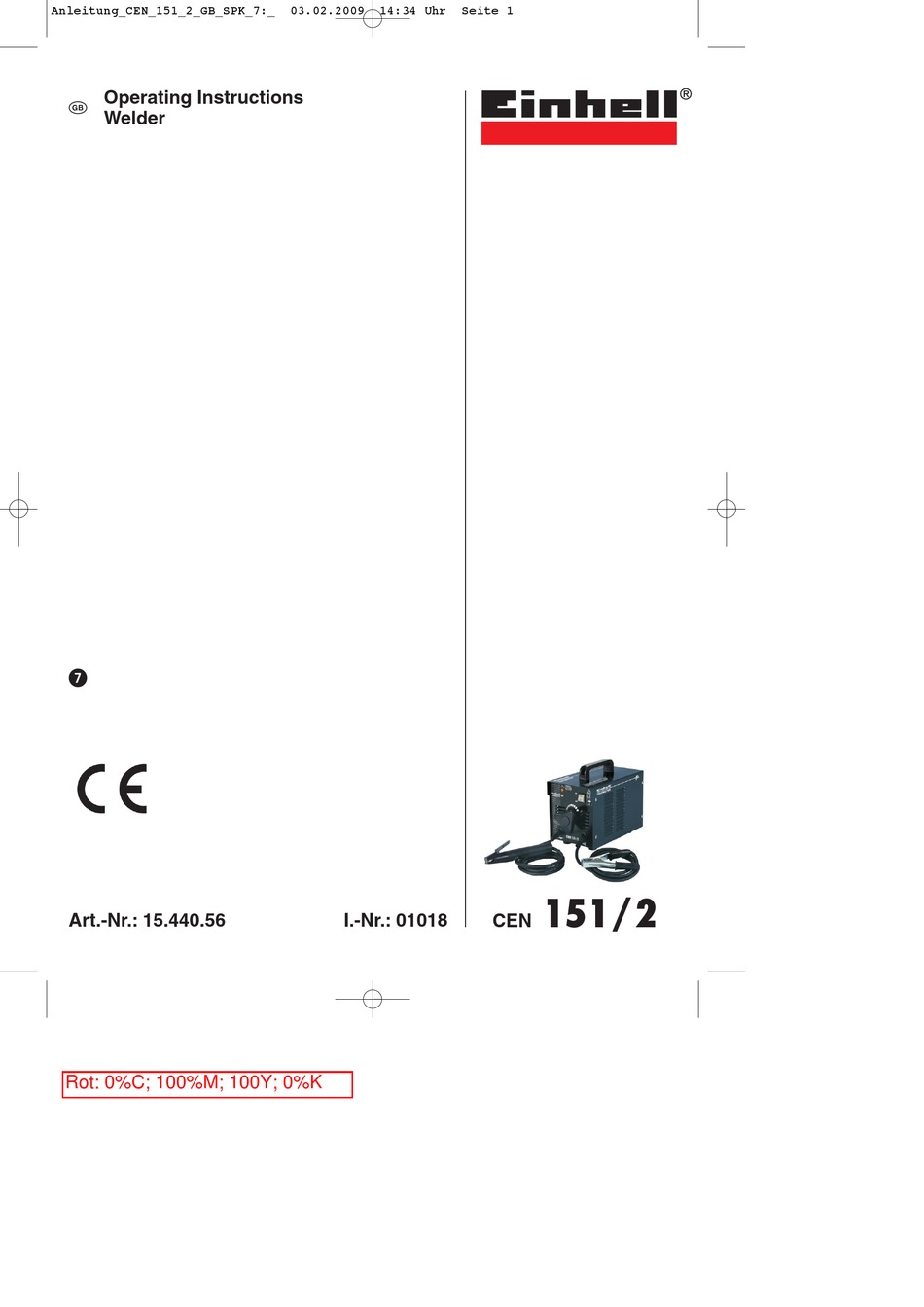

  • Page 1 Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:34 Uhr Seite 1 t Operating Instructions Welder 151/2 Art.-Nr.: 15.440.56 I.-Nr.: 01018 Rot: 0%C; 100%M; 100Y; 0%K...
  • Page 2 Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:34 Uhr Seite 2 Before you start to read the instructions, fold out the pages with the illustrations and then familiarize yourself with all the functions of the equipment. Read and follow the instructions and safety information before using for the first time!
  • Page 3 Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:34 Uhr Seite 3...
  • Page 4 Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:34 Uhr Seite 4...
  • Page 5 Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:34 Uhr Seite 5...

  • Page 6: Table Of Contents

    Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:34 Uhr Seite 6 Table of contents: Page Layout Items supplied Important information 7-10 Symbols and technical data Installation Instructions Mains connection Welding preparations Welding Overheating guard 10. Maintenance and transport 11. Ordering spare parts 12. Disposal and recycling 13.

  • Page 7: Layout

    Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:35 Uhr Seite 7 purposes. Important. When using the equipment, a few safety Please read the operating instructions carefully precautions must be observed to avoid injuries and observe the information provided.It is and damage. Please read the complete important to consult these instructions in order operating instructions and safety regulations to acquaint yourself with the equipment, its...
  • Page 8 Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:35 Uhr Seite 8 live parts may result in dangerous Warning! conditions and reduce the quality of the If the supply mains and circuits are overloaded, welding work. other consumers may suffer interference Arc welding generates sparks, molten during the welding work.
  • Page 9 Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:35 Uhr Seite 9 arc also gives off UV radiation. Without relevant regulations. To comply with these proper protection, this invisible ultraviolet regulations, only fuses or circuit breakers radiation causes very painful conjunctivitis, suitable for the cross-section of the cables which will only be noticeable several hours may be used.

  • Page 10: Symbols And Technical Data

    Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:35 Uhr Seite 10 Protection from radiation and burns Average reset time [s] Caution! Line input; number of phases, 1. Provide information about the risk to eyes the alternating current symbol at the working site in the form of a poster 1 ~ 50 Hz and the rated frequency value with the wording “Caution –...

  • Page 11: Installation Instructions

    Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:35 Uhr Seite 11 5. Installation Instructions wish to weld as if you were striking a match. This is the best method of igniting the arc. Check on a test part that you have the correct Assembling the welding screen (Fig. 2-5) electrode and current strength.

  • Page 12: Maintenance And Transport

    Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:35 Uhr Seite 12 10. Maintenance and transport no longer wants to keep the equipment in his possession and does not want to return it. In this case the old equipment can be taken to a Remove dust and dirt from the machine at recycling depot where it is disposed of in regular intervals.

  • Page 13: Circuit Diagram

    Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:35 Uhr Seite 13 13. Circuit diagram...

  • Page 14: Declaration Of Conformity

    14:35 Uhr Seite 14 14. Declaration of conformity Konformitätserklärung Einhell Germany AG · Wiesenweg 22 · D-94405 Landau/Isar erklärt folgende Konformität gemäß EU-Richtlinie dichiara la seguente conformità secondo la und Normen für Artikel direttiva UE e le norme per lʼarticolo declares conformity with the EU Directive attesterer følgende overensstemmelse i...

  • Page 15: Warranty Certificate

    Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:35 Uhr Seite 15 15. WARRANTY CERTIFICATE Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card.
  • Page 16 Anleitung_CEN_151_2_GB_SPK_7:_ 03.02.2009 14:35 Uhr Seite 16 Einhell UK Ltd Morpeth Wharf Twelve Quays Birkenhead, Wirral CH41 1NG Tel. 0151 6491500, Fax 0151 6491501 EH 02/2009 (01)
