Summary of Contents for Kolibri KCD-2000

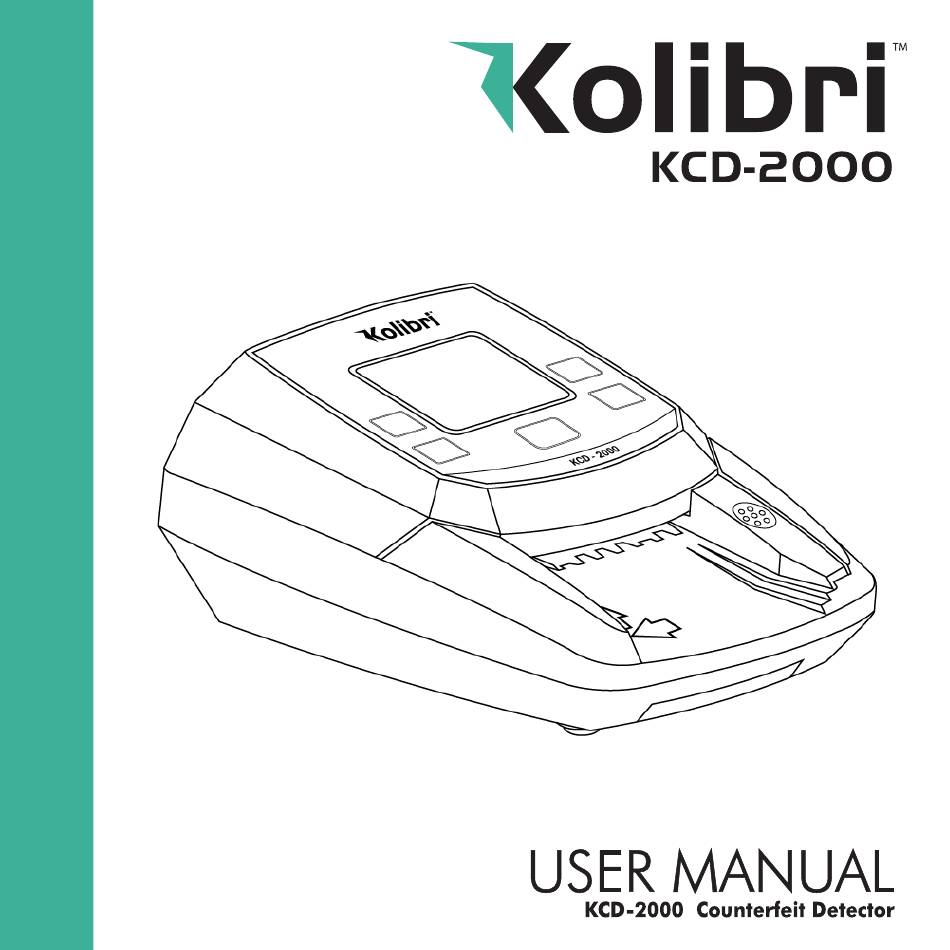

- Page 2 While every effort has been made to include all features into this user manual, specifications stated may not reflect all the features of the later software versions. If you have questions about your KCD-2000 and its operation, please contact technical support at www.kolibriusa.com/contact/. DO NOT DISPOSE WARNING: HAZARDOUS CHOKING HAZARD.
-
Page 3: Table Of Contents
1.1 About the KCD-2000 _____________________________________________________1 1.2 Important Safety Notes ___________________________________________________1 1.3 Box Contents ____________________________________________________________2 1.4 Specifications ____________________________________________________________2 1.5 Views of the KCD-2000 __________________________________________________3 1.6 Home Screen ____________________________________________________________4 2. GETTING STARTED 2.1 Powering Up ____________________________________________________________6 2.2 Checking a Bill’s Condition _______________________________________________6 2.3 Inserting the Bill _________________________________________________________7... -
Page 4: Introduction

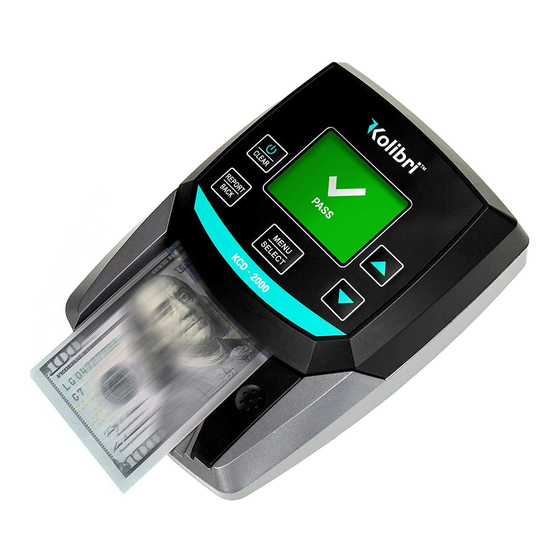

About the KCD-2000 Thank you for choosing the KCD-2000 4-way counterfeit detector. The KCD-2000 is an automatic and powerful tool for identifying suspected counterfeit bills. It reads the denomination of the bills with infrared sensors to catch suspected counterfeit bills and give a full on-screen report of the genuine bills counted. With its advanced sensors, the KCD-2000 also verifies magnetic marks and UV signatures. -
Page 5: Box Contents
Box Contents KCD-2000 4-Way Counterfeit Detector AC/DC Power Adapter User Manual 1.4 Specifications Weight: 1.3 lbs (0.59 kg) Dimensions: 6.9” x 5” x 3.2” (175mm x 128mm x 81mm) Sensors: Ultraviolet (UV), Magnetic (MG), Infrared (IR) Power Supply: AC/DC adapter, 12V 500mA... -
Page 6: Views Of The Kcd-2000
Views of the KCD-2000 Screen Control Panel Magnetic Bill Guide Front Slot Rear Slot Power Input Jack Micro USB Port TOP VIEW BACK VIEW... - Page 7 CONTROL PANEL Function Display Shows detection outcome POWER Button Turns unit ON/OFF by pressing and holding down for three seconds CLEAR Button Resets the count REPORT Button Shows the detailed report of bills counted BACK Button Goes back to home screen from menu or report screen MENU Button Shows settings...
-
Page 8: Home Screen
Home Screen Currency Selected Direction of Ejection Note Value/Instruction Message (in Value Mode) Total value counted TOTAL VALUE:... -
Page 9: Getting Started
Ensure the lid is properly closed. Connect the AC/DC adapter to the KCD-2000 and plug the adapter plug into the power outlet. Turn the KCD-2000 on by pressing the POWER button. The unit will start loading the system after a couple of seconds and conduct a short self-test. -
Page 10: Inserting The Bill
Inserting the Bill KCD-2000 is a 4-way detector, meaning that bills can be inserted in any 4 possible orientations. After the bill is positioned in the insertion slot properly (see images below), the detector will automatically feed and scan the bill. If a bill is recognized as authentic, the following will occur: 1.The value of the scanned bill will be displayed (if in value mode) -
Page 11: Direction Of Ejection
Direction of Ejection The direction that the KCD-2000 ejects bills can be changed from front to back by pressing the DIRECTION buttons or by selecting the option in the menu. The direction the bill will be ejected will be displayed on the top right corner of the screen. -
Page 12: Operating Modes
OPERATING MODES Value Mode After turning the KCD-2000 on, it will default to Value mode. In this mode the unit displays: The value of the scanned bill in green in the middle of the screen if and the bill is recognized... -
Page 13: Functions
FUNCTIONS Report This function is available by pressing the REPORT button and provides an on-screen report of the total amount of each denomination counted, the value of the counted bills of that denomination, and a grand total value of all bills counted. Bills that fail are not recorded on the report screen. -
Page 14: Maintenance And Troubleshooting
Most operational problems can be avoided by regular care and preventative maintenance. Taking regular care of the KCD-2000 will significantly increase its lifetime. For best results, it is recommended that to use an air duster and a soft bristle brush to remove any dust or debris from the interior of the unit. - Page 15 UV Sensor IR Sensors Magnetic Sensors Note: that several factors can cause a KCD-2000 to not recognize a genuine bill: Overly wrinkled, overly creased and overly worn bills. If the unit is dropped or bumped. A sudden change in temperature...
-
Page 16: Troubleshooting
Bills are jammed Turn off the unit. Open lid. Use an air duster or soft brush to clean the interior sensors of the KCD-2000. See section 5.1 ‘’MAINTENANCE’’. Look for any foreign objects inside the unit (paper clips, rubber bands, etc.). Remove foreign... -
Page 17: Warranty
Warranty The KCD-2000 is warrantied for a period of one year from the date of purchase. In most cases a unit malfunction can easily be corrected by performing a thorough cleaning. • Customer should allow the manufacturer the time and opportunity to test and diagnose the machine to determine warranty and non-warranty claims •... - Page 18 Kolibri ©2018 Printed in China. Specifications subject to change without notice. www.KolibriUSA.com FNKCD2000082018...
