Summary of Contents for Kolibri Bishop

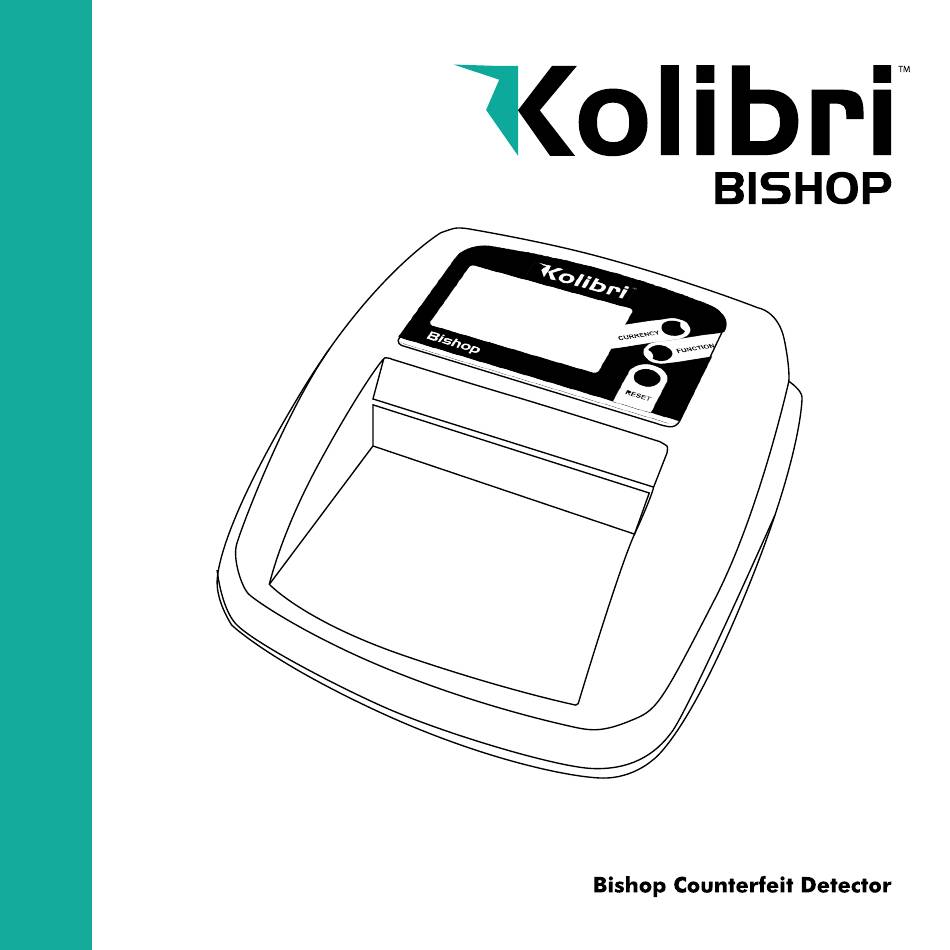

- Page 1 USER MANUAL...
- Page 2 This manual contains important information on safety measures and operational features of the Kolibri Bishop. Please read it carefully before operating your counterfeit detector and keep it handy for future reference.
-
Page 3: Table Of Contents
Table of contents: 1. INTRODUCTION 1.1 About the Kolibri Bishop __________________________________________________ 2 1.2 Box contents _____________________________________________________________ 2 1.3 Front and rear views ______________________________________________________ 3 1.4 Specifications ____________________________________________________________ 4 1.5 Important safety notes ___________________________________________________ 4 2. GETTING STARTED 2.1 Powering up _____________________________________________________________ 5 2.2 Checking a bill’s condition________________________________________________ 5... -
Page 4: Introduction

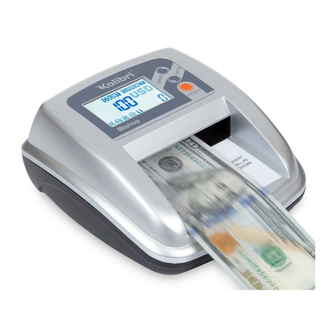

INTRODUCTION 1.1 About the Kolibri Bishop Thank you for purchasing the Kolibri Bishop, a powerful tool for identifying counterfeit bills. The Kolibri Bishop verifies infrared security marks, the most reliable anti counterfeit protection available for paper currency. With its advanced sensors, the Kolibri Bishop also verifies magnetic marks and UV signatures. -
Page 5: Front And Rear Views
1.3 Front and rear views 1 Front slot 2 Display 3 Currency Button 4 Function Button 5 Reset Button 1 Rear slot 2 PC connection jack 3 AC adaptor power jack 4 ON/OFF power switch Kolibri Bishop Counterfeit Detector... -
Page 6: Specifications
1.4 Specifications Weight 1.2 Lbs Dimensions 6.3” x 5.7” x 2.7” Sensors Internal IR, UV, and MG Sensors Power Consumption >10W Power Supply AC/DC adapter, 12V 650mA Applicable Currency United States Dollar 1.5 Important safety notes When operating this unit, please observe the following basic safety procedures: •... -
Page 7: Powering Up
Connect the AC/DC adapter to the Kolibri Bishop and plug the adapter plug into the power outlet. Turn the Kolibri Bishop on by flipping the ON/OFF switch on the rear of the unit. The unit will beep and conduct a short self-test. The screen will display the default count screen, indicating it is ready to operate. -
Page 8: Authenticating A Bill
2.4 Authenticating a bill After the bill is positioned in the insertion slot, the detector will automatically feed and scan the bill. If a bill is recognized as authentic, the following will occur: 1. The machine will emit a single confi rmation beep 2. -
Page 9: Maintenence And Warranty
¼ inch of the duster nozzle through the front bill insertion slot to blow away any debris that may have accumulated inside the unit. Do not insert the nozzle more than ¼ inch into the unit as it may damage the sensor mechanisms inside the Kolibri Bishop unit. Kolibri Bishop Counterfeit Detector... -
Page 10: Troubleshooting
A sudden change in temperature or humidity • Extended period of non-use. If the Bishop consistently refuses to recognize genuine bills, turn the unit off, unplug it from the wall. Reinsert the plug and turn the machine on to perform a reset. -
Page 11: Warranty
Warranty The Kolibri Bishop is warranted for a period of one year from the date of purchase. In most cases a unit malfunction can easily be corrected by performing a thorough cleaning. This requires disassembly of the unit to clean each individual sensor.
