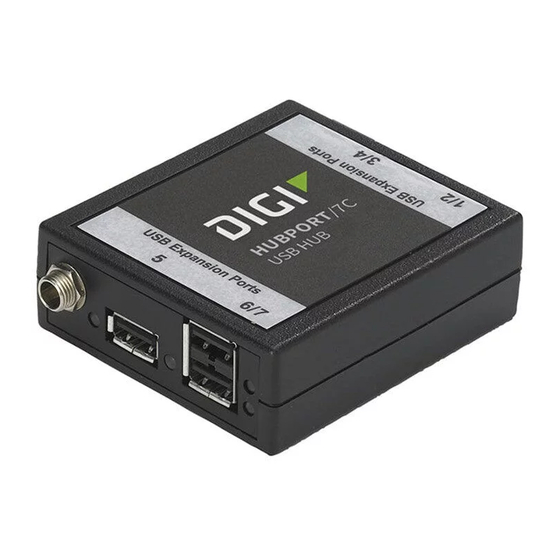

- Page 1 Hubport® USB Hub Installation Guide...
- Page 2 Information in this document is subject to change without notice and does not represent a commitment on the part of Digi International. Digi provides this document “as is,” without warranty of any kind, expressed or implied, including, but not limited to, the implied warranties of fitness or merchantability for a particular purpose.
-
Page 3: Table Of Contents
Contents Get started Introduction to Hubs Connect to your Hubport Installing Hubport drivers Hardware specifications and device LEDs Hubport/4c/7c and Hubport/4c/7c DC (Industrial) Hubport/14 Hubport/SuperSpeed Hubport® USB Hub Installation Guide... - Page 4 Get started Introduction to Hubs Connect to your Hubport Installing Hubport drivers Hubport® USB Hub Installation Guide...
-
Page 5: Get Started
USB architecture allows a cascaded multiple hub configuration with certain power limitations (explained later in this section). Digi’s Edgeport product, which is a USB-to-serial converter, can be connected to your Hubport device, enabling you to install one or more Edgeports. -
Page 6: Connect To Your Hubport
Get started Connect to your Hubport According to the USB specification, the maximum limit of hubs cascaded in a series cannot exceed five. In other words, you may have a maximum of five hubs between any device and the host. This does not mean that the maximum number of hubs in a system is five;... -
Page 7: Hardware Specifications And Device Leds
Hardware specifications and device LEDs Hubport/4c/7c and Hubport/4c/7c DC (Industrial) Hubport/14 Hubport/SuperSpeed Hubport® USB Hub Installation Guide... -
Page 8: Hubport/4C/7C And Hubport/4C/7C Dc (Industrial)
Hardware specifications and device LEDs Hubport/4c/7c and Hubport/4c/7c DC (Industrial) Hubport/4c/7c and Hubport/4c/7c DC (Industrial) Dimensions Length: 2.61 in (6.63 cm) Width: 3.00 in (7.62 cm) Height: 1.00 in (2.54 cm) Weight: 6.20 oz. (175.80 g) Environmental Hubport/4c/7c: Operating temperature: 0° C F to 55° C (32° F to 131° F) Relative humidity: 0% to 95% (non-condensing) Hubport/4c/7c DC (Industrial) Operating temperature: -40°... -
Page 9: Hubport/Superspeed
Hardware specifications and device LEDs Hubport/SuperSpeed Power requirements The Hubport/14 uses a single 120/230 VAC 50/60 Hz power input through the rear IEC 60320 inlet. The maximum power requirement of the Hubport/14 is 40 W. WARNING! HAZARDOUS VOLTAGE(Hubport/14 only). This unit contains an internal power supply. - Page 10 Hardware specifications and device LEDs Hubport/SuperSpeed Port out of operation. Blue SuperSpeed (Gen 1). Yellow Full/high speed. The unit features a green system status LED with the following color definitions: Unit out of operation. Green Unit is powered. Hubport® USB Hub Installation Guide...
