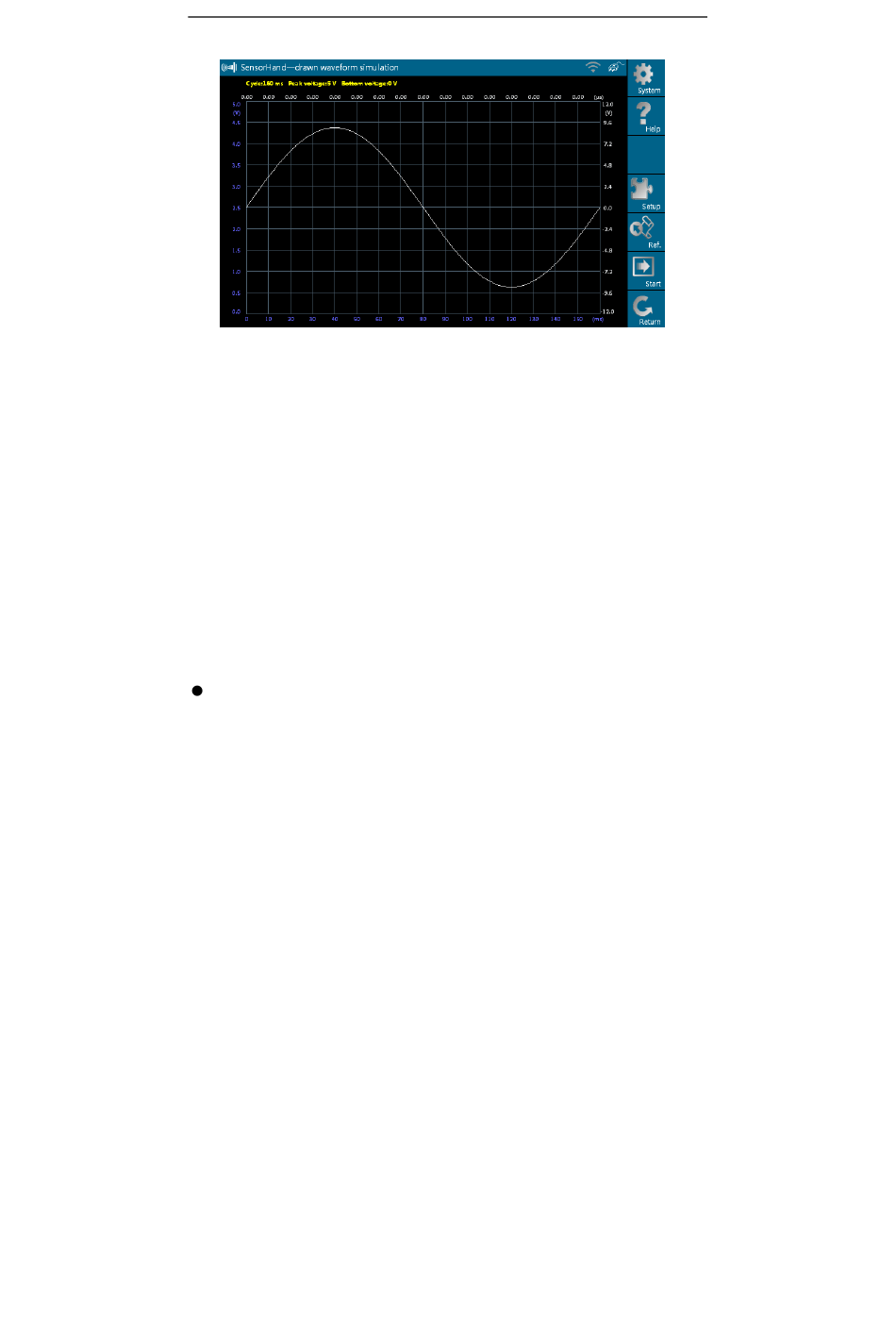

Button description:
[System]: shows desktop, views current version No, and exits the program.
[Help]: provides the operational guide for current interface.
[Draw]: includes functions of "Pencil", "Eraser", and "Empty"
[Reference]: outputs the predefined waveform. Users can refer to the
predefined waveforms.
[Start]: continues the following operation.
[Return]: goes back to the previous interface.
3.2.5 Precautions on checking vehicle sensor
Hold the connector when plugging or unplugging it. Do not pull the
cable for unplugging.
X431 GDS Sensorbox Manual
Fig.3-8
