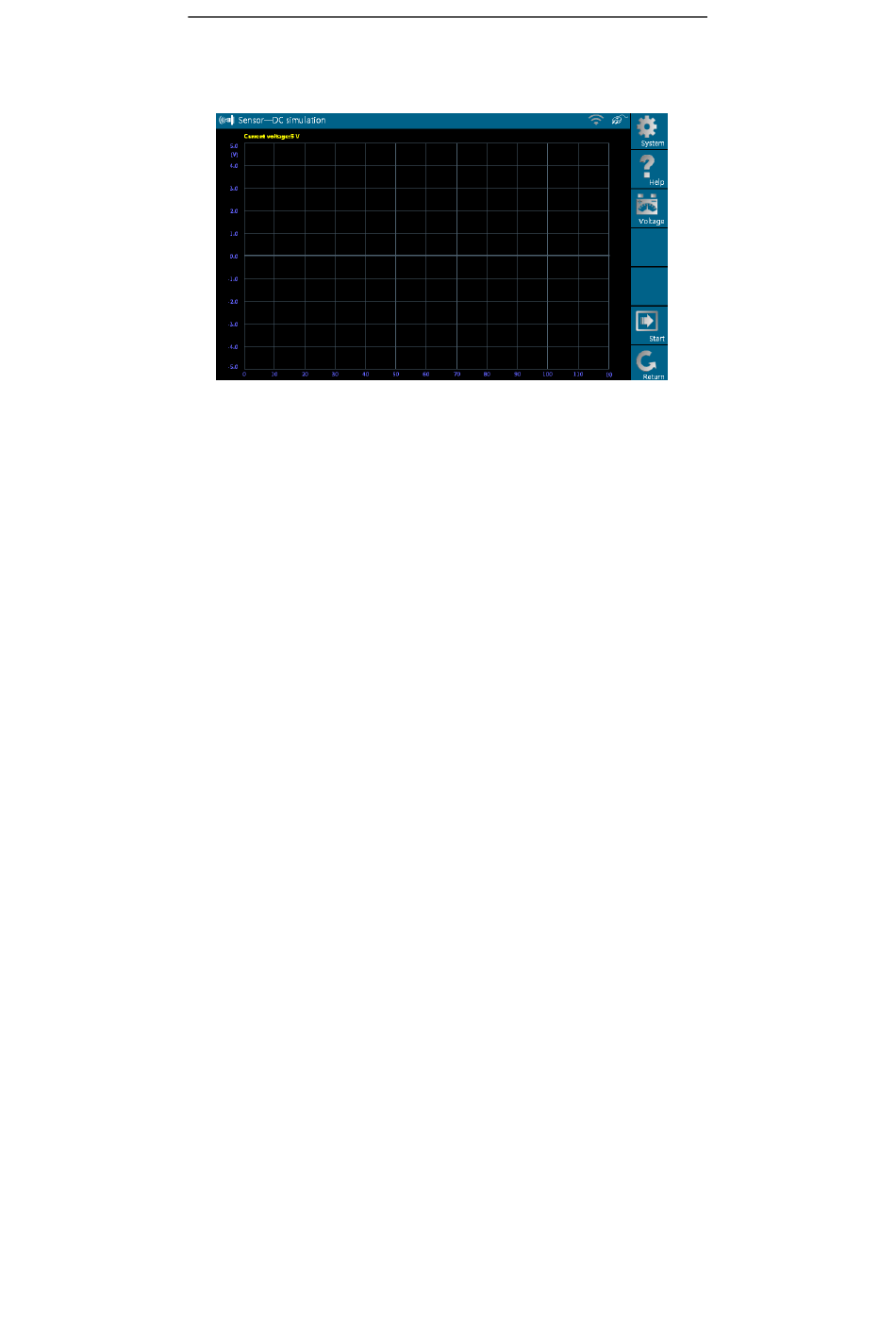

interface is as shown below Figure 3-2:
Fig.3-2
As on "Figure 3-2", click the "Voltage" button on right side, then pop up the
menu of "Voltage +" and "voltage -" which can adjust the output voltage value.
After the voltage is set according the working characteristic of sensor, click
the "Start" button, then the X-431 GDS will begin to output the simulation
voltages. The red probe is the output terminal of simulation voltage.
Button description
[System]: shows desktop function, views the current version No, exits the
program
[Help]: provides the operation guide for current interface.
[Voltage]: "Voltage +" and "voltage -" which can adjust the output voltage
9
