X431 GDS Sensorbox Manual
value.
[Start]: Continue the following operation
[Return]: returns to the previous interface.
3.2.2 Constant frequency simulation
Frequency simulation can simulate the square wave signal with pulse
frequency of 0.1 ~ 15 kHz, amplitude range of-5V ~ +5 V and duty cycle 10%
~ 90%.
On Figure 3-1, select "Constant frequency simulation", then click [Enter] to
enter the interface as shown below Figure 3-3:

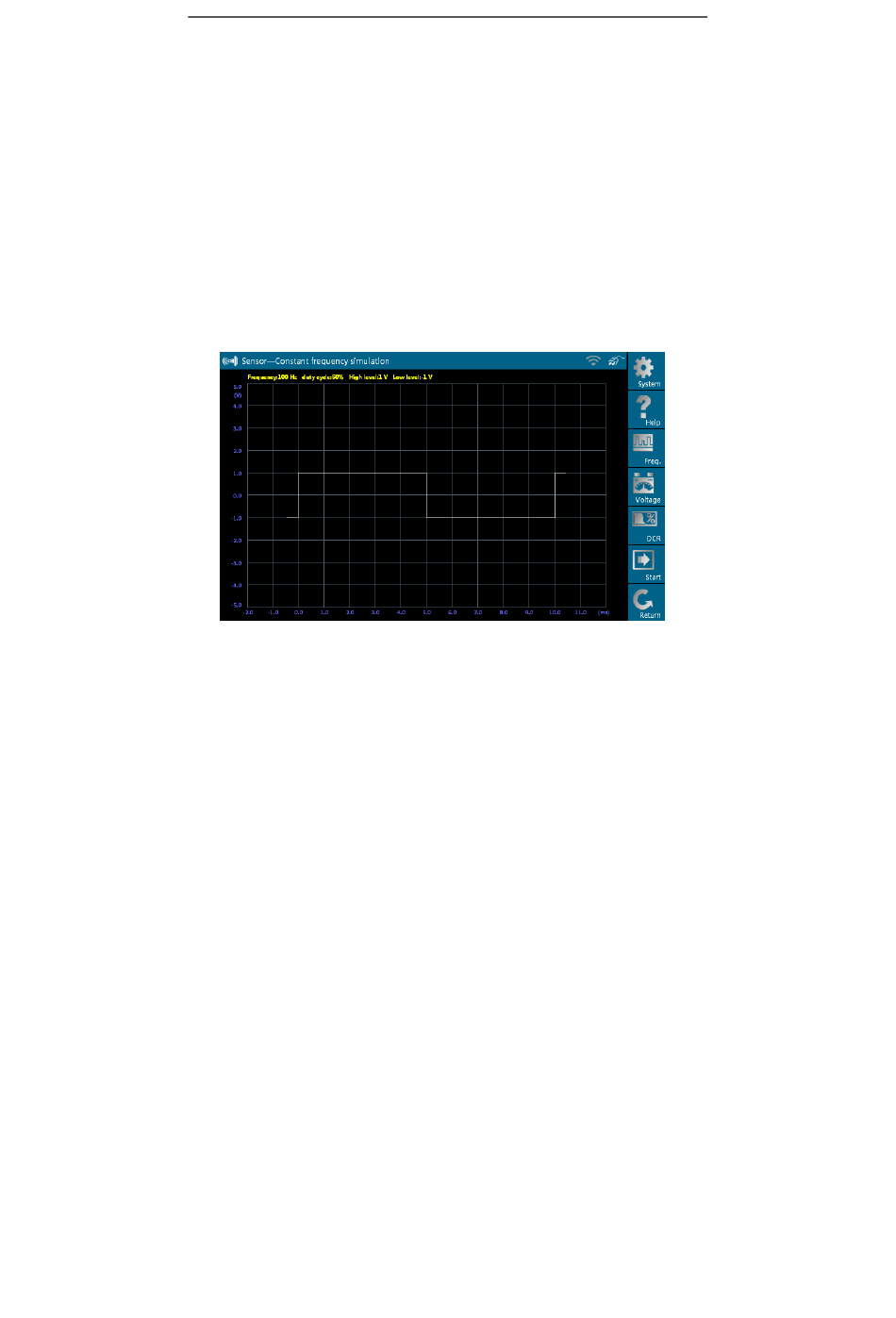

Fig.3-3
Button description
[Frequency（Hz）] The button for adjusting frequency
10
