LAUNCH
TP： Throttle Position Sensor
VAF：Volume Air Flow Sensor
VSS: Vehicle Speed Sensor

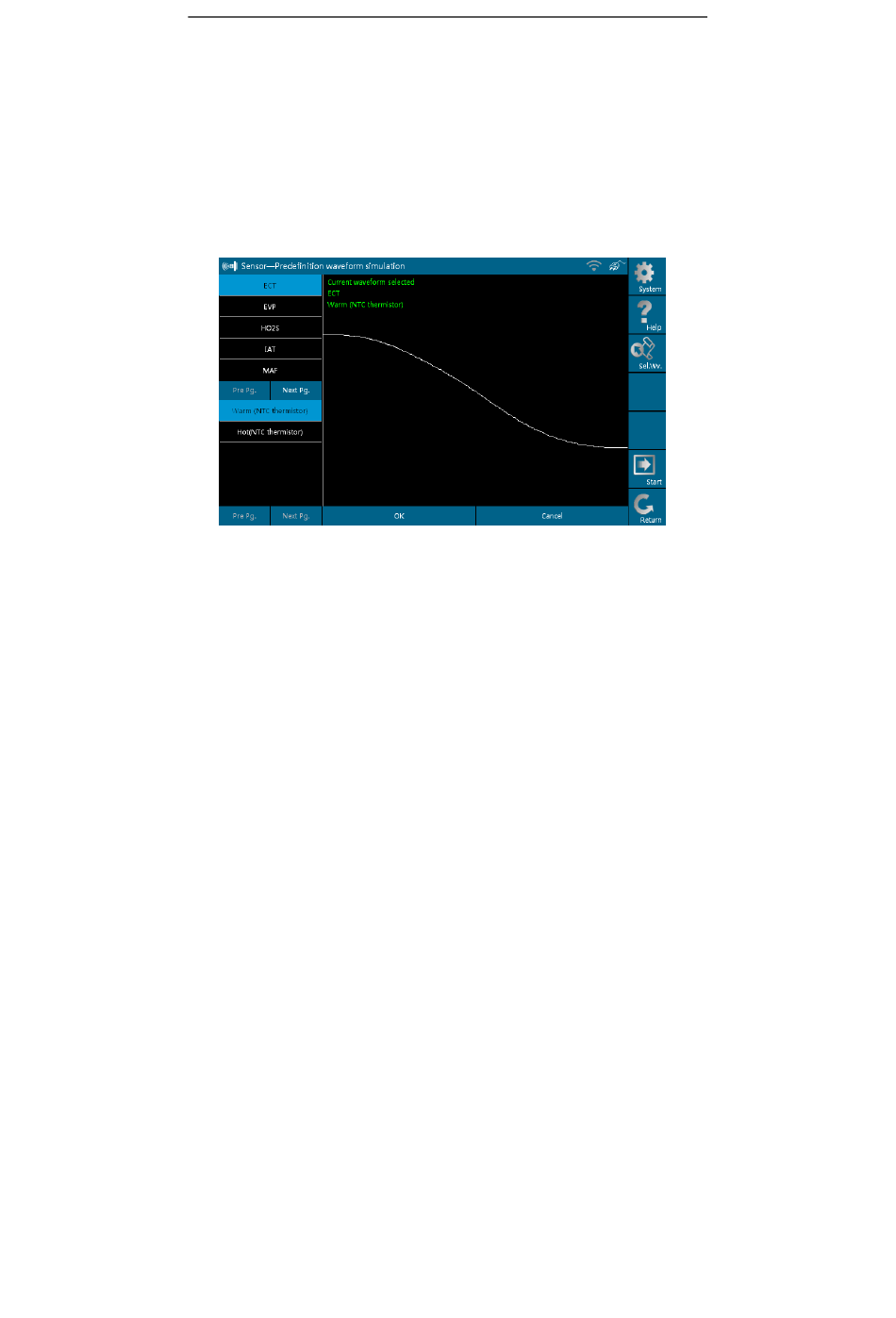

For example, on Figure 3-5, click "ECT" – "Warm up (NTC Thermistor)", the
right screen will display the waveforms for the sensor, as shown below
Figure 3-6:
As on Figure 3-6, click [Enter] button, then the pre-defined waveform has
been finished setting, as Figure 3-7 shown below:
X431 GDS Sensorbox Manual
Fig.3-6
13
