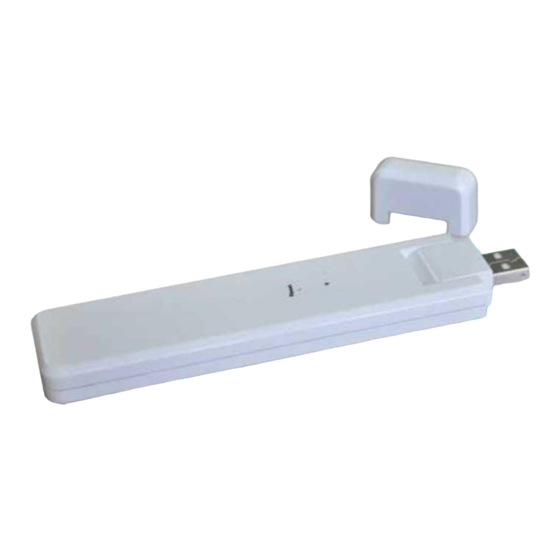

Hoymiles DTU-W100 Quick Installation Manual


DTU Installation
Warning
 Only qualified personnel can install or replace
the DTU.
 Do not attempt to repair the DTU as it contains
the parts that are not serviceable to users. If the
DTU breaks down, please contact your
distributor for maintenance. Opening the DTU
without permission will invalidate the warranty.
Insert the SIM card into the card slot on the side
1)
of DTU.
Connect the DTU to the adapter and plug it into
2)
the wall socket. (Figure 1 & 2).
Figure 1
If using Power Strip, please make sure it is
3)
placed at least 1 meter above the ground and
try to install the DTU 90 degrees vertical to the
ground as much as possible (figure 3).
Note: Please do not install the DTU direct above the
metal or concrete to prevent the signal dilution.

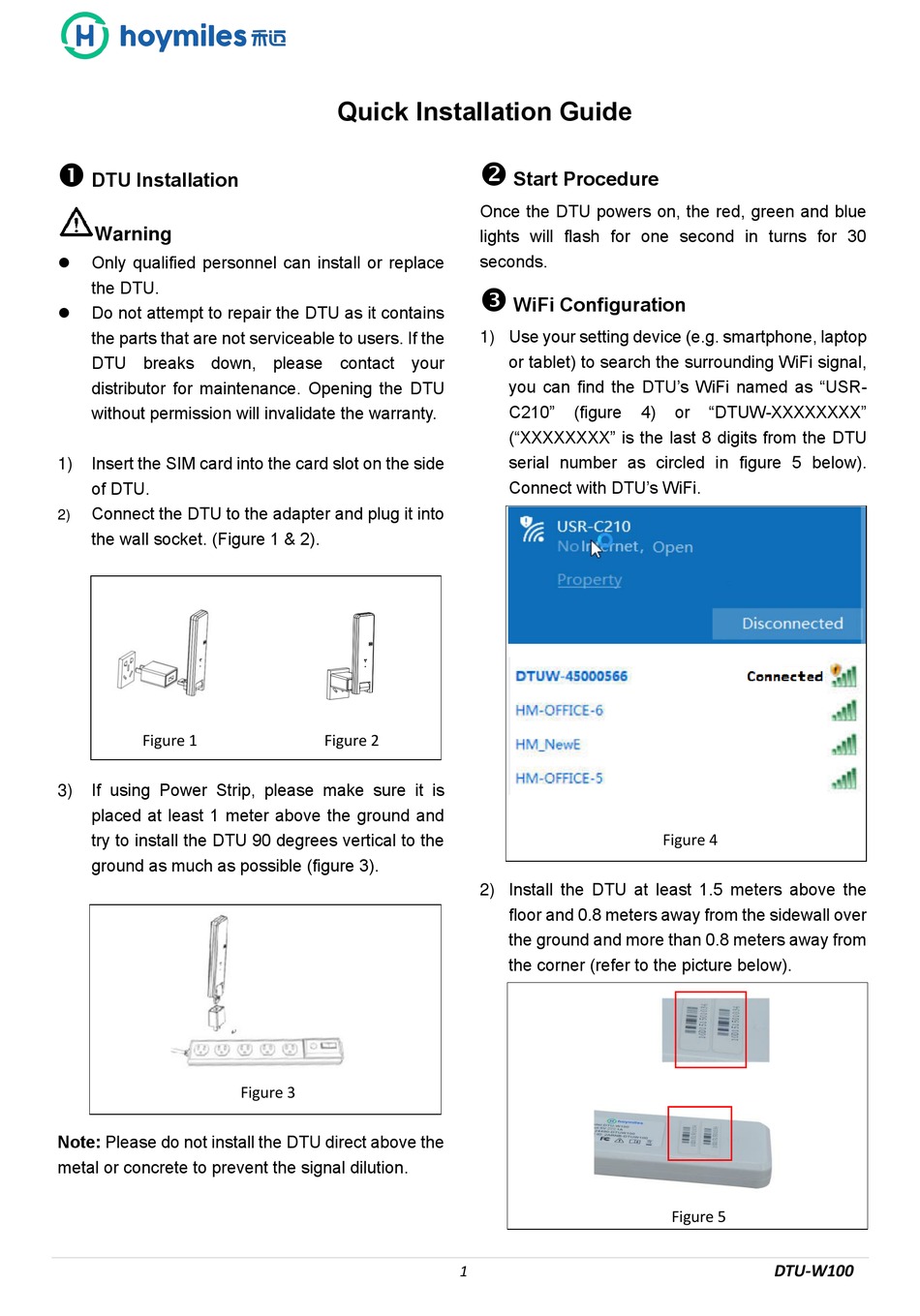

Quick Installation Guide
Figure 2
Figure 3

Start Procedure
Once the DTU powers on, the red, green and blue
lights will flash for one second in turns for 30
seconds.

WiFi Configuration
1) Use your setting device (e.g. smartphone, laptop
or tablet) to search the surrounding WiFi signal,
you can find the DTU's WiFi named as "USR-
C210" (figure
("XXXXXXXX" is the last 8 digits from the DTU
serial number as circled in figure 5 below).
Connect with DTU's WiFi.
2) Install the DTU at least 1.5 meters above the
floor and 0.8 meters away from the sidewall over
the ground and more than 0.8 meters away from
the corner (refer to the picture below).
1
4) or "DTUW-XXXXXXXX"
Figure 4
Figure 5
DTU-W100
