Version 2.0 (April 2020)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTU-W100 3rd Gen and is the answer not in the manual?

Questions and answers

Related Manuals for Hoymiles DTU-W100 3rd Gen

Summary of Contents for Hoymiles DTU-W100 3rd Gen

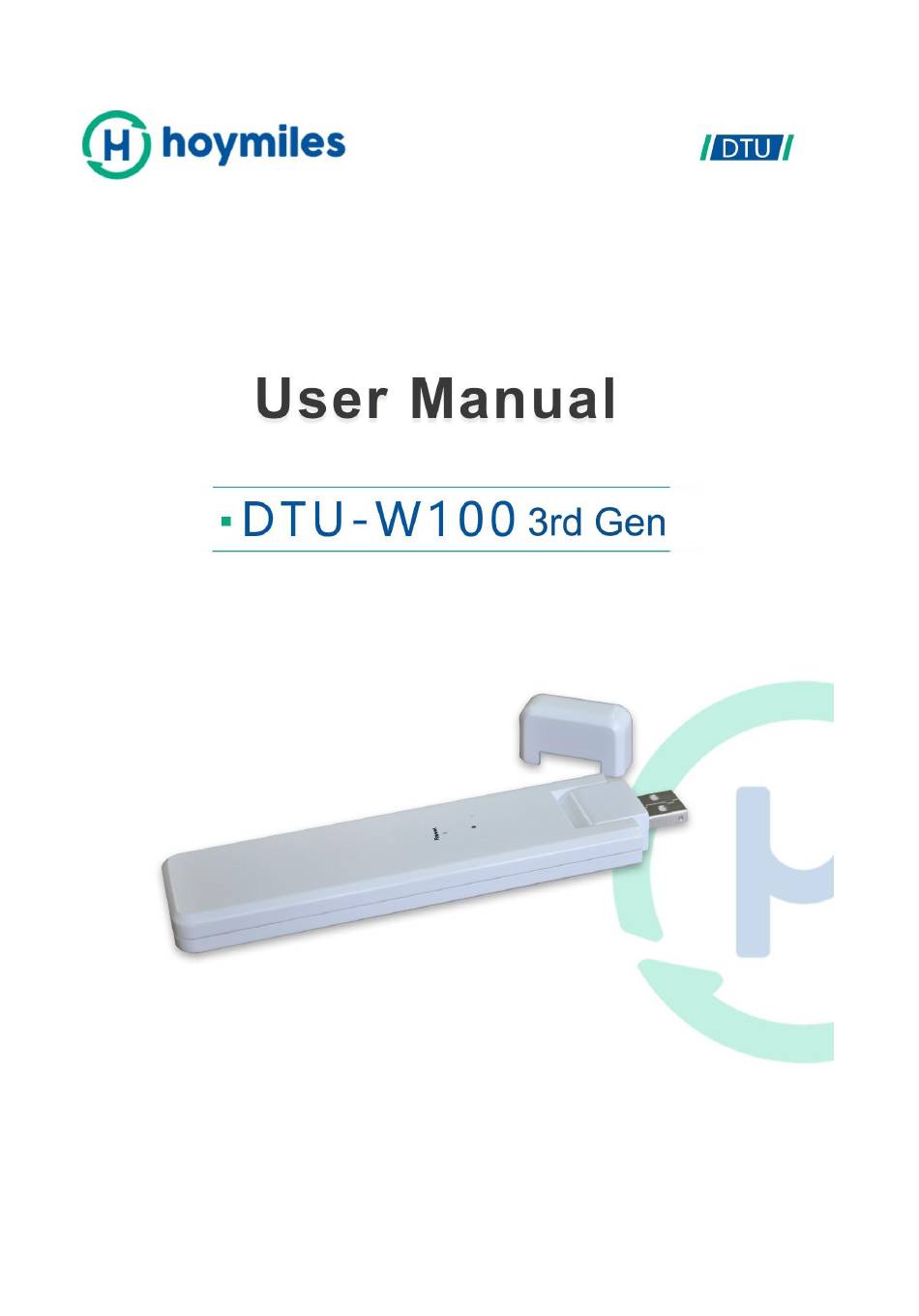

  • Page 1 Version 2.0 (April 2020)

  • Page 2: Table Of Contents

    5. Customer Login................................9 6. Complete Installation Map............................9 7. Browse the Web Station.............................10 8. View Phone APP................................. 10 9. LED indicator working status description........................ 11 10. Troubleshooting.................................11 11. Datasheet................................... 12 © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 3: Important Safety Information

    Note that only professionals can install or replace DTU.  Do not try to repair DTU without Hoymiles’ approval. If DTU is damaged, please send the DTU back  to your installer for repairing/replacing. Disassembling DTU without Hoymiles’ approval will invalidate remaining of the warranty period.

  • Page 4: Other Information

    PV panels and the operation data of the microinverters to the DTU, which is the hardware basis of the panel-level monitoring. With conversion efficiency up to 96.7% and MPPT efficiency up to 99.9%, Hoymiles microinverters rank into the first class of the world’s Microinverter industry.

  • Page 5: Dtu Installation

    The environmental requirements for DTU installation: Away from dust, liquid, acidic, or corrosive gas.  Temperature is between -20ºC and 55ºC  3.3 Dimensions 3.4 Interface Layout Item Description USB Connector Status Indicator Reset Button © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 6: Local Install Assistant

    DTU-W100 3 Gen 3.5 Local Install Assistant Local Install Assistant is a new function integrated with DTU-W100 3rd Gen, please download the Installer App (for installer/distributor use only) first. DTU-W100 has improved from the previous generation of DTU product, and developed with this new function that allows installer: A.

  • Page 7: Dtu Installation Procedure

    Please refer to the Microinverter’s Manual or Quick Installation Guide for the detail installation steps. (2) Locate the DTU The maximum communication distance of Hoymiles DTU is 150m in open space. The walls, roofs, or other obstacles in between will affect the signal and reduce the communication distance in the real installation.

  • Page 8: Site Creation On Hmp

    “Send to DTU” to complete the WiFi configuration. 4. Site creation on HMP A. Install Hoymiles Installer APP by searching “Hoymiles” at the App Store (IOS) or Play Store (Android). B. Open the APP and login in with your installer account name and password. If you are a new...

  • Page 9: Customer Login

    DTU-W100 3 Gen 5. Customer Login A. Please download the End User App. You can search “Hoymiles” at the App Store (IOS) or Play Store (Android). B. Log in with the Password and User name that has been set up by Installer on the previous step (Section 6 step e), and press “Login”.

  • Page 10: Browse The Web Station

    8. View Phone APP Download mobile phone APP by search “Hoymiles” at App Store (IOS) or Play Store (Android), log in with customer/installer account name and password, all installed Microinverters operating details will be able to view from there.

  • Page 11: Led Indicator Working Status Description

    LED lights W100 has  Complete the site creation on APP or Monitoring Blue up in Blue Wi-Fi platform constantly: connection  Complete networking © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 12: Datasheet

    Adapter input voltage/frequency 100 to 240 V AC / 50 or 60Hz Adapter output voltage/current 5V / 2A Power consumption 1.0W (typical), 5W(maximum) Mechanical Data Ambient temperature range (°C) -20°C to 55°C © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.
  • Page 13 DTU-W100 3 Gen Size (W×H×D) 143mm×33mm×12.5mm Weight (KG) A fixed way Direct power supply Indicator light Others EN60950 EN61000-3-2 EN61000-3-3 Standard FCC 15B / 15C © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.
