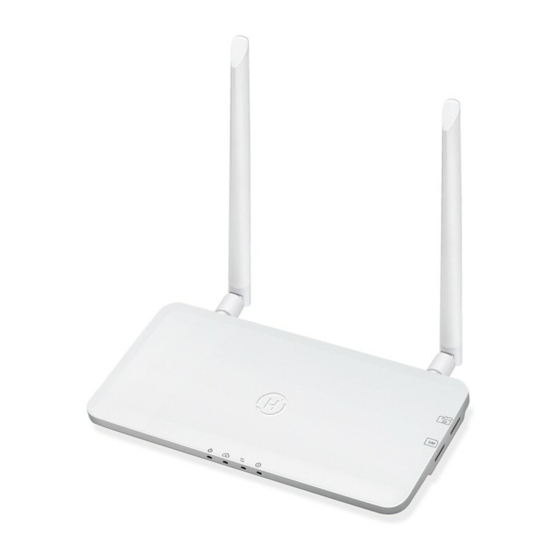

Summary of Contents for Hoymiles DTU-Pro

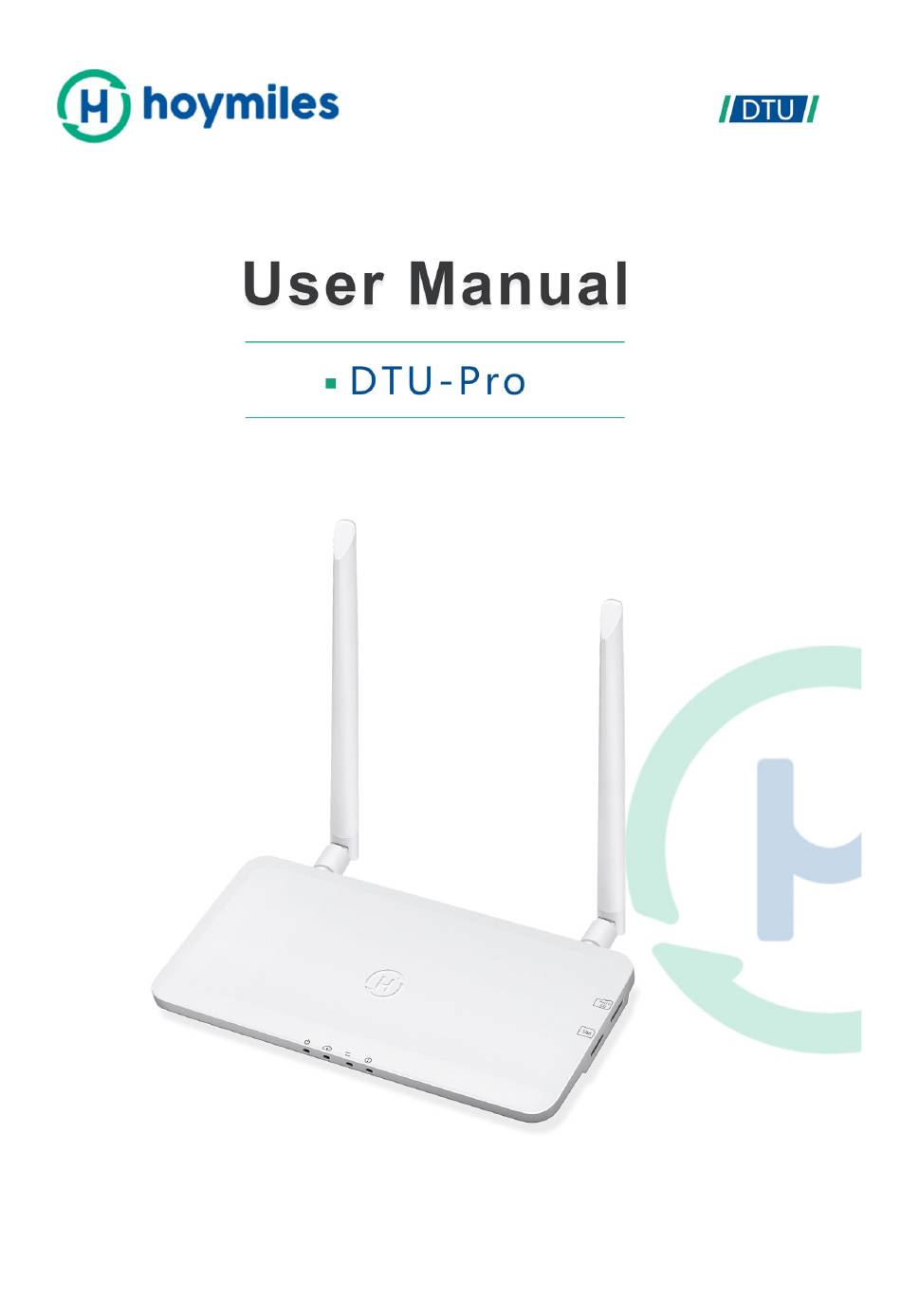

  • Page 1 Version D-3-1.0 @2019...

  • Page 2: Table Of Contents

    Install the DTU ............................8 6. Site Creation on HMP .............................. 11 7. Customer Login ................................ 12 8. Browse the Web Station ............................13 9. View Phone APP ..............................13 10. Datasheet ................................14 © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 3: Important Safety Information

    Please read all instructions and warnings on the technical specifications carefully. l Do not use Hoymiles products in a way that is not suggested by manufacture. If doing so, it may cause death or injury to persons or damage to equipment.

  • Page 4: Other Information

    Microinverter industry. 2.2 DTU The DTU is the key component in Hoymiles microinverter system. It works as the communication gateway, which operates between the Hoymiles microinverters and the Hoymiles Monitoring Server. The DTU communicates with the microinverter wirelessly via 2.4G RF, collecting the operation data of the system.

  • Page 5: For Dtu-Pro (Wifi Version)

    DTU Communication Indicator (With Server) DTU Communication Indicator (With MI) DTU Alarm Indicator GPRS Antenna (GSM) RS485 DRM Port (For Australia only) Ethernet Port USB Port Reset Bottom Power Port 2.4G Antenna © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 6: Dtu Installation

    4. DTU Installation 4.1 System Capacity The DTU-Pro is capable of monitoring up to 99 panels. Note: Max. monitoring quantity is for open space, installation condition meets the requirement from both DTU and Microinverter manual, and the distance between Microinverter and DTU needs to be within the required range.

  • Page 7: System Installation Sequence

    Use WiFi or Ethernet. Please prepare for the following items, if needed: Ethernet Cable (if choose Ethernet option). Smart Phone/Tablet with Hoymiles Installer App installed (if choose WiFi option). For DTU-Pro (GPRS Version): Use GPRS or Ethernet. Please prepare for the following items, if needed:...

  • Page 8: Install The Dtu

    For DTU-Pro (GPRS Version): Take 2.4G antenna and GSM antenna out from the box, and screw the antenna into the GPRS port and 2.4G port. Step 2: Insert the SIM Card into the SIM Card slot on the side of DTU (For DTU-Pro GPRS only). Step 3: Choose an Installation Location Installed on the top floor to increase the signal strength.
  • Page 9 DTU-PRO Match the bracket’s upper buckle with DTU-Pro; - Match the bracket’s lower buckle by gently press the lower side of the DTU-Pro until hear the Click. Please make sure the antennas are vertical to the wall. © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.
  • Page 10 Use the Lan Cable, one side connect with house router, another side with DTU Ethernet port. Use the smart phone/tablet open the Installer App and login. Approach to “Me” on the bottom of the page and then “Network Configuration”, and select “Ethernet” (If choose Ethernet). © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 11: Site Creation On Hmp

    6. Site Creation on HMP a. Install Hoymiles Installer APP by searching “Hoymiles” at the App Store (IOS) or Play Store (Android). b. Open the APP and login in with your installer account name and password. If you are a new...

  • Page 12: Customer Login

    Guide from our Tech. Support Team at service@hoymiles.com. 7. Customer Login a. Please download the End User App. You can search “Hoymiles” at the App Store (IOS) or Play Store (Android). b. Log in with the Password and User name that has been set up by Installer on the previous step (Section 6 step e), and press “Login”.

  • Page 13: Browse The Web Station

    DTU-PRO 8. Browse the Web Station Log in your account and browse the web station. 9. View Phone APP Download mobile phone APP and view station information. © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.

  • Page 14: Datasheet

    Dimensions(W×H×D) 200mm×101mm×29mm Weight 0.20 kg Mounting system Wall mounting / Table Features RCM, FCC 15B, FCC 15C, EN60950-1, EN61000-3-2, Compliance EN61000-3-3, EN301489, EN300328, EN300440 [1] Depending on the installation environment. © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.
