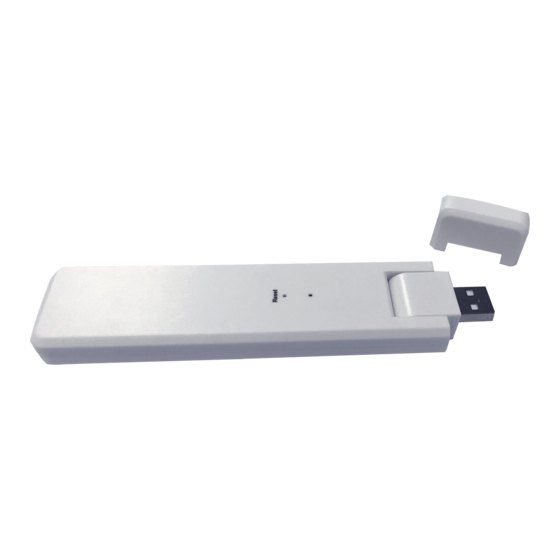

Summary of Contents for Hoymiles DTU-W100

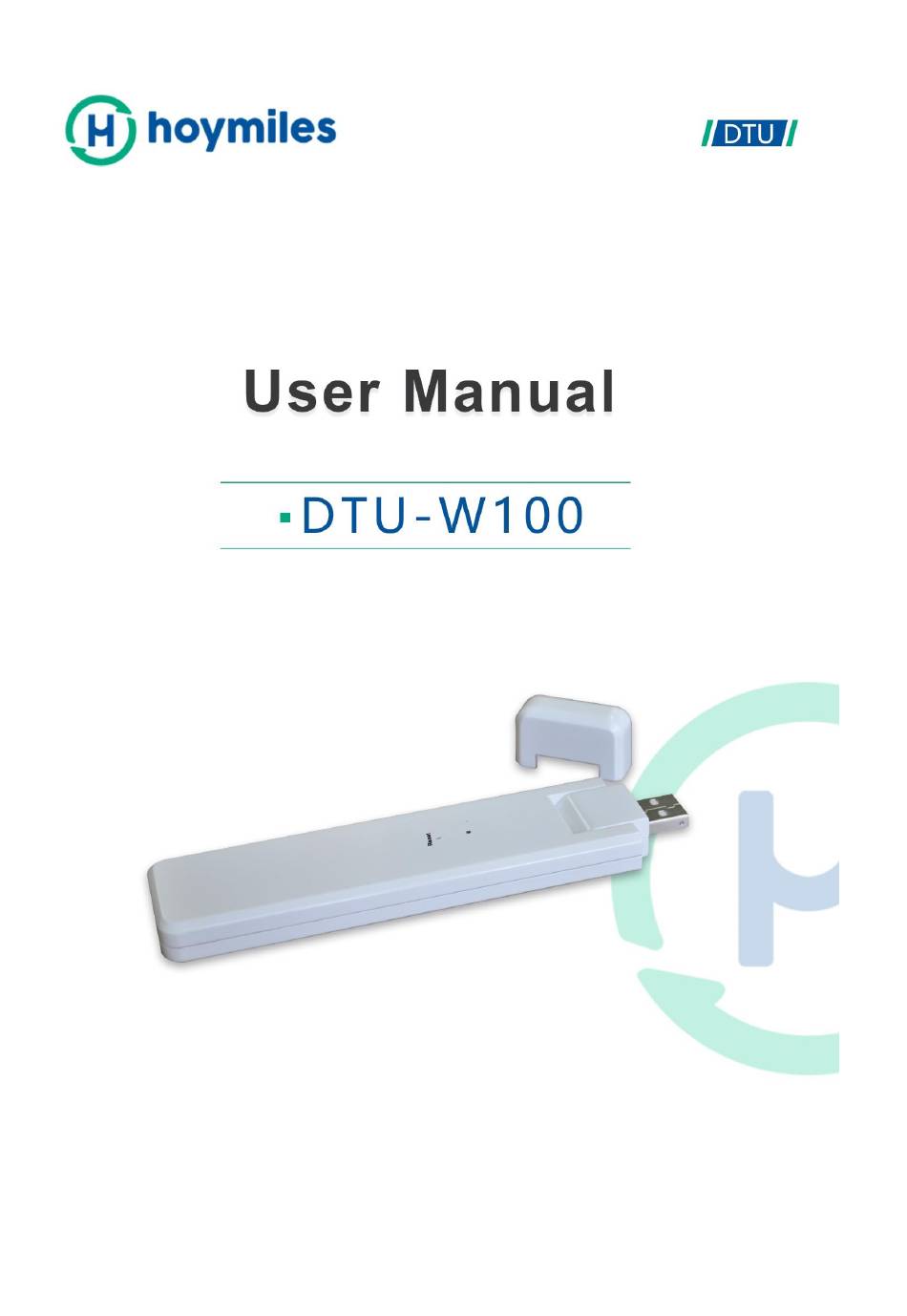

  • Page 1 Version D-5-1.0 @2019...
  • Page 2: Table Of Contents

    6. Complete Installation Map ........................... 9 7. Browse the Web Station ............................ 10 8. View Phone APP ..............................11 9. LED indicator working status description ......................11 10. Troubleshooting ..............................12 11. Datasheet ................................13 © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.
  • Page 3: Important Safety Information

     Note that only professionals can install or replace DTU.  Do not try to repair DTU without Hoymiles’ approval. If DTU is damaged, please send the DTU back to your installer for repairing/replacing. Disassembling DTU without Hoymiles’ approval will invalidate remaining of the warranty period.
  • Page 4: Other Information

    Microinverter industry. 2.2 The DTU The DTU is the key component in Hoymiles microinverter system. It works as the communication gateway, which operates between the Hoymiles microinverters and the Hoymiles Monitoring Server. The DTU communicates with the microinverter wirelessly via 2.4 G RF, collecting the operation data of the system.
  • Page 5: Dtu Installation

    The location should be one meter above the ground, 0.8 meters away from the corner. The environmental requirements for DTU installation:  Away from dust, liquid, acidic, or corrosive gas.  Temperature is between -20º C and 55º C. 3.3 Dimensions © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.
  • Page 6: Installation Sequence

    Please refer to the Microinverter’s Manual or Quick Installation Guide for the detail installation steps. (2) Locate the DTU The maximum communication distance of Hoymiles DTU is 100m in open space. The walls, roofs, or other obstacles in between will affect the signal and reduce the communication distance in the real installation.
  • Page 7 DTU 90 degrees vertical to the ground as much as possible (figure 2). Figure 2 Note:Please do not install the DTU direct above the metal or concrete to prevent the signal dilution. © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.
  • Page 8: Site Creation On Hmp

    (2) The “Reset” button on the DTU shell is only for customers who use the enterprise WiFi. 4. Site creation on HMP a. Install Hoymiles Installer APP by searching “Hoymiles” at the App Store (IOS) or Play Store (Android). b. Open the APP and login in with your installer account name and password. If you are a new...
  • Page 9: Customer Login

    Please wait about 30 minutes, the station will show online, and all the MI-IDs are found. 5. Customer Login a. Please download the End User App. You can search “Hoymiles” at the App Store (IOS) or Play Store (Android).
  • Page 10: Browse The Web Station

    DTU-W100 7. Browse the Web Station You can view the inverter real-time operating details on the computer web page by accessing Hoymiles online monitoring platform at https://world.hoymiles.com. © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.
  • Page 11: View Phone App

    DTU-W100 8. View Phone APP Download mobile phone APP by search “Hoymiles” at App Store (IOS) or Play Store (Android), log in with customer/installer account name and password, all installed Microinverters operating details will be able to view from there.
  • Page 12: Troubleshooting

    1. Connected to Wi-Fi, the blue indicator lights up, and then you can build the power station; 2. Can't connect to Wi-Fi, the indicator lights up as red + blue alternately flashing, and then you need to connect to Wi-Fi again. © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.
  • Page 13: Datasheet

    -20° C to 55° C Size (W×H×D mm) 143mm×33mm×12.5mm Weight (kG) A fixed way Direct power supply Indicator light Others EN60950 EN61000-3-2 EN61000-3-3 Standard FCC Part15 Class B / Class C © 2019 Hoymiles Converter Technology Co., Ltd. All rights reserved.
