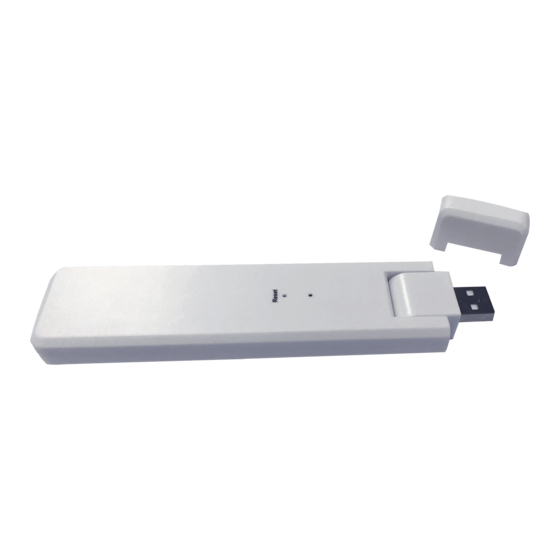

Hoymiles DTU-W100 User Manual

Data transfer unit
Hide thumbs Also See for DTU-W100:
Table of Contents

Advertisement

Quick Links

Data Transfer Unit
DTU-W100
User Manual
REV1.0 All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTU-W100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hoymiles DTU-W100

Summary of Contents for Hoymiles DTU-W100

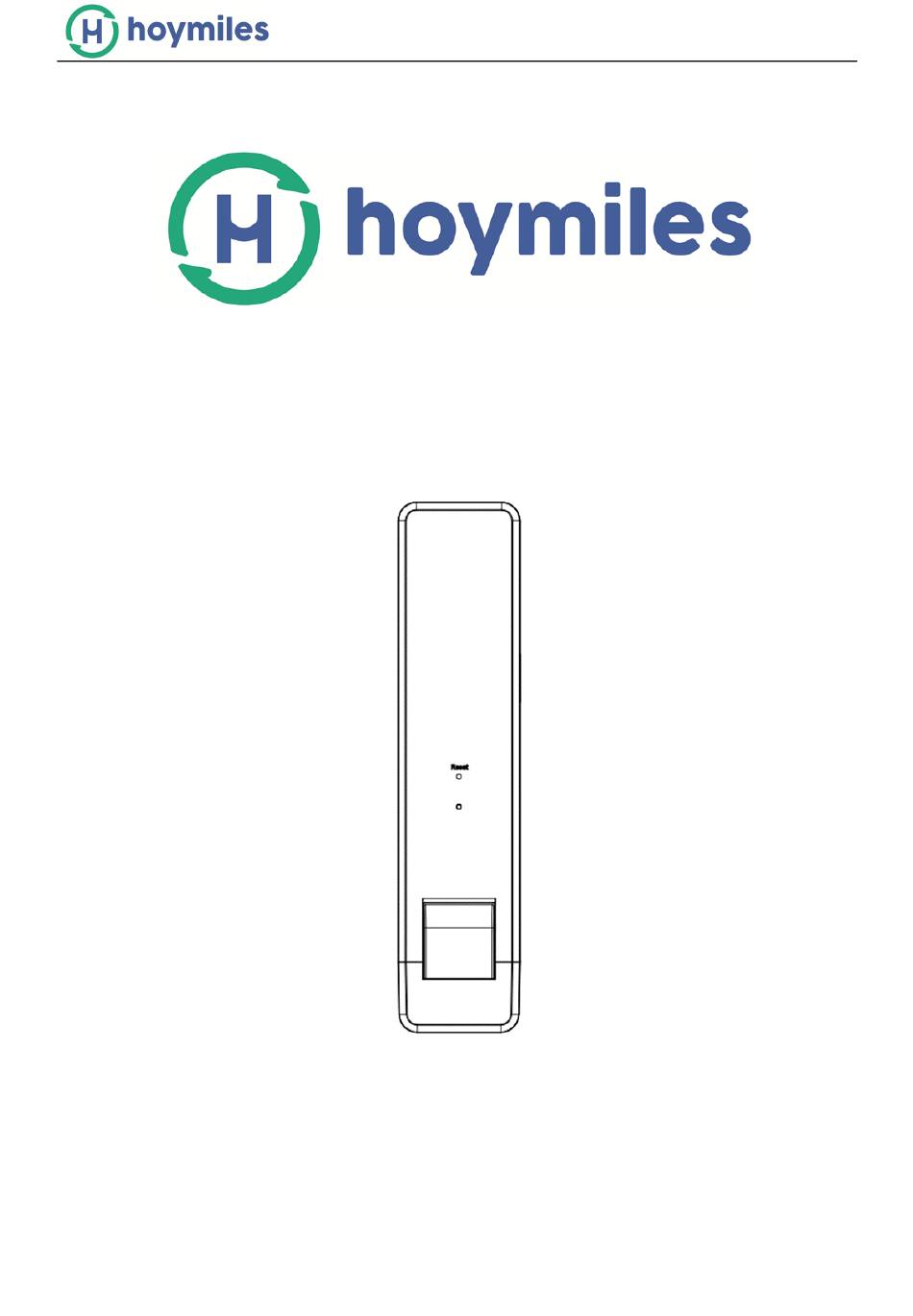

  • Page 1 Data Transfer Unit DTU-W100 User Manual REV1.0 All rights reserved...
  • Page 2 Corporate Headquarters Contact Information Hoymiles Converter Technology Co.,Ltd. No.18 Kangjing Road, Hangzhou 310015, China www.hoymiles.com info@hzconverter.com Copyright Hoymiles Converter Technology Co., Ltd. All rights reserved...

  • Page 3: Table Of Contents

    Table of Contents: 1.Important Safety Information ......................4 Foreword ............................4 Safety Instructions ........................4 2.The monitoring system of Hoymiles....................5 3. DTU Installation Operation ......................6 3.1 Install The DTU ........................6 3.2 WIFI Configuration Process ....................7 3.3 Boot Process .......................... 9 3.4 Indicator Light Status Description ..................

  • Page 4: Important Safety Information

    1.Important Safety Information Foreword This manual contains important instructions to follow during installation and maintenance of the Hoymiles Data Transfer Unit(DTU) Safety Instructions ·Only qualified personnel can install or replace the DTU. · Do not attempt to repair the DTU as it contains the parts that are not serviceable to users. If the DTU breaks down, please contact your distributor for maintenance.

  • Page 5: The Monitoring System Of Hoymiles

    2.The monitoring system of Hoymiles The DTU is the key component in Hoymiles monitoring system. It is the relay station of the monitoring system, which operates between the Hoymiles microinverters and Hoymiles Monitoring Server. The DTU communicates with the microinverters in the system via 2.4G RF wireless to collect the data and status of the microinverters in the system.

  • Page 6: Dtu Installation Operation

    It sends the output electrical information of PV panels and the operation data of the microinverters to the DTU, which is the hardware basis of the panel-level monitoring. With efficiency up to 96.7% and MPPT efficiency up to 99.9%, Hoymiles microinverters rank in the first level around the world in 2015.

  • Page 7: Wifi Configuration Process

    2.Or plug the DTU into the power adapter and plug it into the cable outlet. Place the socket on the table (when the table is placed, the table surface should be more than 1 meter above the ground). Note: The table should not be metal or concrete structure (to prevent the effects on 2.4G RF signal).

  • Page 9: Boot Process

    3.3 Boot Process When the DTU starts to work, the red, green and blue lights are on for one second, then the red light is on. The green light flashes to indicate that the search is slightly reversed and connected to WIFI. The red and green lights flash alternately to indicate that the server is connected and the WIFI is searched.

  • Page 10: Improve Installation Maps And Record Archives

    4.Improve Installation Maps Record Archives 1.Check if the indicator light is normal. 2.Confirm whether the connection is successful. 3. Please improve the installation map. 4.Remove the DTU serial number and attach it to the blank field of the DTU serial number on the installation map.

  • Page 11: Server Side Browsing

    5.Server side browsing...

  • Page 12: Mobile App View Power Station Information

    6.Mobile APP view power station information...

  • Page 14: Specifications

    7.Specifications Model DTU-W100 RF communication Communication method 2.4G RF Communication frequency 2400MHz to 2483.5MHz Number of channels Communication distance (empty environment) 200Meter Maximum number of components that can be connected 99 MI-250 ,49 MI-500, or 24 MI-1000 Telecommunication WIFI communication standard 802.11b/g/n...
  • Page 15 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 IC Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
