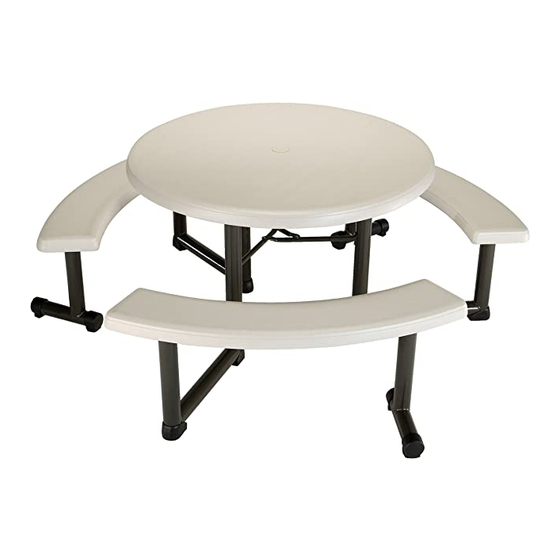

MODEL N° 2127
OWNER'S MANUAL
Keep this Identification Number in case you must contact our Customer Service Department.

Advertisement

Table of Contents
loading

Related Manuals for Lifetime 2127

Summary of Contents for Lifetime 2127

  • Page 1 MODEL N° 2127 OWNER’S MANUAL Keep this Identification Number in case you must contact our Customer Service Department.

  • Page 2: Safety Instructions

    REGISTER YOUR LIFETIME PRODUCT TODAY! There are benefi ts to registering your Lifetime product. With our new online product registration form, it’s fast and easy! Register with us at www.lifetime.com and enjoy these great benefi ts: LIFETIME’S PROMISE TO YOU: Maintaining your privacy is our long-standing policy at Lifetime.

  • Page 3: Before Beginning Assembly

    BEFORE BEGINNING ASSEMBLY Keep the hardware bags and their contents separate. If any parts are missing, call our Customer Service Department. *TWO ADULTS REQUIRED TO COMPLETE ASSEMBLY* TOOLS REQUIRED FOR ASSEMBLY Screwdriver 5/16” Wrench Safety Glasses...
  • Page 4 ASSEMBLY GUIDES Refer to the following areas throughout the instructions to assist in the assembly process: TOOLS AND HARDWARE REQUIRED FOR THIS PAGE This area is located at the top, left-hand corner of the page and indicates which tools and hardware are needed to complete the assembly steps on a page.

  • Page 5: Parts List

    PARTS LIST Description Description BCD Table Leg Assembly Hardware BCC Table Top Support Brace Assembly Hardware BCB Bench Assembly Hardware HARDWARE IDENTIFIER TABLE LEG ASSEMBLY HARDWARE [BCD] TABLE TOP SUPPORT BRACE ASSEMBLY HARDWARE [BCC] BENCH ASSEMBLY HARDWARE [BCB]...

  • Page 6: Parts Identifier

    PARTS IDENTIFIER MISCELLANEOUS PARTS Parts shown at 5% of Actual Size 23.55” 23.55”...

  • Page 7: Hardware Required

    TABLE LEG ASSEMBLY HARDWARE REQUIRED METAL PARTS REQUIRED PLASTIC PARTS REQUIRED TOOLS REQUIRED...
  • Page 8 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE FOOT CAPS TO TABLE LEGS ASSEMBLY Table Leg (BAE) Table Leg Foot Cap (BBX) #8 x 1/2” Phillips Pan-Head Screws (BBO). CENTER TABLE LEG BRACE ASSEMBLY Center Table Leg Brace (BDE) #8 x 1/2” Phillips Pan-Head Screws (BBO). Repeat steps 1.1-1.2 for all Table Legs.
  • Page 9 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE Note: The Center Leg Braces are joined together always in a right over left format. #8 x 1/2” Phillips Pan Head Screw (BBO). Note: Do not completely tighten Screws (BBO) yet.
  • Page 10 TABLE TOP SUPPORT BRACE ASSEMBLY HARDWARE REQUIRED METAL PARTS REQUIRED 23.55” 23.55” PLASTIC PARTS REQUIRED TOOLS REQUIRED...
  • Page 11 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE NO HARDWARE REQUIRED FOR THIS PAGE TABLE SUPPORT BRACE INFORMATION Support Braces (BBU & BBV) Support Brace 1 (BBU) Support Brace 2 (BBV) Gold Colored Bolt 15”...
  • Page 12 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 5/16” TABLE TOP SUPPORT BRACE ASSEMBLY Support Brace 2 (BBV) 5mm Cap Nut (BBP). Note: Do not completely tighten the Nut (BBP) yet.
  • Page 13 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 5/16” Place a Support Brace 1 (BBU) 5mm Cap Nuts (BBP). Note: Do not completely tighten the Nuts (BBP) yet.
  • Page 14 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 5/16” Place a Support Brace 2 (BBV) 5mm Flat Washer (BBQ) 5mm Cap Nuts (BBP). Note: Do not completely tighten the Nuts (BBP) yet.
  • Page 15 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 5/16” Place a Support Brace 1 (BBU) 5mm Cap Nuts (BBP). Note: Do not completely tighten the Nuts (BBP) yet.
  • Page 16 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 5/16” Place a Support Brace 2 (BBV) 5mm Flat Washer (BBQ) 5mm Cap Nuts (BBP). Note: Do not completely tighten the Nuts (BBP) yet.
  • Page 17 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 5/16” Support Brace 1 (BBU) 5mm Flat Washer (BBQ) 5mm Cap Nuts (BBP). WARNING Note: Securely tighten all Nuts (BBP) now.
  • Page 18 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 1/4” x 1/2” Pan-Head Screws (BBT). Do not overtighten Screws. Pilot Holes...
  • Page 19 BENCH ASSEMBLY HARDWARE REQUIRED METAL PARTS REQUIRED PLASTIC PARTS REQUIRED TOOLS REQUIRED...
  • Page 20 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE BENCH ASSEMBLY Bench Leg (BDG) Bench Leg Foot Cap (BBW) #8 x 1/2” Phillips Pan-Head Screws (BBO). Repeat steps 3.1 for all 3 Bench Legs. Bench Support Frame (BDF)
  • Page 21 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 5/16” Bench Leg (BDG) 5mm x 12.5mm Carriage Bolts (BBR) M5 Centerlock Nuts (BBS) Bench Leg Pivot (BBY) 5mm x 12.5mm Carriage Bolts (BBR) Centerlock Nuts (BBS). Repeat steps 3.2-3.3 for all 3 Benches. Pivot Plates Tabs Note: The tab on the Bench Frame must align with the hole...
  • Page 22 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE Bench (BAD) 1/4” x 1/2” Phillips Pan-Head Screws (BBT). Repeat steps for all Benches. Note: Only use a hand screwdriver on this step.
  • Page 23 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE Cotter Key (ARH) Repeat steps 3.5-3.6 for all Benches.
  • Page 24 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE NO HARDWARE REQUIRED FOR THIS PAGE INSERT UMBRELLA HOLE PLUG ® Umbrella Hole Plug (BBZ)

  • Page 25: Cleaning And Care

    CLEANING AND CARE CLEANING AND CARE WARNING ADVERTENCIA AVERTISSEMENT 1008736...
  • Page 26 LIFETIME 2-YEAR LIMITED FACTORY WARRANTY THE MANUFACTURER RESERVES THE RIGHT TO MAKE SUBSTITUTIONS TO WARRANTY CLAIMS IF PARTS ARE UNAVAILABLE OR OBSOLETE. ALL WARRANTY CLAIMS MUST BE ACCOMPANIED BY A SALES RECEIPT. REGISTER YOUR PRODUCT FOR QUICKER CUSTOMER SERVICE. ©Lifetime Products, Inc.
