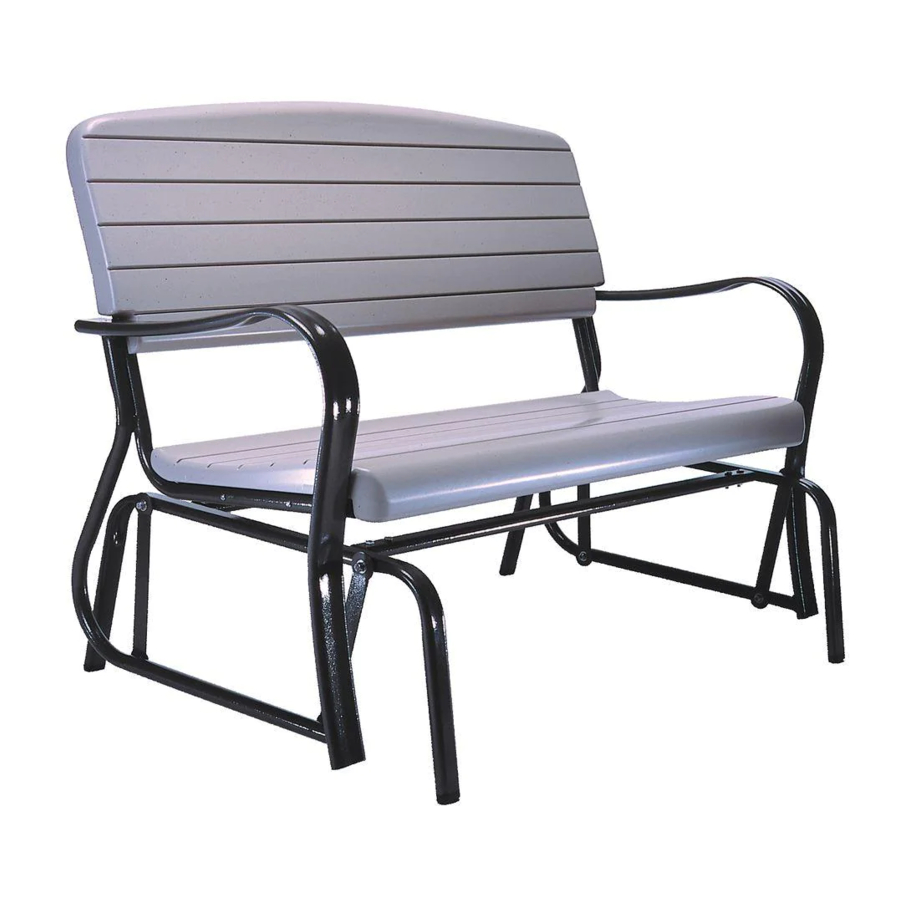

MODEL N° 2871
OWNER'S MANUAL
Keep this Identification Number in case you must contact our Customer Service Department.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2871 and is the answer not in the manual?

Questions and answers

Related Manuals for Lifetime 2871

Summary of Contents for Lifetime 2871

  • Page 1 MODEL N° 2871 OWNER’S MANUAL Keep this Identification Number in case you must contact our Customer Service Department.

  • Page 2: Safety Instructions

    REGISTER YOUR LIFETIME PRODUCT TODAY! There are benefi ts to registering your Lifetime product. With our new online product registration form, it’s fast and easy! Register with us at www.lifetime.com and enjoy these great benefi ts: • Receive exclusive money-saving offers from BuyLifetime.com, our online store, as well as NEW product notifications and special closeout promotions! •...

  • Page 3: Before Beginning Assembly

    BEFORE BEGINNING ASSEMBLY Keep the hardware bags and their contents separate. If any parts are missing, call our Customer Service Department. *TWO ADULTS REQUIRED TO COMPLETE ASSEMBLY* TOOLS REQUIRED FOR ASSEMBLY (NOT INCLUDED) Phillips Screwdriver Safety Glasses 5/16” Wrench 7/16” Wrench (1 pair for each person)
  • Page 4 ASSEMBLY GUIDES Refer to the following areas throughout the instructions to assist in the assembly process: TOOLS AND HARDWARE REQUIRED FOR THIS PAGE This area is located at the top, left-hand corner of the page and indicates which tools and hardware are needed to complete the assembly steps on a page.

  • Page 5: Parts & Hardware List

    PARTS & HARDWARE LIST DESCRIPTION DESCRIPTION Right Leg BCI FRAME ASSEMBLY HARDWARE BAG Left Leg M5 x .8 mm x 25 mm Pan-Head Screw 8 Leg Cross Support M5 x .8 mm x 33 mm Pan-Head Screw 2 Bearing Arm M5 x .8 mm x 57 mm Pan-Head Screw 4 Right Arm M5 x .8 mm Nylock Nut...

  • Page 6: Parts Identifier

    PARTS IDENTIFIER GLIDER BENCH PARTS Parts shown at same scale (unless otherwise noted) BAS (x1) BAT (x1) BAX (x1) BAW (x1) Right Leg Left Leg Left Arm Right Arm BAV (x4) Bearing Arm BAY (x1) Back Cross Support BAZ (x1) Seat Cross Support BAU (x2) Leg Cross Support...
  • Page 7 BENCH FRAME ASSEMBLY HARDWARE USED BCE (x8) BCF (x2) BAN (x14) M5 x .8 mm x 25 mm Pan-Head Screw M5 x .8 mm x 33 mm Pan-Head Screw M5 x .8 mm Nylock Nut BCG (x4) BAM (x4) M5 x .8 x 57 mm Pan-Head Screw 1/4”Nylock Cap Nut METAL PARTS USED Parts Shown at Same Scale...
  • Page 8 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE BCE (x8) 5/16” BAN (x10) 7/16” BCF (x2) BAM (x4) FRAME ASSEMBLY: Attach the Leg Cross Supports (BAU) to the Right and Orient the Bearing Arms (BAV) so they angle away Left Legs (BAS and BAT) using the hardware shown. from the Legs when attached.
  • Page 9 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 5/16” BCG (x4) BAN (x4) Connect the Seat Cross Support (BAZ) to the Right and Left Arms (BAW and BAX) using the hardware shown. BAN BAN...
  • Page 10 BENCH BACK AND SEAT ASSEMBLY HARDWARE USED BAM (x4) BAL (x9) 1/4” Nylock Cap Nut Plastic Screw METAL PARTS USED NO METAL PARTS REQUIRED FOR THIS SECTION PLASTIC PARTS USED BBB (x1) Bench Seat BBA (x1) Bench Back TOOLS USED Safety Glasses 7/16”...
  • Page 11 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 5 mm Allen Wrench (Included) BAL (x9) BACK AND SEAT ASSEMBLY: Connect the Bench Back (BBA) to the Frame Assembly using the hardware shown. Connect the Bench Seat (BBB) to the Frame Assembly using the hardware shown.
  • Page 12 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 7/16” BAM (x4) Using at least two adults, carefully lift the Upper Bench Assembly and set it on the Leg Assembly. Connect Bearing Arms to the Left and Right Leg Assemblies using the hardware shown. WARNING Note: The bearings are lubricated for life and require no further lubrication.

  • Page 13: Cleaning And Care

    CLEANING AND CARE Congratulations on your Lifetime purchase. By following the instructions below, your new Lifetime table should provide you with years of service and enjoyment. CLEANING AND CARE The polyethylene tabletop and benches are stain- and solvent-resistant. To clean, use a mild soap and a soft-bristled brush.
  • Page 14 NOTES...
  • Page 15 NOTES...
  • Page 16 IF PARTS ARE UNAVAILABLE OR OBSOLETE. 1. Lifetime Glider Benches are warranted to the original purchaser to be free from defects in material or workmanship for a period of two years from the date of original retail purchase. The word “defects” is defined as imperfections that impair the use of the product.
