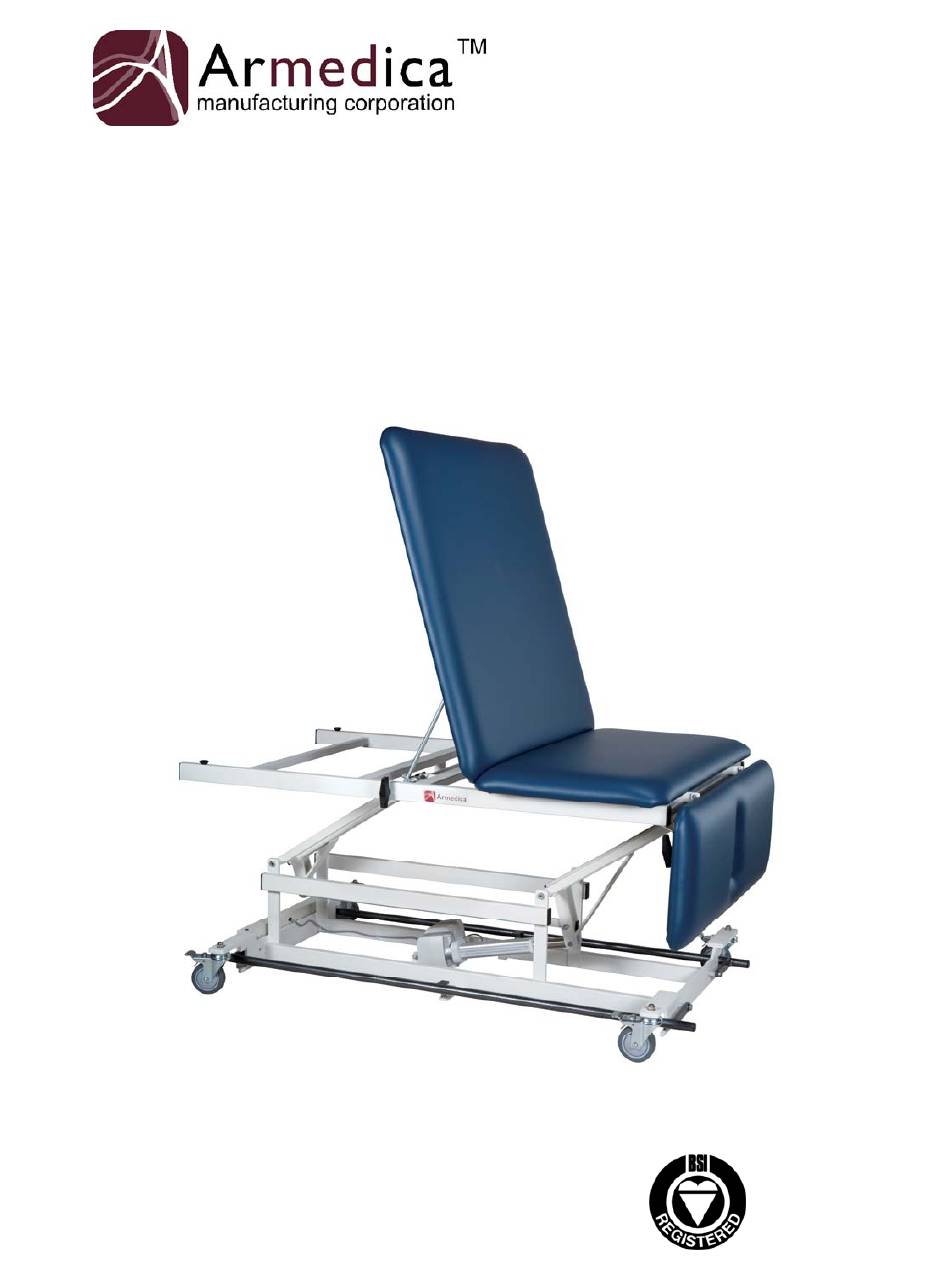

This manual has been prepared for the owners and operators
of the ARMEDICA™ AM-BA Series Hi-Lo Treatment Tables.
It contains installation instructions, precautionary instructions
and maintenance procedures for the following model numbers:
AM-BA134, AM-BA140, AM-BA234,
AM-BA240, AM-BA334, AM-BA340
ISO 13485
FM 50089
.
Made in the U.S.A
Advertisement
Related Manuals for Armedica AM-BA Series
Summary of Contents for Armedica AM-BA Series
- Page 1 This manual has been prepared for the owners and operators of the ARMEDICA™ AM-BA Series Hi-Lo Treatment Tables. It contains installation instructions, precautionary instructions and maintenance procedures for the following model numbers: AM-BA134, AM-BA140, AM-BA234, AM-BA240, AM-BA334, AM-BA340 ISO 13485 FM 50089 Made in the U.S.A...
- Page 2 7. Never leave patient unattended. OPERATING INSTRUCTIONS To adjust the height of ARMEDICA™ Treatment Tables, a foot bar extending the length of the table is used to activate the electric motor assembly. Pressing down on the bar will raise the table. Lifting up on the bar will lower the table.
- Page 3 C. Check switch cable running from switch box and make sure it is plugged in properly. D. Thermal cutout may have activated. Allow the motor to cool. E. In the event there is a failure of the motor, the motor must be returned to Armedica Mfg. Corp. The motor must be serviced by the manufacturer.
- Page 4 PARTS LIST QUANITY/MODEL NO. PART NO. ITEM NO. DESCRIPTION 02005 BOLT SHLDR 5/16x3/4 02015 BOLT SHLDR 1/2x1/2 02020 BOLT SHLDR 1/2x2 02026 BOLT SHLDR M10X50 02035 SCREW BTN HD SOC 5/16-18x1-1/2 02045 SCREW HX HD CAP 1/4-20x1 02065 SCREW HX WASHER HD #14x1 02092 NUT NYLOCK M8-1.25 HEAVY 02100...
- Page 5 PARTS LIST QUANITY/MODEL NO. ITEM NO. PART NO. DESCRIPTION 13043 ROD 1/2x35 THD'D 34W HD LOC PLTD 13095 SPACER .913ODx.635 IDx.641 WHT PLAS 14072 BD UPH BOBATH HEAD SECTION AM-240 14073 BD UPH BOBATH BODY SECTION AM-240 14078 BD UPH BARIATRIC BACK 14080 BD UPH BARIATRIC BODY 14331...
- Page 6 TABLE BASE AM-BA 134, 140, 234, 240, 334, 340...
- Page 7 TOP FRAME AM 134, 140 REFER TO MODEL NUMBER COLUMN ON PARTS LIST FOR ITEMS WITH TWO REFERENCE NUMBERS. EXAMPLE: ITEM NUMBER 92 IS USED ON AM-134. ITEM NUMBER 93 IS USED ON AM-140...
- Page 8 TOP FRAME AM-BA 334, 340 REFER TO MODEL NUMBER COLUMN ON PARTS LIST FOR ITEMS WITH TWO REFERENCE NUMBERS. EXAMPLE: ITEM NUMBER 55 IS USED ON AM-BA334. ITEM NUMBER 58 IS USED ON AM-BA340.
- Page 9 TOP FRAME AM-BA 234, 240 REFER TO MODEL NUMBER COLUMN ON PARTS LIST FOR ITEMS WITH TWO REFERENCE NUMBERS. EXAMPLE: ITEM NUMBER 54 IS USED ON AM-BA234. ITEM NUMBER 52 IS USED ON AM-BA240...
-
Page 10: Micro Switches
MICRO SWITCHES The bar activated treatment table is equipped with 4 micro switches located in the box mounted on the foot end of the base. The switches are designed to provide years of reliable service. In the rare case that a switch does become inoperative, the box at the rear of the table must be accessed. -
Page 11: Wire Diagram
SWITCH BOX AM-BA SERIES OPEN CLOSED WIRE DIAGRAM CORD TO MOTOR GRAY GRAY PURPLE PURPLE DOWN BLUE BLUE GRAY GRAY... -
Page 12: This Warranty Does Not Cover
3. This warranty gives you specific legal rights and you may have other rights, which vary from state to state ARMEDICA™ does not authorize any person or dealer to create for it any other obligations or liabilities in connection with the sale of the tables. Any representation or agreement not contained in this warranty shall be void.
