- Page 1 This manual has been prepared for the owners and operators of the ARMEDICA™ AMTM-700 Series Parallel Bars and contains installation instructions, precautionary instructions and maintenance procedures for the following model numbers: AMTM-700, AMTM-702, AMTM-703, AMTM-705, AMTM-706, AMTM-706HD...
-
Page 3: Table Of Contents

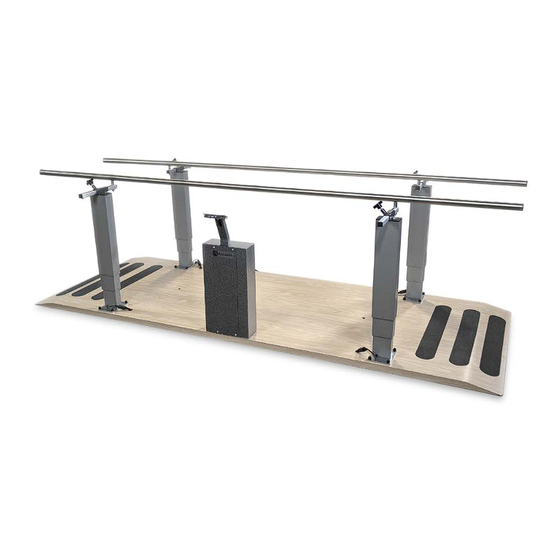

This User's Manual is for the following AM-700 series Parallel platforms only AMTM-700 - Electric platform 10'x43" AMTM-702 - Electric platform 7'x43" AMTM-703 - Electric platform 15'x43" AMTM-705 - Electric bariatric platform 10'x49-1/2" AMTM-706 - Electric bariatric platform 10'X49-1/2" WARNING: Read and understand this user's manual before installing or using this equipment. -
Page 4: Symbols And Indicators
SYMBOLS and INDICATORS WARNING: Read and understand the operating instructions listed in this manual before installing or using this equipment. Failure to follow manufacturer's operating instructions could result in equipment damage or personal injury. ATTENTION: Important information or instructions. WARNING: Follow safe lifting procedures and precautions. WARNING: Identifies electrical shock hazard. -
Page 5: Definitions
DEFINITIONS The AMTM-700 Series Electric Parallel Bars are a Class 1 medical device in respect to the use of an earthed ground as a means of protection against electric shock. Intended use: The AMTM-700 Series Electric Parallel Bars is intended for medical rehabilitation purposes and, to be used in conjunction with other forms of exercise, as a stability aid in standing, walking and balance exercises. - Page 6 Applied part: An applied part is one specifically intended to come into direct contact with patient during normal use. This includes Armedica part #'s 28442, 28443, 28444, 14601, 14605, 14609, 14610 and 14615 only. Applied parts are...
- Page 7 AMTM SERIES ELECTRIC PARALLEL BARS WARNING: Read and understand this operator’s manual before installing or using this equipment. Failure to follow operating and maintenance instructions could result in equipment damage or personal injury. ELECTRIC PARALLEL BARS INSTALLATION ALL MODELS WARNING: 4 people are required to move this equipment. This unit weighs in excess of 500lbs/227kg.
- Page 8 SCU CONTROLLER 1. TP4 Power Supply 2. TC8 Control Unit 3. EMI Filter 4. Protective Earth Ground 5. AC Mains Port 6. DC Power Supply Port 7. Operator Interface Port 8. Ferrite Filter 9. Column Motor Port 1 10. Column Motor Port 2 11.
- Page 9 CABLE CONNECTIONS • Connect the four cables (36 & 37) (DIN8 connectors) to the appropriate column (13) and snap coupling lock closed. • Remove cable retainer bracket from the ports on the TC8 controller by gently prying loose and set to the side. Replace bracket after ALL cables are connected. •...
-
Page 10: Operating Instructions
INTENDED POSITIONS Patient position Operator position This unit has been initialized by Armedica Manufacturing Corp. prior to shipment and should not need to be synchronized again unless a column or control box is replaced. If Synchronization becomes necessary, follow these steps: INITIAL RESET FOR MOTORS •... -
Page 11: Maintenance
ARMEDICA™ Manufacturing thoroughly inspects and tests each unit to ensure that it meets all ARMEDICA™ quality standards before it leaves the facility. To ensure the longevity of your device, routine maintenance should be followed. - Page 12 Service to controls and column motors is to be done by the manufacturer only. In the event of a column motor or control unit failure, all 4 columns and control unit must be returned to Armedica Manufacturing Corp. All other service or repair is to be performed by Armedica Mfg.
-
Page 13: Technical Specifications
Operating/storage temp. 5°C – 40°C / 41°F – 104°F Humidity: 5% to 85% Pressure/altitude: 700hPa to 1060hPa GENERAL SPECIFICATIONS Manufactured and assembled by Armedica Manufacturing Corp. Greenwood, Arkansas, USA Tel.: (479) 996-2612 Static & Dynamic load capacity Max 500Lbs/227Kgs per bar, not exceeding 500Lbs/227Kgs total combined load. - Page 14 ITEM NO. PART NO. DESCRIPTION AMTM MODEL # 14601 BD PLL COLMN PLATFORM 10' LAMNTD PLATE 4.5x6.5 PLL COLMN MNT PLTD 28156 SCREW FLT HD SOC M10-1.5X25 03580 11601 TUBE 1x1x14GAx13 PLL RAIL ATTACH 02146 SPACER 5/16 X 3/16 ID x 1/2 OD 02093 NUT NYLOCK 8-32 13601...
- Page 20 AM-715 BALANCE BEAM PART ITEM NO. DESCRIPTION QTY. NUMBER 14604A BD PLL BAL BEAM 2-1/2X5X80 13003A SCREW 3/-16x3 MODIFIED 2-3/8 PIN AM-714 ABDUCTION BOARD ITEM NO. PART NUMBER DESCRIPTION QTY. 14603A BD PLL ABDUCTION 3/4X5X94 18667 BRKT YOKE PLL BD PIN PLTD 02044 SCREW HX HD CAP 1/4-20x1-1/4 02084...
-
Page 22: Maintenance Log
MAINTENANCE NAME DATE PERFORMED MAINTENANCE PERFORMED... - Page 24 ARMEDICA™ Manufacturing Corp. or the selling Dealer will repair or replace the unit without charge within a 30 day period from the date on which the unit is returned to ARMEDICA™ Manufacturing Corp. or the selling Dealer. ARMEDICA™ Manufacturing Corp. has a policy of continuous improvement that may result in changes to specifications at any time.
