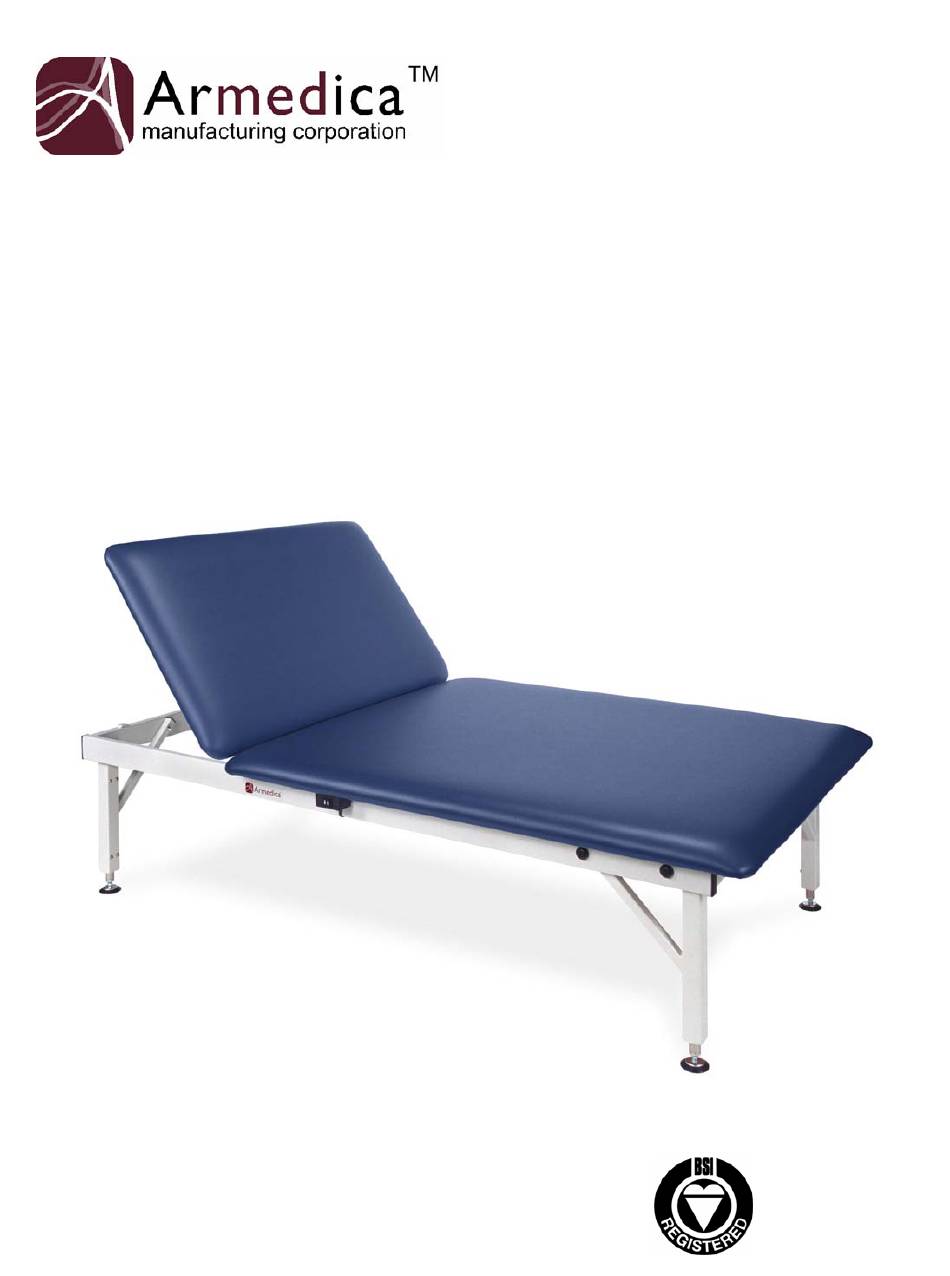

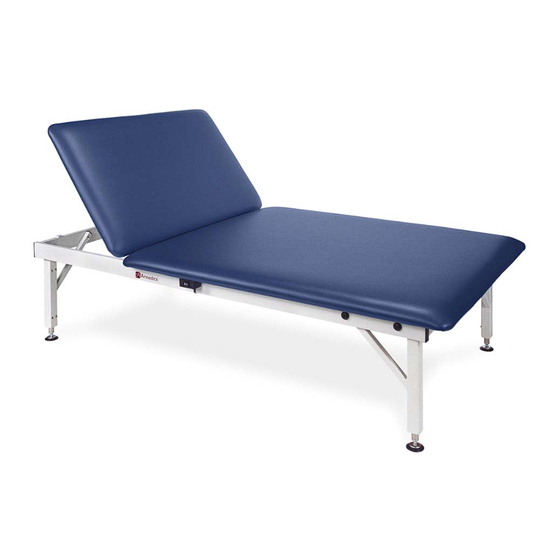

This manual has been prepared for the owners and operators of the
ARMEDICA™ AM-Series Mat Tables.
It contains installation
instructions, precautionary instructions and maintenance procedures
for the following model numbers:
AM-640, AM-641, AM-642, AM-643, AM-644,
AM-645, AM-650, AM-652 AM-654,
AM-660, AM-662, AM-664
ISO 13485
FM 50089
.
Made in the U.S.A
Advertisement
Table of Contents
Related Manuals for Armedica AM-Series
Summary of Contents for Armedica AM-Series
- Page 1 This manual has been prepared for the owners and operators of the ARMEDICA™ AM-Series Mat Tables. It contains installation instructions, precautionary instructions and maintenance procedures for the following model numbers: AM-640, AM-641, AM-642, AM-643, AM-644, AM-645, AM-650, AM-652 AM-654, AM-660, AM-662, AM-664...
- Page 2 INSTALLATION INSTRUCTIONS FOR ARMEDICA MAT PLATFORM TABLES Remove the mat platform from the carton, leaving the foam covering on the upholstered top. Place the platform top with the bottom side up on a clean, smooth surface and remove the wood packing frame and strapping from the motor on electric models. On adjustable models with a manual crank, remove strapping and install the unit referring to the picture of model AM-642.
-
Page 3: Operating Instructions
OPERATING INSTRUCTIONS To adjust the height of the Armedica Power Mat Platform, a low voltage toggle switch or optional foot switch is used to activate the motorized hydraulic pump. The up or down motion is clearly indicated by arrows. The motors are equipped with a thermal cutoff that protects them from overheating. - Page 4 PARTS LIST QTY FOR POWER QTY FOR MANUAL QTY FOR FIXED QTY FOR 4x7 AJD BACK ITEM PART # DESRIPTION 4x7 5x7 4x7 5x7 6x8 POWER MANUAL FIXED 02004 SPRING GAS HY3 VARILOCK 02036 SCREW BTN HD SOC 1/4-20x3/8 02046 SCREW HX HD CAP 1/2-13x2 02047 SCREW HX HD CAP 1/2-13x2-3/4 02050 SCREW HX HD CAP 5/16-18x1-3/4 02054 SCREW HX HD CAP 1/4-20x1-3/4...
- Page 5 MAT PLATFORM AM-644, AM-654, AM-664 MAT PLATFORM AM-642, AM-652, AM-662...
- Page 6 MAT PLATFORM AM-640, AM-650, AM-660...
- Page 7 MAT PLATFORM AM-641, AM-643, AM-645...
- Page 8 ™ ARMEDICA Manufacturing Corp. warrants that the AM-Series Mat Platforms are free from defects in material and workmanship. This warranty shall remain in effect for 18 months from the date of original consumer purchase of the product. The Hydraulic units on the Power Mat Platforms and Adjustable Mat Platforms are warranted to be free from defects in materials and workmanship for 18 months from the date of original consumer purchase of the product.
