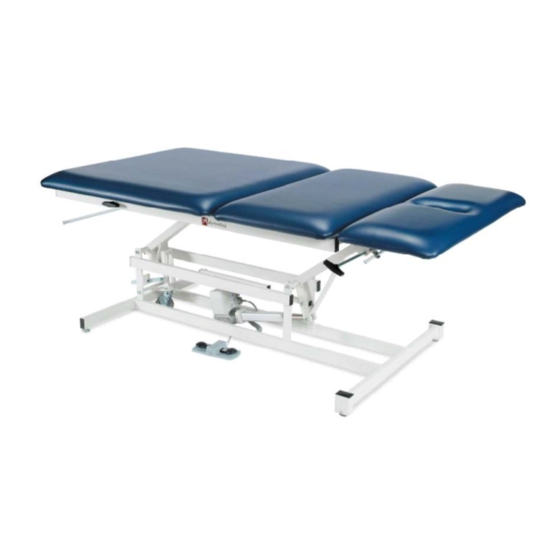

This manual has been prepared for the owners and operators
of the ARMEDICA™ AM-Series Hi-Lo Treatment Tables. It
contains installation instructions, precautionary instructions
and maintenance procedures for the following model numbers:
AM-100, AM-150, AM-200, AM-250,
AM-300, AM-350, AM-353, AM-400,
AM-450, AM-500, AM-550
ISO 13485
FM 50089
.
Made in the U.S.A
Advertisement
Table of Contents
Related Manuals for Armedica AM Series
Summary of Contents for Armedica AM Series
- Page 1 This manual has been prepared for the owners and operators of the ARMEDICA™ AM-Series Hi-Lo Treatment Tables. It contains installation instructions, precautionary instructions and maintenance procedures for the following model numbers: AM-100, AM-150, AM-200, AM-250, AM-300, AM-350, AM-353, AM-400, AM-450, AM-500, AM-550...
- Page 2 7. Never leave patient unattended. OPERATING INSTRUCTIONS To adjust the height of the ARMEDICA™ Treatment Tables, a low voltage hand switch or foot switch is used to activate the electric motor assembly. The up or down motion is clearly indicated by arrows.
- Page 3 Check hand switch or foot switch to be sure it is plugged in. D. Thermal cutout may have activated. Allow the motor to cool. In the event there is a failure of the motor, the motor must be returned to Armedica Mfg. Corp. The motor must be serviced by the manufacturer.
- Page 4 PARTS LIST ITEM NO. PART NO. DESCRIPTION QUANTITY 100 200 300 350 400 500 150 250 353 450 550 18107 BASE FRAME 02025 BOLT SHOULDER M 12x50 03105 MOTOR MAX65 8000N 120V 02015 BOLT SHOULDER 1/2x1/2 03015 PLUG 1x2 03020 PLUG 1-1/2x2-1/2 02010 BOLT SHOULDER 5/16x1-1/2...
- Page 5 PARTS LIST ITEM NO. PART NO. DESCRIPTION QUANTITY 100 200 300 350 400 500 150 250 353 450 550 14800 UPHOLSTERED ARMREST RIGHT 14802 UPHOLSTERED HEAD BOARD 500 18150 HEAD SECTION FRAME 500 02044 SCREW HEX HEAD 1/4-20x1-1/4 02143 FENDER WASHER 1/4"IDx1"OD 02042 BUTTON HEAD SCREW 1/4-20x1/2 02175...
- Page 6 TABLE BASE AM SERIES...
- Page 7 TOP FRAME AM-100 TOP FRAME AM-200...
- Page 8 TOP FRAME AM-300...
- Page 9 TOP FRAME AM-350...
- Page 10 TOP FRAME AM-400...
- Page 12 3. This warranty gives you specific legal rights and you may have other rights, which vary from state to state ARMEDICA™ does not authorize any person or dealer to create for it any other obligations or liabilities in connection with the sale of the tables. Any representation or agreement not contained in this warranty shall be void.
