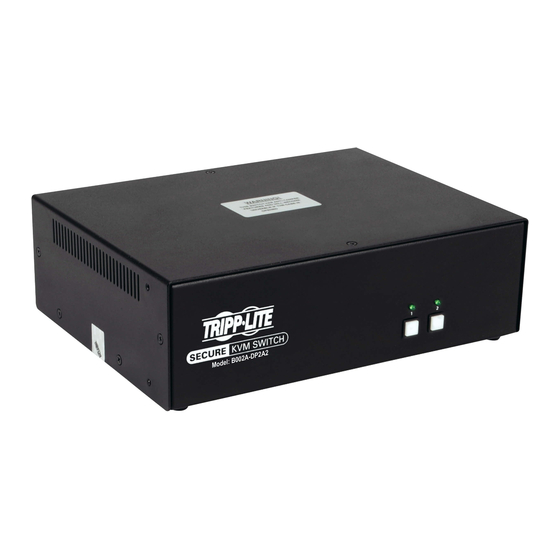

Owner's Manual
Secure KVM Switches,
NIAP Protection Profile Version 3.0
B002-DP1A4, B002-DP2A4, B002-DP2AC4
B002A-DP2A2, B002A-DP2AC2, B002A-DP1AC8
B002-DV1A2, B002-DV1A4, B002-DV1AC4,
B002-DV1AC8, B002-DV2A4, B002-DV2AC4
Este guía esta disponible en español en la página de
Ce guide est disponible en français sur le site Web de
Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector—a $100 value!
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
DisplayPort Models:
DisplayPort Models:
DVI Models:
HDMI Models:
B002A-UH2A2, B002A-UH2AC2,
HDMI Models:
B002A-UH2A4, B002A-UH2AC4
B002-HD1AC4 & B002-HD2AC4
Tripp Lite: www.tripplite.com/support
Tripp Lite : www.tripplite.com/support
PROTECT YOUR INVESTMENT!
www.tripplite.com/warranty
Copyright © 2018 Tripp Lite. All rights reserved.
1
8/10/2018 2:43:5
Advertisement
Table of Contents
Related Manuals for Tripp Lite B002A-DP2A2
Summary of Contents for Tripp Lite B002A-DP2A2
- Page 1 Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a $100 value! www.tripplite.com/warranty 1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support Copyright © 2018 Tripp Lite. All rights reserved. 260-933845-EN.indd 1 54 PM 8/10/2018 2:43:5...
-
Page 2: Table Of Contents
Optional Accessories ..................3 for a period of three (3) years from the date of initial purchase. TRIPP LITE’s obligation System Requirements ........4 System Requirements .................. -
Page 3: Package Includes
Package Includes • B002-Series Secure KVM Switch • B002A-Series Secure KVM Switch • 12V 2A* External Power Supply • 12V 2A* External Power Supply • Owner’s Manual • Owner’s Manual *B002-DV1AC8 includes a 12V 3A external power supply *B002-DP1AC8 includes a 12V 3A external power supply Optional Accessories •... -
Page 4: System Requirements
*Requires DVI-enabled KVM with a DVI-to-VGA adapter. *Wireless keyboard and mouse are not supported **Wireless keyboard and mouse are not supported **Requires an HDMI to DVI Adapter, such as Tripp Lite’s P130-000 Features • Certified to NIAP / Common Criteria Protection Profile for Peripheral •... -
Page 5: Features
Features • Protected Firmware - The unit features special protection that prevents reprogramming or reading firmware, protecting against attempts to alter the logic of the KVM. • High Isolation on USB Channels - Opto-isolators are used to keep USB data paths electrically isolated from each other, preventing data leakage between ports. -
Page 6: Important Safety Instructions
• To help protect your system from sudden transient increases and decreases in electrical power, it is recommended you plug your devices into a Tripp Lite Surge Protector, Line Conditioner, or Uninterruptible Power Supply (UPS). 260-933845-EN.indd 6... - Page 7 Important Safety Instructions • When connecting or disconnecting power to hot-pluggable power supplies, observe the following guidelines: o Install the power supply before connecting the power cable to the power supply. o Unplug the power cable before removing the power supply. o If the system has multiple power sources, disconnect power from the system by unplugging all power cables from the power supplies.
-
Page 8: Installation
Important Safety Instructions • This device is equipped with a three-wire grounding-type plug. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician to replace your outlet with one that will accept this type of plug. -
Page 9: Installation
Note: CAC readers with external power sources are not supported. 8. Power on the KVM by connecting the included external power supply and plugging it into a Tripp Lite Surge Protector, Power Distribution Unit (PDU), or Uninterruptible Power Supply (UPS). -
Page 10: Kvm Leds
KVM LEDs Port Selection LEDs • When the LED is off, the corresponding port is not currently selected. • When the LED is on, the corresponding port is currently selected. • When the LED is flashing, the EDID Learn process is occurring. Push-Button LEDs •... -
Page 11: Edid Learn
EDID Learn KVM models with HDMI video output are designed to learn the connected KVM models with DVI-I and HDMI video output are designed to learn the monitor’s EDID upon power up. In the event of connecting a new monitor to connected monitor’s EDID upon power up. -
Page 12: Edid Learn
EDID Learn Important Safety Instructions 8. Once downloaded, run the Administration and Security Management • This device is equipped with a three-wire grounding-type plug. This is a Tool executable file. The Administration and Security Management safety feature. If you are unable to insert the plug into the outlet, contact screen will appear. -
Page 13: Enabling Cac Functionality
Miscellaneous KVM Functionality Note: The following steps are intended for the system administrator only. Disabling CAC Functionality To disable CAC for any port on the KVM switch (all CAC ports are enabled as default), use the front panel push-buttons to switch the KVM to the port whose CAC mode you wish to change. - Page 14 Miscellaneous KVM Functionality 2. Initiate the session by pressing the following hotkey command, one key after another. [Alt][Alt][c][n][f][g] 3. Upon completing the command, the mouse connected to the KVM will stop functioning. A prompt will appear to enter the Credential ID. 4.
-
Page 15: Auditing: Dumping The Event Log
Miscellaneous KVM Functionality AUDITING: Dumping the Event Log Note: The following steps are intended for the system administrator. The Event Log is a detailed report of critical activities stored in the KVM or KVM memory. To view or dump the Event Log, follow the instructions below. Note: Only one computer connected to port 1 is required for this operation. - Page 16 Miscellaneous KVM Functionality RESET: Restore Factory Defaults RESET: Restore Factory Defaults Note: The following steps are intended for the system administrator. Note: The following steps are intended for the system administrator. Restore Factory Defaults will reset all settings on the KVM to their original Restore Factory Defaults will reset all settings on the KVM to their original state: state:...
-
Page 17: Power Up Self-Test
Check if any of the front panel power selection buttons are jammed. In this case, release the jammed button and recycle power. If Power Up Self-Test continues to fail, contact Tripp Lite Technical Support at www.tripplite.com/support. - Page 18 TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. TRIPP LITE’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products.
- Page 19 260-933845-EN.indd 23 53 PM 8/10/2018 2:43:5...
- Page 20 1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support 18-06-260 93-3845_RevB 260-933845-EN.indd 24 8/10/2018 2:43:5 18-06-2...
