DVI Dual Link/USB
KVM Switch with Audio and
Peripheral Sharing
Models: B004-DUA2-HR-K, B004-DUA4-HR-K
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
14-03-189-93334F.indd 1
Owner's Manual
Table of Contents
Copyright © 2014 Tripp Lite. All rights reserved.
15
16
17
18
1
2
2
2
2
3
6
7
8
4/18/2014 4:43:56 PM
Advertisement
Table of Contents
Related Manuals for Tripp Lite B004-DUA2-HR-K
Summary of Contents for Tripp Lite B004-DUA2-HR-K
-
Page 1: Table Of Contents
Features Safety Instructions Installation Basic Operation Firmware Upgrade Utility Factory Default Settings Specifications Warranty & Warranty Registration 1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support Copyright © 2014 Tripp Lite. All rights reserved. 14-03-189-93334F.indd 1 4/18/2014 4:43:56 PM... -
Page 2: Package Contents
• 3.5 mm Mini Stereo microphone and speaker jacks (If using the audio feature) *Requires an adapter, such as Tripp Lite’s P556-Series DVI to VGA adapter cables. Note that the included DVI cables and cable kits are DVI-D only, and cannot be converted to VGA using an adapter. Video from a VGA computer will only display if a VGA monitor is connected. -
Page 3: Features

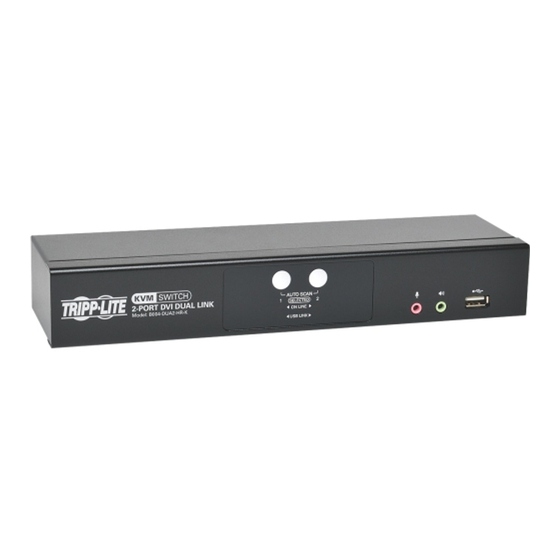

Features • 2-Port DVI Dual Link/USB KVM switch with 7.1 channel surround-sound audio and USB 2.0 peripheral sharing (B004-DUA2-HR-K) • 4-Port DVI Dual Link/USB KVM switch with 2.1 channel surround-sound audio and USB 2.0 peripheral sharing (B004-DUA4-HR-K) • Built-in 2-Port USB 2.0 hub allows USB devices to be shared amongst computers connected to the KVM switch • 3.5 mm Mini Stereo Speaker and Microphone jacks allow a single microphone to provide audio input to each of the connected computers, and let you listen to the audio output of each computer on a single set of speakers • B004-DUA2-HR-K features additional audio jacks for use with 7.1 channel surround-sound • An additional set of console audio jacks are conveniently located on the front panel of the KVM switch, making them ideal for use with IP phones • The KVM, USB and Audio can be switched independently of each other • Features mouse port switching functionality*, which allows users accessing the KVM switch with a scroll mouse to switch between ports by double-clicking the mouse’s scroll wheel • Switch between connected computers via front panel pushbuttons, keyboard hotkeys, and the mouse switching function* • Auto Scan mode allows you to scan the connected computers without having to manually switch between them • Supports both analog and digital video signals, allowing for the connection of a VGA computer and/or monitor with a DVI to VGA adapter • Supports digital video resolutions up to 2560 x 1600 and analog video resolutions up to 2048 x 1536 • Multi-platform support – Compatible with Windows, Mac, Sun and Linux • Supports hot-plugging – Computers and devices can be unplugged and re-plugged without having to shut down the KVM switch • The KVM switch stores the monitor’s EDID (Extended Display Identification Data) to optimize... -
Page 4: Front Panel
Features Front Panel Note: The B004-DUA4-HR-K is shown below, but the only difference between it and the B004-DUA2-HR-K are the number of ports. Port Selection Pushbuttons: Pressing a pushbutton will bring the focus of the KVM only, Audio only, or the KVM, Audio and USB simultaneously. See the Manual Pushbutton Switching section for details. Port LEDs: Each port contains a set of Orange and Green LEDs. The Orange LED is on top, and represents the status of the KVM. The Green LED is on bottom, and represents the status of the USB 2.0 hub ports. Listed below are descriptions of the different statuses indicated by the... -
Page 5: Back Panel
Features Back Panel Note: The B004-DUA4-HR-K is shown below. It differs from the B004-DUA2-HR-K in the number of CPU ports, and the number of audio jacks per port. The B004-DUA2-HR-K supports 7.1 channel surround-sound audio, whereas the B004-DUA4-HR-K supports 2.1 channel surround-sound audio. -
Page 6: Safety Instructions
Safety Instructions • Read all these instructions. Save them for future reference. • Follow all warnings and instructions marked on the device. • Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. • Do not use the device near water. • Do not place the device near, or over, radiators or heat registers. The device cabinet is provided with slots and openings to allow for adequate ventilation. To ensure reliable operation, and to protect against overheating, these openings must never be blocked or covered. • The device should never be placed on a soft surface (bed, sofa, rug, etc.) as this will block its ventilation openings. Likewise, the device should not be placed in a built-in enclosure unless adequate ventilation has been provided. • Never spill liquid of any kind on the device. • Unplug the device from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. • The device should be operated from the type of power source indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company. • Do not allow anything to rest on the power cord or cables. Route the power cord and cables so that they cannot be stepped on or tripped over. • If an extension cord is used with this device, make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes. • Position system cables and power cables carefully; be sure that nothing rests on any cables. • To help protect your system from sudden transient increases and decreases in electrical power, it is recommended that you plug your devices into a Tripp Lite surge suppressor, line conditioner, or uninterruptible power supply (UPS). • When connecting or disconnecting power to hot-pluggable power supplies, observe the following guidelines: o Install the power supply before connecting the power cable to the power supply. -
Page 7: Installation
Refer to the following steps and diagram to set up your KVM switch installation. Note: 1. The diagram below shows a B004-DUA4-HR-K installation. A B004-DUA2-HR-K installation will contain fewer CPU ports, and will allow for the connection of a 7.1 channel surround-sound system. 2. Before making any connections, make sure that power to all devices being connected to the KVM switch is turned off. -
Page 8: Basic Operation
Basic Operation Powering Off and Restarting In the event that you need to power off the KVM switch, you must follow the steps below: 1. Shut down all computers connected to the KVM switch 2. Unplug the power supply from the KVM switch 3. Wait 10 seconds and then plug the power supply back into the KVM switch 4. Power on all of the connected computers Port Switching There are three ways of accessing computers and devices connected to the KVM switch: • Manual Pushbuttons • Mouse Port Switching Functionality • Hotkey Commands Manual Pushbuttons Pressing a pushbutton will bring the focus of one of the following to the corresponding port; KVM only, Audio only, or KVM, Audio and USB focus simultaneously. There are two sets of pushbutton commands, Default and Alternative, which can be toggled between via hotkey command (See the Alternative Pushbutton Command section of the manual for details). Default Pushbutton Commands • Press and hold a pushbutton for more than two seconds to bring only the focus of the KVM to the corresponding port. The focus of the Audio and USB will remain on the port they were connected to. -
Page 9: Hotkey Commands
Hotkey Commands Keyboard hotkey commands allow you to switch the KVM functionality between ports using only the keyboard. You can switch the KVM, Audio and USB all at the same time, or each one can be switched individually. You can therefore have the KVM focus on one computer, while the USB Hub ports are being accessed by a second computer, and Audio from a third computer is playing. In addition, there are keyboard hotkey commands that can be used to change settings on the KVM switch, such as enabling/disabling the Alternative Pushbutton Commands, initiating Firmware Upgrade Mode, etc. The following sections describe the hotkey functionality available for the B004-DUA2-HR-K and B004-DUA4-HR-K. Port Switching Hotkeys To switch functionality between ports, a keyboard hotkey command is entered that determines what port is accessed and which functionality is assigned to it. This command starts by pressing [Scroll Lock] [Scroll Lock] or [Ctrl] [Ctrl]. [Scroll Lock] [Scroll Lock] is used by default. To toggle between these two, see the Alternate Port Switching Hotkey Command section of this manual. The table below contains the Port Switching Hotkeys used to determine what port is accessed and which functionality is assigned to it. Note: The table below uses the [Scroll Lock] [Scroll Lock] preceding sequence. - Page 10 1. Activate Hotkey Setting Mode using the aforementioned command 2. Press and release the [H] key Alternate Port Switching Hotkey Command By default, the hotkey proceeding sequence used in Port Switching Hotkeys is [Scroll Lock] [Scroll Lock]. To toggle between [Scroll Lock] [Scroll Lock] and [Ctrl] [Ctrl], do the following: 1. Activate Hotkey Setting Mode using the aforementioned command 2. Press and release the [T] key Keyboard Operating System The B004-DUA2-HR-K and B004-DUA4-HR-K default keyboard configuration is for use with PC compatible keyboards. If you have a Mac or Sun computer, you can enable the KVM to emulate Mac or Sun keyboard commands. When enabled, your PC compatible keyboard can be used to perform commands specific to Mac or Sun (See the Keyboard Emulation section in this manual for details). To set the Keyboard Operating System, do the following: 1. Navigate to the port whose Keyboard Operating System setting you wish to change 2. Activate Hotkey Setting Mode using the aforementioned command 3. Press and release the [F2] (for Mac), [F3] (for Sun), or [F10] (for Auto-Detect) key 14-03-189-93334F.indd 10...
- Page 11 2. Press and release the [B] key Disable Port Switching Hotkeys By default, Port Switching Hotkeys are available that allow you to switch between ports. To disable the Port Switching Hotkeys and require the front panel pushbuttons to be used for switching functions, do the following: 1. Activate Hotkey Setting Mode using the aforementioned command 2. Press and release the [x] key and then press and release the [Enter] key Firmware Upgrade Mode The B004-DUA2-HR-K and B004-DUA4-HR-K firmware can be upgraded as updates become available on Tripp Lite’s website (See the Firmware Upgrade section in this manual for details). In order to perform a firmware upgrade, Firmware Upgrade Mode must first be initiated. To initiate Firmware Upgrade Mode, do the following: 1. Activate Hotkey Setting Mode using the aforementioned command 2. Key in the text upgrade 3. Press and release the [Enter] key The LEDs on the front of the KVM flash to indicate that Firmware Upgrade Mode has been initiated. Restore Default Settings To restore the KVM to its factory default settings, do the following: 1. Activate Hotkey Setting Mode using the aforementioned command...
- Page 12 Basic Operation Video Sync Video Sync allows the KVM to store the monitor’s EDID (Extended Display Identification Data), which helps to ensure that the optimal video settings are being used. To initiate a Video Sync, do the following: 1. Activate Hotkey Setting Mode using the aforementioned command 2. Press and release the [D] key Alternative Pushbutton Command Pressing one of the pushbuttons on the front of the KVM will bring the focus of one of the following to the corresponding port; KVM only, Audio only, or KVM, Audio and USB focus simultaneously. There are two sets of pushbutton commands, Default and Alternative (See the Manual Pushbuttons section of the manual for details). To toggle between these two, do the following: 1. Activate Hotkey Setting Mode using the aforementioned command 2. Press and release the [S] key Mouse Emulation By default, Mouse Emulation is enabled. To toggle mouse emulation on/off, do the following: 1. Activate Hotkey Setting Mode using the aforementioned command 2. Press and release the [M] key Mouse Port Switching...
- Page 13 Basic Operation Hotkey Setting Mode Command Summary Table Action Hotkey Command Activate Hotkey Setting Mode Press and hold the [Num Lock] key, press and release the minus [-] key, release the [Num Lock] key. Change Hotkey Setting Mode activation Activate Hotkey Setting Mode, [H] command to [Ctrl] [F12] Change the Port Switching Hotkey Command Activate Hotkey Setting Mode, [T] to [Ctrl] [Ctrl] Change the Keyboard Operating System Activate Hotkey Setting Mode, [F2] (for Mac), [F3] (for Sun), or [F10] (for Auto-Detect) List KVM Settings Open a Word, Wordpad, Notepad or Excel file, Activate Hotkey Setting Mode, [F4] USB Keyboard/Mouse Reset...
- Page 14 Basic Operation Sun Keyboard Emulation The PC compatible (101/104 key) keyboard can emulate the functions of the Sun keyboard using the PC keystrokes in the table below. Note: When more than one key is required on the PC Keyboard to emulate the Sun keyboard, press and release the first key, and then press and release the second key. PC Keyboard Sun Keyboard PC Keyboard Sun Keyboard...
-
Page 15: Firmware Upgrade Utility
Firmware Upgrade Utility As firmware upgrades become available, they can be found at www.tripplite.com/support. The Firmware Upgrade Utility comes with the firmware upgrade file. To upgrade the firmware of your KVM switch, follow the steps below: 1. From a computer that is not connected to your KVM switch, go to www.tripplite.com/support to obtain the firmware upgrade for your KVM switch, and save it to your computer. 2. Shut down all of the computers connected to the KVM switch. 3. Connect the USB Type A connector on one of the KVM cable kits to a USB port on the computer you downloaded the firmware upgrade to. Connect the Type B connector on the KVM cable kit to the USB port on CPU port 1 of the KVM switch. 4. Using the keyboard connected to the KVM switch, invoke Firmware Upgrade Mode via the Firmware Upgrade hotkey command (See Firmware Upgrade Mode in the Hotkey Setting Mode section of the manual for details). 5. On the computer the firmware upgrade file is saved to, run the Firmware Upgrade Utility file by double-clicking on it or by opening up a command line and typing in the path to it. 6. After reading the license agreement, click on the I Agree option and click Next. The Firmware Upgrade Utility main screen appears and displays the KVM switch in the Device List on the left side of the screen. -
Page 16: Factory Default Settings
Factory Default Settings Setting Default Port Switching Hotkey Command [Scroll Lock], [Scroll Lock] Hotkey Setting Mode Activation Command [Num Lock], [-] Keyboard Operating System Auto-Detect Hotkey Beeper Port Switching Hotkeys Enabled Keyboard Emulation Enabled Mouse Emulation Enabled Mouse Switching Function Disabled Power on Detection Enabled SPC Mode Disabled Keyboard Language English Auto Scan Interval 5 Seconds 14-03-189-93334F.indd 16 4/18/2014 4:44:00 PM... -
Page 17: Specifications
It is only compatible with 3-button scroll wheel mice. **The B004-DUA2-HR-K and B004-DUA4-HR-K include 2 sets of Speaker/Mic ports; (2) 3.5mm jacks on the front and (2) 3.5mm jacks on the back. The front panel ports take priority over the back panel. -
Page 18: Warranty & Warranty Registration
FCC Notice, Class B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment. WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union) Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to: • Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country) • Send the new equipment back for recycling when this ultimately becomes waste Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change without notice. 14-03-189-93334F.indd 18 4/18/2014 4:44:00 PM... - Page 19 Notes 14-03-189-93334F.indd 19 4/18/2014 4:44:00 PM...
