Installation Instructions

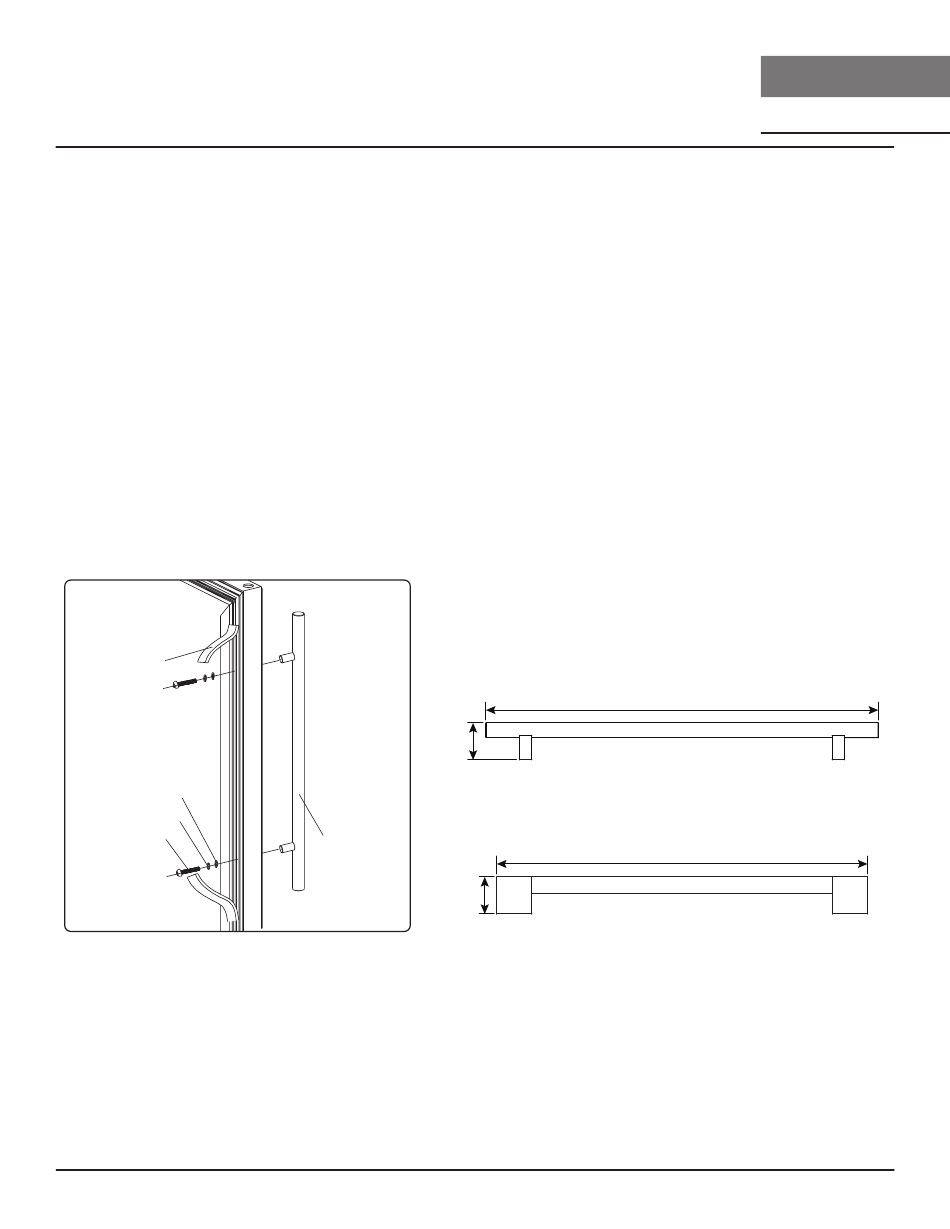

Installing the Handle

If an optional contemporary or pro handle is desired, refer below for the handle dimensions and part
number.
1. Confirm if the overlay panel has already been installed onto the unit. If not, refer to Overlay Panel
Installation to mount the overlay panel onto the unit.
2. Push aside the door gasket. Under the gasket you will see two designated holes for handle
installation. Mark handle hole locations on the overlay panel.
3. Remove overlay panel from door. Using 3/16" drill bit, create holes for handle screws.
4. Re-install overlay panel on the door.
5. Install the handle tightly as shown with two 1-1/2" machine screws.
NOTE: If using a custom handle, install the handle in the position of your choosing with counter sunk
screw holes prior to installing the overlay panel to door.
Gasket
Flat Washer
Locked Washer
Screw
20
2"
Handle
Door Frame
2"
PRB24C01BPG Use, Care, and Installation Guide
Zephyr Presrv Contemporary Handles
Part #: PRHAN-C101
Part #: PRHAN-C102
Part #: PRHAN-C104
23-
5/8
Zephyr Presrv Pro Handle
Part #: PRHAN-C001
22-
1/4
P R E S R V ™
B E V E R A G E
C O O L E R
S I N G L E ZO N E
Color: Stainless Steel
Color: Brushed Gold
Color: Matte Black
"
Color: Stainless Steel
"
