Installing The Handle - Zephyr Presrv PRB24C01CPG Use, Care And Installation Manual

Installation Instructions

Installing the Handle

If optional contemporary or pro handles are desired, refer below for the part numbers.
1. Confirm if the overlay panel has already been installed onto the unit. If not, refer to Overlay Panel
Installation to mount the overlay panel onto the unit.
2. Push aside the door gasket. Under the gasket you will see two designated holes for handle
installation. Mark handle hole locations on the overlay panel.
3. Remove overlay panel from door. Using 3/16" drill bit, create holes for handle screws.
4. Re-install overlay panel on the door.

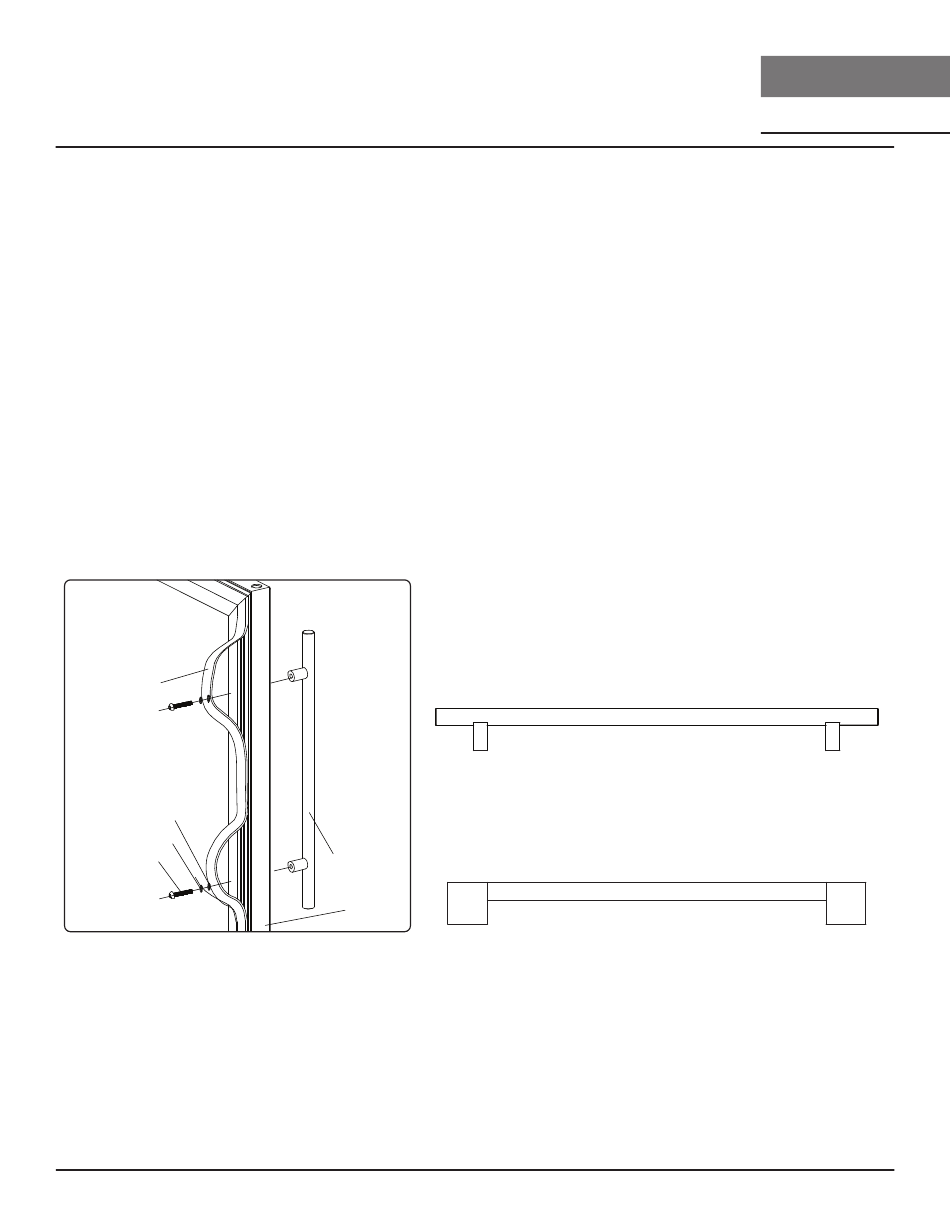

5. Install the handle tightly as shown with two 1-1/2" machine screws.
NOTE: If using a custom handle, install the handle in the position of your choosing with counter sunk
screw holes prior to installing the overlay panel to door.
Gasket
Flat Washer
Locked Washer
Screw
20
Zephyr Presrv Contemporary Handles
Part #: PRHAN-C101
Part #: PRHAN-C102
Part #: PRHAN-C104
Part #: PRHAN-C001
Handle
Door Frame
PRB24C01CPG Use, Care, and Installation Guide
Color: Stainless Steel
Color: Brushed Gold
Color: Matte Black
Zephyr Presrv Pro Handle
Color: Stainless Steel
P R E S R V ™
B E V E R A G E
C O O L E R
S I N G L E Z O N E
