Dynojet Power Commander V Installation Instructions Manual page 3

FIG.A
FIG.B
FIG.C
Unplug
14-001 www.powercommander.com
1
2
3
4
Ground wire
5
Remove the seat. Remove the tool kit.

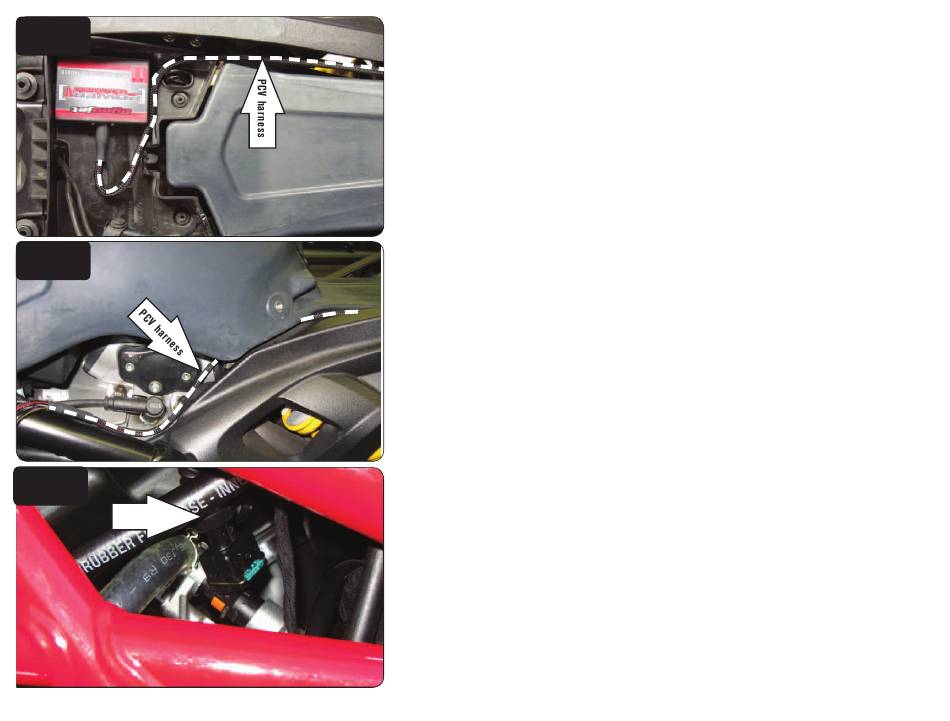

Install the PCV in the tool kit area using the supplied velcro. Use the alcohol
swab to clean both surfaces before attaching (Fig. A).
Route the PCV wiring harness down the left side of the bike.
Continue routing the PCV harness along left hand side of the frame (Fig. B).
Unplug the stock wiring harness from the rear injector (Fig. C).
This injector is located on the left hand side of the bike.
09-11 Ducati M696 PCV - 3
