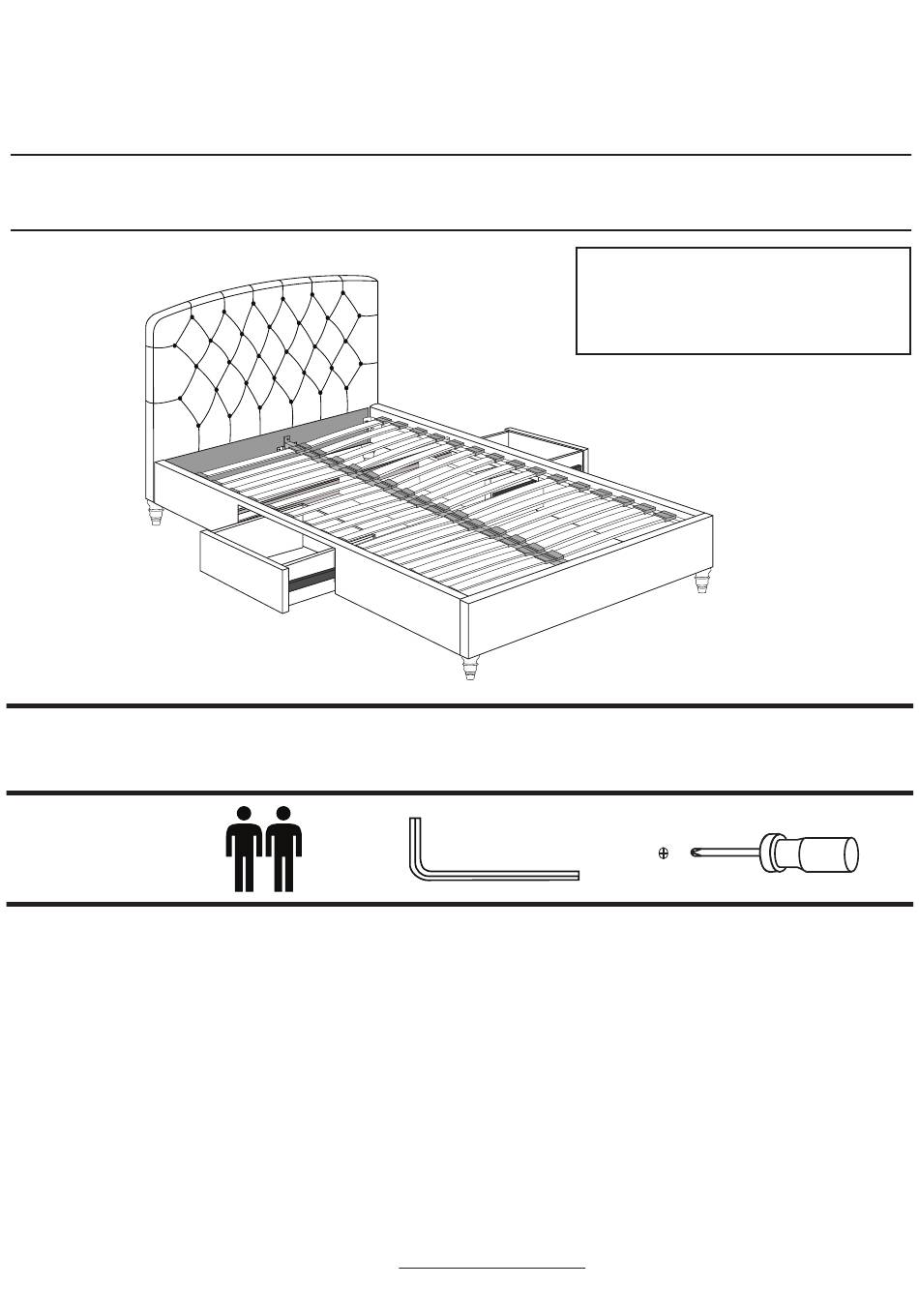

Thank you for purchasing this Rouen Storage Bed. Please read the instructions carefully before use to
ensure safe and satisfactory operation of this product.
PRE-ASSEMBLY PREPARATION
Please ensure instructions are read in full before attempting to assemble this product.
Necessary Tools
Please check the pack contents before attempting to assemble this product. A full checklist of components is
given in this leaflet. If any components are missing, please contact the John Lewis Helpline.
This product is HEAVY. It should be assembled as near as possible to the point of use. TAKE CARE WHEN
LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 90 MINUTES to assemble with 2 PEOPLE.
Do not use power tools to assemble.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.
Read this leaflet in full before commencing assembl
If you require any additional information or have any issues with this product please call the
John Lewis Helpline on 01244 689949 or email mail@fwgroup-uk.com
Rouen Storage Bed
y.
1/8
Stock code: 803/44304
Stock code: 803/44305
For product support or spare parts please call
the John Lewis Helpline;
E: mail@fwgroup-uk.com
T: 01244 689949
Advertisement
Related Manuals for John Lewis Rouen 803/44304
Summary of Contents for John Lewis Rouen 803/44304
- Page 1 Please check the pack contents before attempting to assemble this product. A full checklist of components is given in this leaflet. If any components are missing, please contact the John Lewis Helpline. This product is HEAVY. It should be assembled as near as possible to the point of use. TAKE CARE WHEN LIFTING to avoid personal injury and (or) damage to the product.
- Page 2 Fittings and parts checklist M4 Allen Key x 1 pcs M6 X 40mm Bolt x 8 pcs Screw 4 x 50mm x 4pcs M5 Allen Key x 1 pcs Centre Plastic Caps x 15 pcs Screw 3.5 x 30mm x 42pcs Side Plastic Caps x 30 pcs Nut M8 x 2 pcs Spring Washer M8 x 10 pcs...
- Page 3 Step One Place metal bracket on Side Rails (3) over pre-inserted bolts in Headboard (1) and Footboard (2) and hand-tighten to loosely secure parts together. Do not tighten bolts with M5 Allen Key (B) until you have inserted the Centre Rail in Step Four.
- Page 4 Step Three Attach Centre Support (8) to Bottom Supports (7) and secure into place using Screws 4 x 50mm (I) as shown in the diagram below. Screw 4 x 50mm (I) Screw 4 x 50mm (I) Screw Cross head Screw Driver 4 x 50mm x 4 Step Four Insert Centre Rail (5) into the brackets on the Headboard (1) and Footboard (2).
- Page 5 Step Five Insert the Front Legs (6)x2 into the pre-drilled holes on the underside of the Headboard (1) and twist to secure, as shown in the diagram below. Legs x 2 Step Six Attach the Metal Plate (15) to the bottom of the Footboard (2) using Bolts M6 X 25mm (G)x2. Do not tighten the bolts until you make adjustment for the screw hole at the Side Rail (3).
- Page 6 Step Seven Attach Metal Stopper (16) to the Bottom Support (7) using screw 4 x 18mm (M). Screw 4 x 18 (8) Metal Stopper x 4 Step Eight With the curved side facing upwards, insert 2 Slats (4) into a Centre Plastic Cap (C) followed by a Side Plastic Cap (D) onto the other end of both slats.
- Page 7 Step Nine To construct the drawers, fix Drawer Back (10) with one end of each Drawer Support (14) using Screws 3.5 x 30mm (J) as shown in Fig.1, then fix the Drawer Sides (9) to the Drawer Back (10). Next, insert Drawer Bottom (12) and then fix Drawer Front (11) using Screws 3.5 x 30mm (J) as shown in Fig.2.
-
Page 8: Care And Maintenance
Please be careful to retain all fittings when doing this. If you require any additional information or have any issues with this product please call the John Lewis Helpline on 01244 689949 or email mail@fwgroup-uk.com John Lewis Partnership 171 Victoria Street, London, SW1E 5NN.
