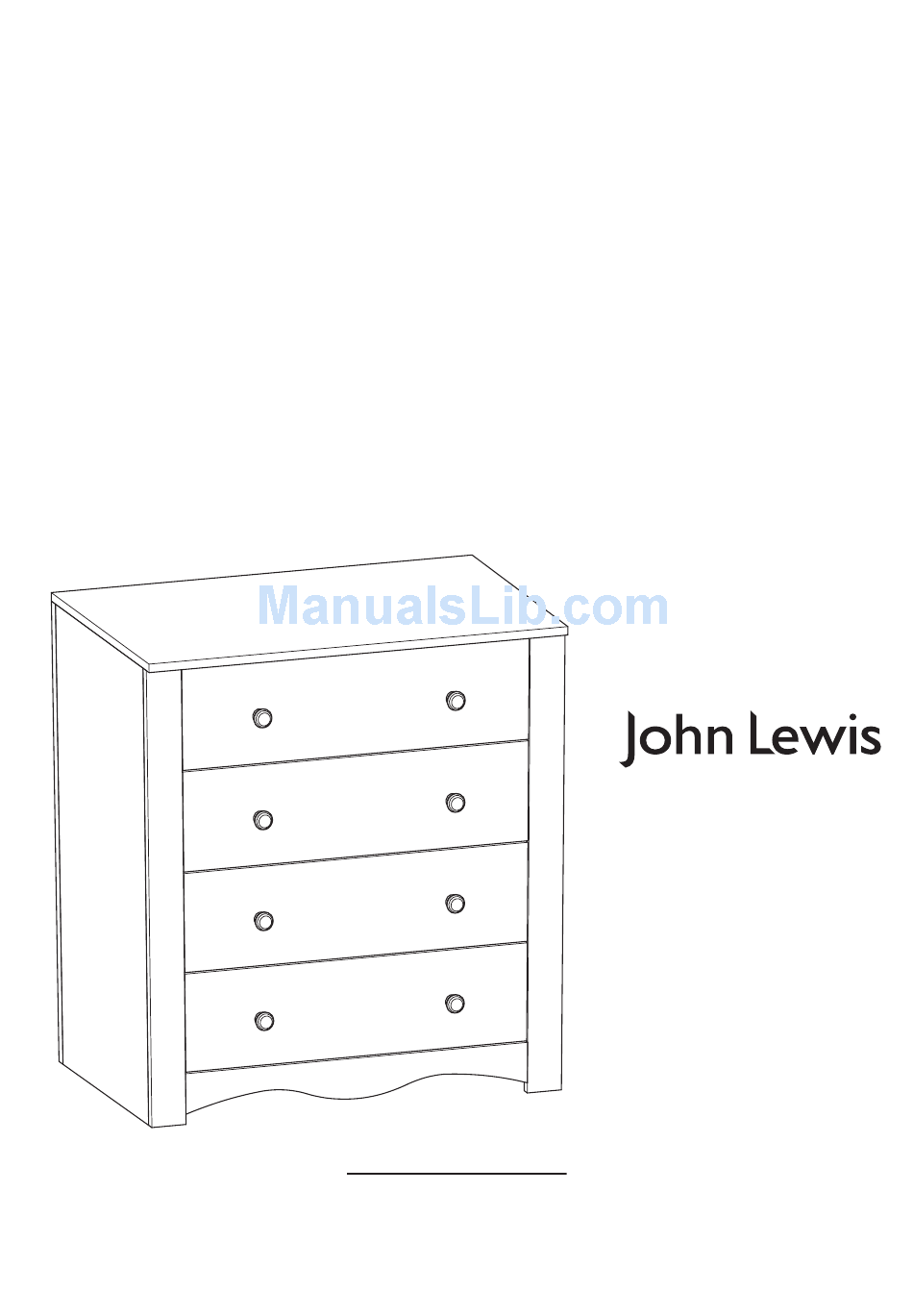

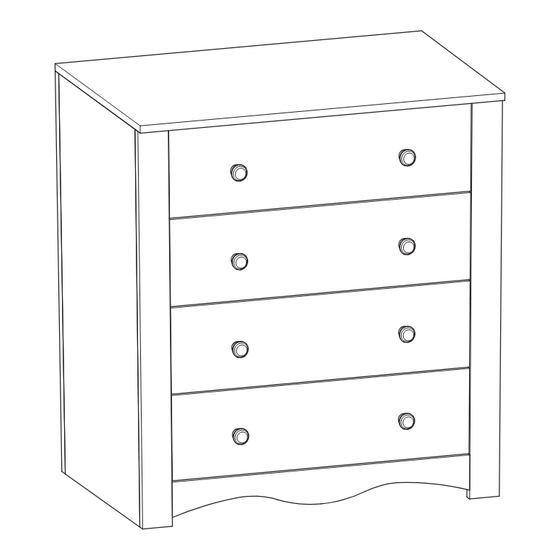

- Page 1 Rachel chest of drawers Instruction manual Important retaIn these InstructIons for future reference...
- Page 2 Thank you for purchasing this Rachel chest of drawers. Please read the instructions and warnings carefully before use to ensure safe and satisfactory operation of this product. Your child’s safety is your responsibility. If you have a query with this product or require replacement parts, please contact your nearest John Lewis department store.
- Page 3 Parts Lower Crossbar Bottom panel x 1 Top panel x 1 Side x 2 (F) x 1 Lower crossbar Top crossbar x 2 Mid crossbar x 1 Upper crossbar x 1 (R) x 1 Back panel with Drawer side Back panel x 1 Drawer front x 4 slot x 1 (4 x L, 4 x R)
- Page 4 Step 1 Part H x 2 Part G Fixing 1 Fixing 1 Part F Fixing 3 Part E Part D Push 8mm dowels (fixing 1) into the holes indicated in the ends of the Crossbars (Parts D,E,F,G and H). Push Camlock nuts (Fixing 3) into the large holes in Crossbars D,E,G and H and ensure that the arrow on the face of the Camlock nut points to the edge of the Crossbar where it attaches to the Side frame.
- Page 5 Step 3 Part H Part G Part H Part F Part E Part D Fit the Crossbars and secure by turning the Camlock nuts (Fixing 3) by approximately 1/2 turn until tight.
- Page 6 Step 4 Assembly from section 2 Fixing 5 Part B Attach the Bottom panel (Part B) to the assembly from section 2 using six M6 x 30mm bolts (Fixing 5) Step 5 Fixing 5 Fit the second Side (Part B) to the assembly, ensuring that the dowels and pins previously inserted fit correctly in the corresponding holes.
- Page 7 Step 6 Part A Fixing 1 Fixing 5 Push four Dowels (Fixing 1) into the shallow holes in the top faces of the Sides (Part C). and lower the Top panel (Part A) onto them, making sure that the Dowels are fully engaged in the Top panel and the Sides.
- Page 8 Step 8 Part O Part O Fixing 7 Part K Part L Fixing 4 Part L Part M Part N Fixing 7 To assemble the drawers, attach two Drawer sides (Part L) to a Drawer front (Part K), ensuring that the plastic wheel on the drawer runner is to the rear of the drawer as shown.
- Page 9 Your Rachel chest of drawers is supplied with a fixing kit which will secure it and help to guard against accidental tipping. The fixing kit can be found in a separate bag from the Drawer fixings. WARNING : Installation only to be carried out by a competent person.
- Page 10 Attach the Fabric strap to the wall at the previously marked position using one 20mm Screw, a Plastic washer and the appropriate wall fixing for your wall 20mm Screw as shown. Appropriate Plastic washer fixing Fabric strap Temporarily remove the top drawer. Move the chest of drawers back into position and thread the free end of the strap through the slot in the back panel.
-
Page 11: Care And Maintenance
Any additional or replacement parts can only be obtained from the retailer. Installation of the wall fixing strap is only to be carried out by a competent person. Check the suitability of the wall before fitting the retaining strap. John Lewis Partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com...
